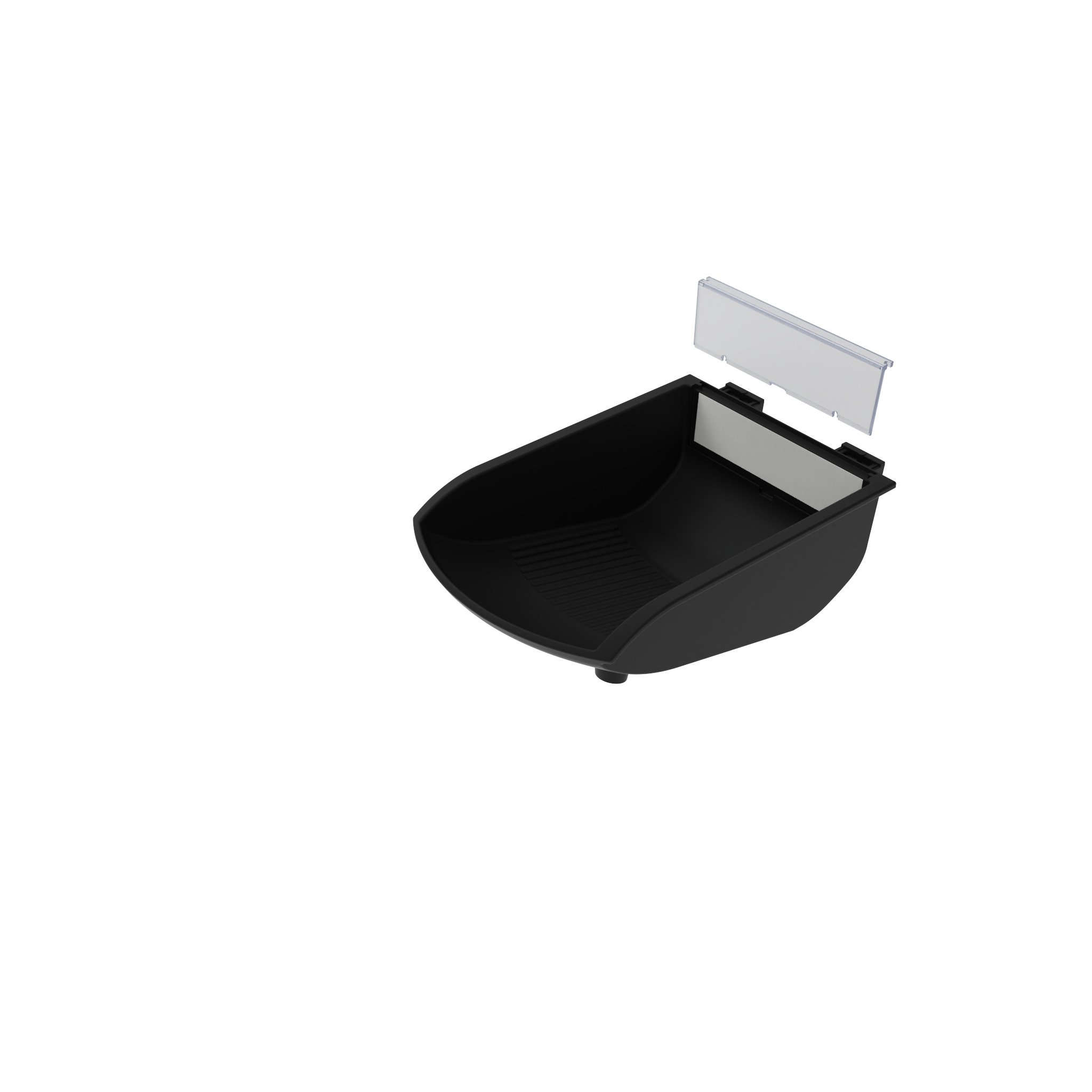

Grab Tray 105 x 130 x 50 for Profil Slot (Set)

Información sobre el producto "Grab Tray 105 x 130 x 50 for Profil Slot (Set)"

Color:
Grab tray: Black, yellow, red, blue, green, gray
Label window: Transparent

Países de Entrega:
En todo el mundo

Description:
To provide hardware and small parts on sorting area for selective grabbing of smallest components; simple assembly by swiveling into the profile slot; the clearly visible label area enables secure part identification

Material:
Grab tray standard version: Plastic PA, glass fiber reinforced
Grab tray ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Label window: Plastic PC
Label: Carton 250 g/m²
Bumper: Plastic PU, ≈ 65-70 Shore A

Set:
1 grab tray,
1 label window,
1 label,
4 bumper, self-adhesive

Especiales:
Otros colores bajo pedido

Zolltarifnummer:
39269097900
(ECLASS 6.0): 21100421
(ECLASS 7.0): 21100421
(ECLASS 8.0): 21100421
(ECLASS 9.0): 21100421
(ECLASS 10.0): 21100421
(ECLASS 11.0): 21102002
(ECLASS 12.0): 21102002
(ECLASS 13.0): 21102002
Cantidad por Paquete: 10 conjuntos
Model: Slot 8, 10
Peso (g): 106.1

Variantes

ID de producto ESD Ranura N (mm) Color
061MGT2D311N08 8 Amarillo ≈ RAL 1003
061MGT2D351N08 8 Azul ≈ RAL 5005
061MGT2D361N08 8 Verde ≈ RAL 6032
061MGT2D361N10 10 Verde ≈ RAL 6032
061MGT2D374N08 8 Gris ≈ RAL 7042
061MGT2D391N08 8 Negro
061MGT2D391N08ESD Descarga electrostática ESD 8 Negro
061MGT2D391N10 10 Negro
061MGT2D391N10ESD Descarga electrostática ESD 10 Negro
