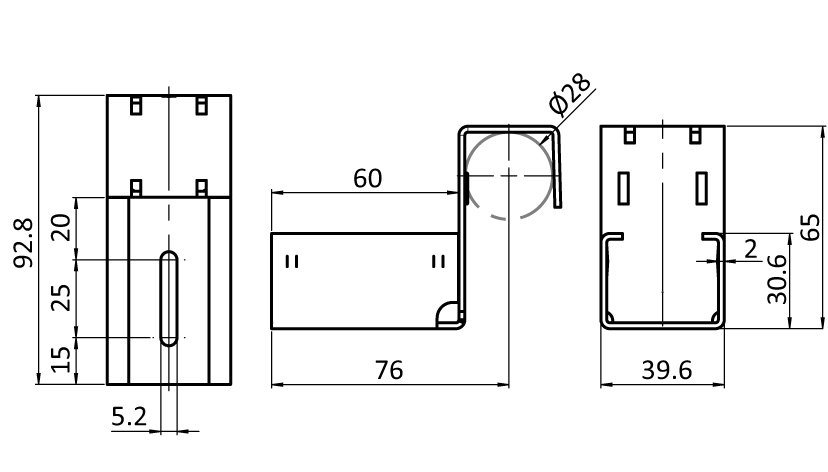

Holding Bracket XST D28

Descripción:
To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
Material:
Acero

Superficie:
Galvanizado

Especiales:
Otras superficies, otros colores bajo pedido

Países de Entrega:
En todo el mundo
Cantidad por paquete: 20 Stück
Model: For roller tracks XST
Peso (g): 135.8
Numero de ERP: 127717

Variantes

Número de producto Version Fig. CAD
Sin tope final ①
With end stop ②

Clasificación

Zolltarifnummer
73269098900

Certificados

Tags

Profile Type Profile Type B
Modular Dimension Modular Dimension D28
Profile Form Round Tubular Profiles
Application Area Industrial Work Stations, Intralogistics
