Hook-and-loop Block

Información sobre el producto "Hook-and-loop Block"

Color:
Cable binding block: Black
Hook-and-loop strap: Black

Países de Entrega:
En todo el mundo

Description:

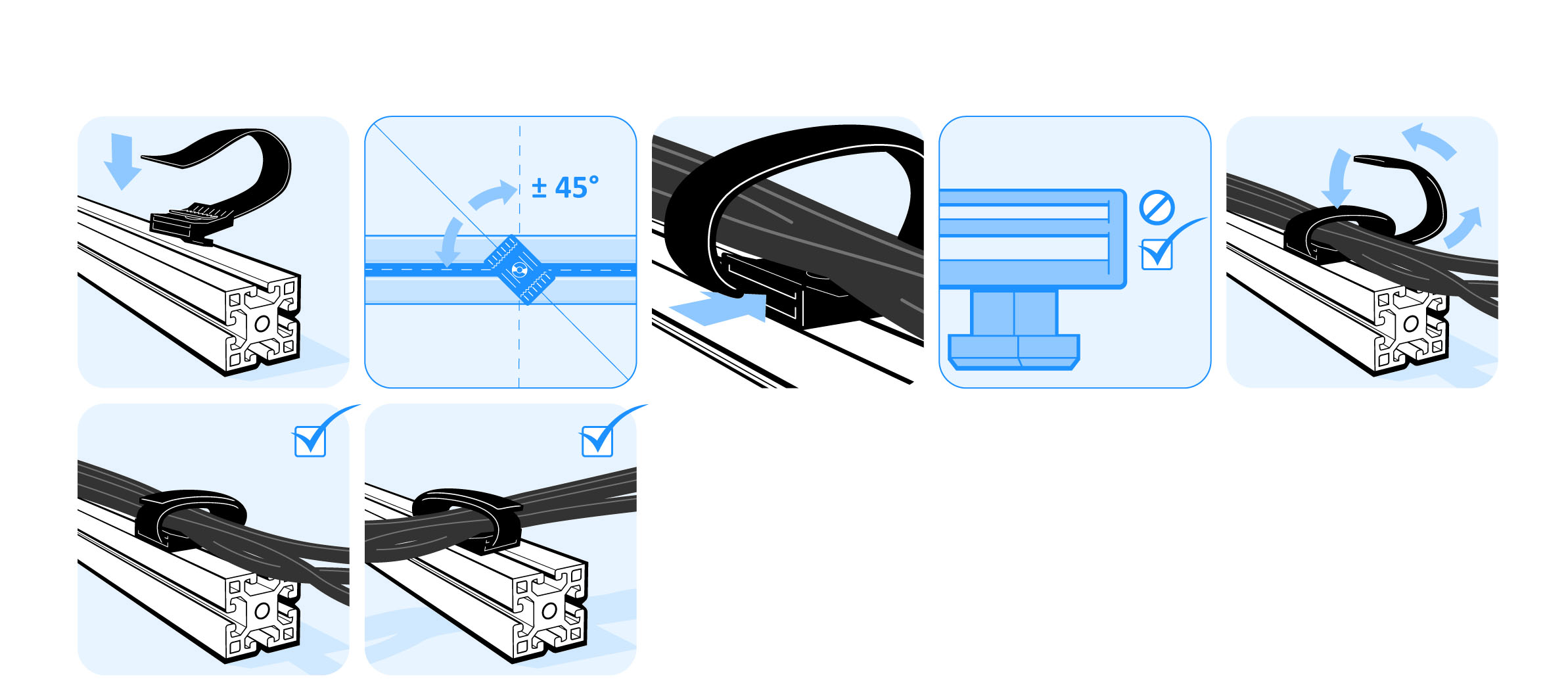

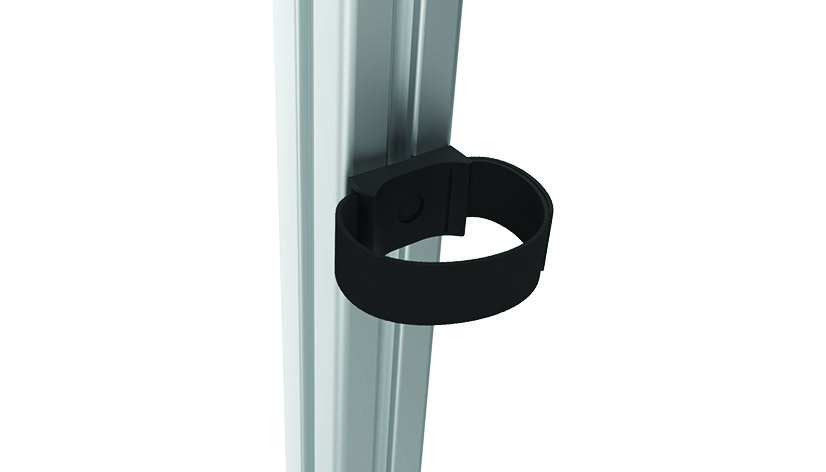

To fix cables to aluminum profiles in two directions without the need for cable ties, can be opened and closed again; can be mounted into the slot by an eight of a turn

Material:
Cable binding block: Plastic PA, glass fiber reinforced
Hook-and-loop strap: Plastic PP (UL94-V2)
PFA_Model: Plastic PA, Slot 8, 10
Cantidad por Paquete: 10 piezas
Número de Arancel Aduanero de Exportación: 39269097
Peso (g): 10.0
(ECLASS 6.0): 27140701
(ECLASS 7.0): 27140701
(ECLASS 8.0): 27140701
(ECLASS 9.0): 27140701
(ECLASS 10.0): 27140701
(ECLASS 11.0): 27140701
(ECLASS 12.0): 27140701
(ECLASS 13.0): 27140701
Numero de ERP: 146484
Zolltarifnummer: 39269097900

Variantes

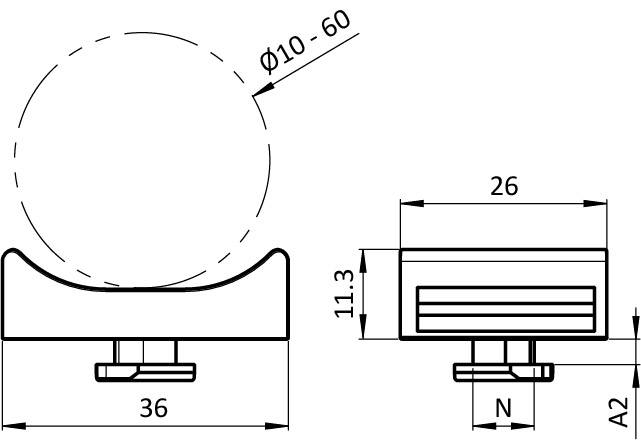

Número de producto ØD (mm) A2 (Profile) (mm) Slot N (mm) Profile
093803N08S01 10 - 60 4.6 (4.5) 8 I
093809N10S01 10 - 60 5.8 (6.0) 10 B
