Insert Profile AL

Información sobre el producto "Insert Profile AL"

Color:
Glazing strip: Gray ≈ RAL 7035

Países de Entrega:
En todo el mundo

Description:

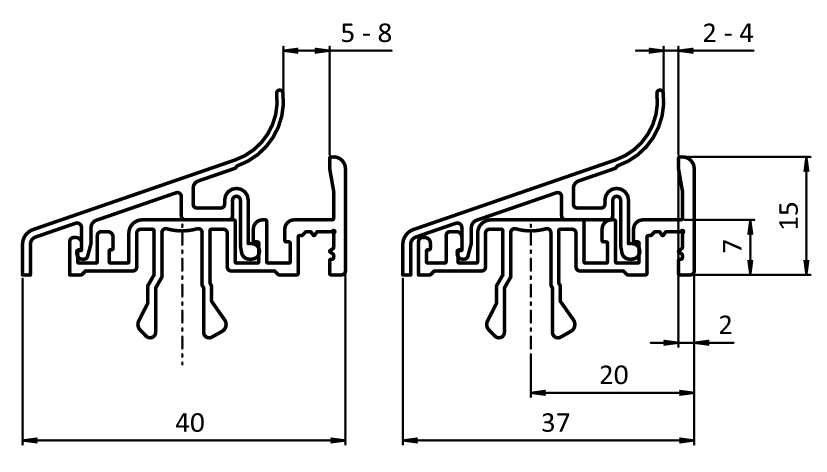

To insert panels with 2.0 to 8.0 mm thickness subsequently into assebled structures

Material:
Support strip AL: Aluminum
Glazing strip: PP + TPE

Surface:
Support strip: Anodized

Tip:
Please note: You are ordering in meters! For a complete insert profile, please order two products: Support Strip AL 092252 + Glazing Strip 092253
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Cantidad por Paquete: 20 metros (10 piezas en 2 m)
Model: Aluminum and plastcics PP + TPE, slot 10, subsequently applicable
Peso (g): 240.0

Variantes

ID de producto Version Profile Ranura N (mm)
092252 Support strip AL B 10
092253 Glazing strip B 10
