LED Lamp Module F Line 476 Dimmable, with Button
0,00 €

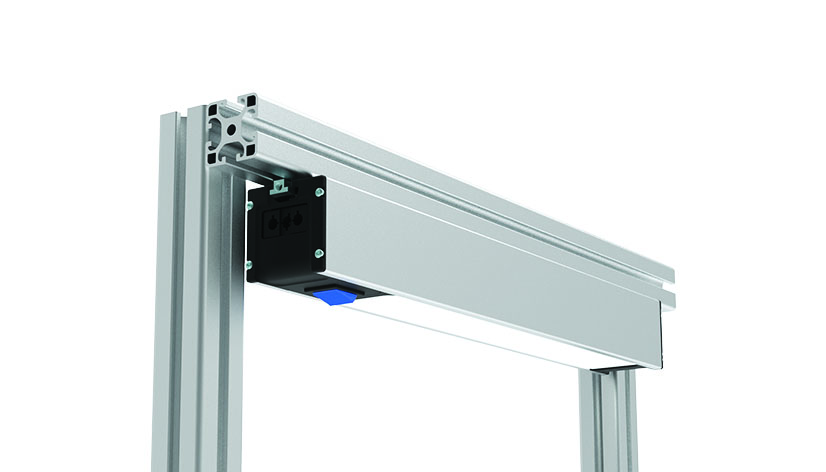

LED Lamp with dimmer button for power and light supply at work stations;
On the backside with slot 8 for mounting on aluminum profiles
Housing: Aluminum
End caps: Plastic PA, carbon fiber reinforced
Diffusing screen: Polycarbonate
Dimmer button: Plastic ABS / PA
Surface:
Housing standard version: Anodized
Housing ESD electrostatical discharging version: Powder coated
Color:
Housing standard version: -
Housing ESD electrostatical discharging version: Black
End caps: Black
Diffusing screen: Transparent (colorless)
Dimmer button standard version: Blue
Dimmer button ESD electrostatical discharging version: Orange
Tip:
Compatible Power Strip Module F Line 264 4xEU see 6SBEU24DI.370
Compatible Main Power Cable EU GST18i3 for 3-pole output connector see 6SAME4J316B.2000
Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000
Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01
Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01
Compatible Direct Connector I, slot 8 see 099DC084040N08
Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10
Tip 2:
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
Especiales:
Otras longitudes, otros colores bajo pedido
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 1 pieza |
|---|---|
| Peso (g): | 1360.0 |

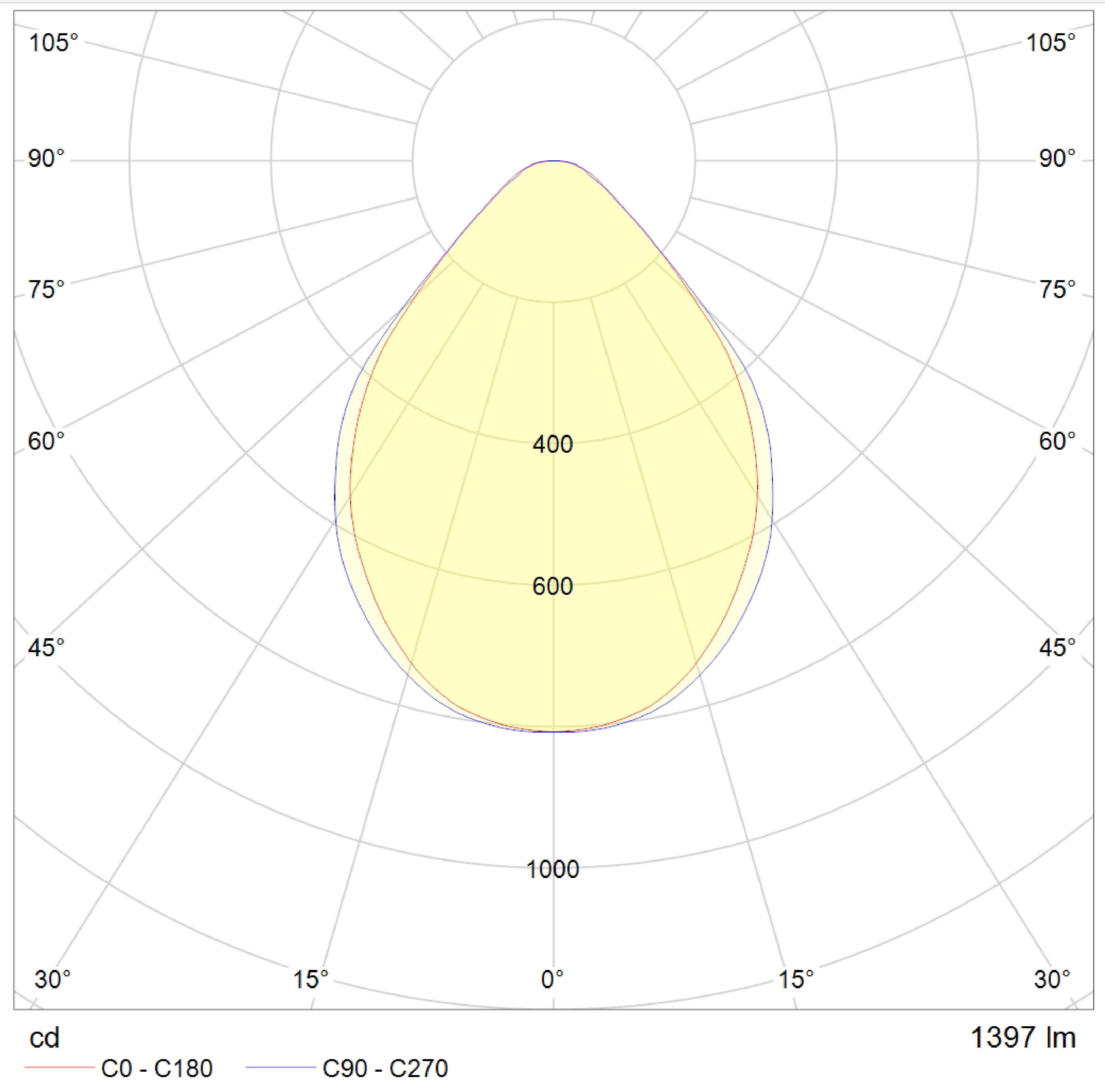

| Beam Angle: | 80° |
| Color Rendering Index: | Ra = 85 |
| Color Temperature: | 4000 K |
| IP Rating: | IP20 |
| LED Lifetime: | > 100000 h |

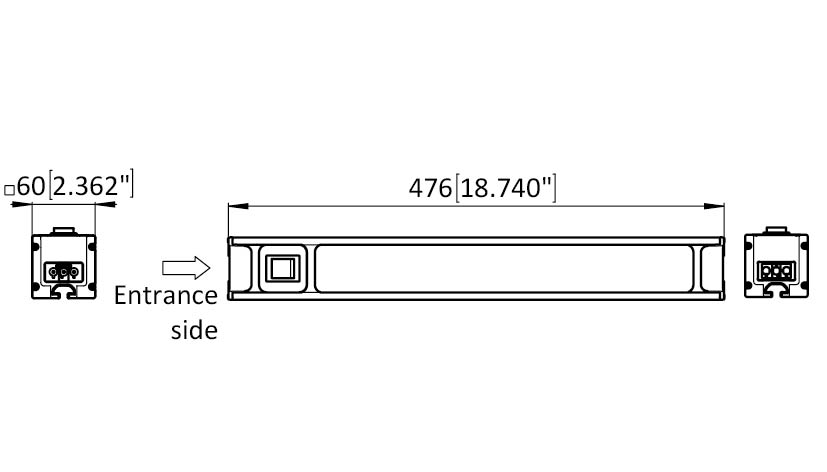

| Length: | 476 mm |
| Luminous Efficacy: | 86 lm/W |
| Luminous Flux: | 1396 lm |
| Operating Current: | Max. 16 A |
| Operating Temperature: | 0 - 40 °C |
| Operating Voltage / Frequency: | 230 V, AC / 50 Hz |
| Power Input: | 17 W |
| Protection Class: | I (1) |
| Numero de ERP: | 149733 |
