Connection Coupling GST18i3 for Module F Line (Set)
Número de producto:
6SAKP3J316BS01
Información sobre el producto "Connection Coupling GST18i3 for Module F Line (Set)"
Color:
Connection coupling: Black
Países de Entrega:
En todo el mundo
Description:

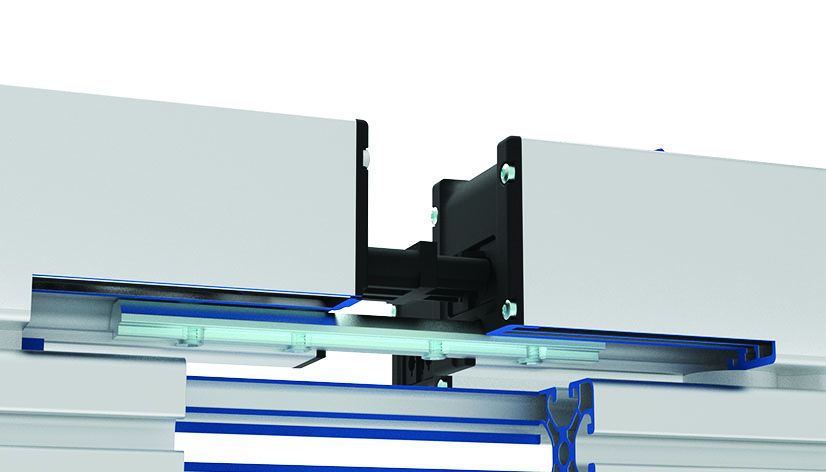

3 pole coupling piece to directly connect LED lamps and power strips Module F Line
Material:
Connection coupling: Plastic PA
Connector T-slot nut: Steel
Set:
1 connection coupling
1 connector T-slot nut
4 grub screws M8 x 10 mm
Surface:
Connector T-slot nut: Zinc-plated
Tip:
Compatible Power Strip see 6SBEU04I.264
Compatible LED Lamp see 6SL1040DI.476
Tip 2:
Please note: Usage of connection coupling only in combination with connector T-slot nut permitted
Max. chaining of 6 modules, 8 m or 3500 watts for Module F Line
Connection coupling: Black
Países de Entrega:
En todo el mundo
Description:
3 pole coupling piece to directly connect LED lamps and power strips Module F Line
Material:
Connection coupling: Plastic PA
Connector T-slot nut: Steel
Set:
1 connection coupling
1 connector T-slot nut
4 grub screws M8 x 10 mm
Surface:
Connector T-slot nut: Zinc-plated
Tip:
Compatible Power Strip see 6SBEU04I.264
Compatible LED Lamp see 6SL1040DI.476
Tip 2:
Please note: Usage of connection coupling only in combination with connector T-slot nut permitted
Max. chaining of 6 modules, 8 m or 3500 watts for Module F Line
| (ECLASS 6.0): | 27260711 |
|---|---|
| (ECLASS 7.0): | 27440314 |
| (ECLASS 8.0): | 27440314 |
| (ECLASS 9.0): | 27440314 |
| (ECLASS 10.0): | 27440314 |
| (ECLASS 11.0): | 27440314 |
| (ECLASS 12.0): | 27440314 |
| (ECLASS 13.0): | 27440314 |
| Cantidad por Paquete: | 1 juego |
| IP Rating: | IP20 |
| Numero de ERP: | 160209 |
| Número de Arancel Aduanero de Exportación: | 85369010 |
| PFA_ProductPortrait: | http://www.module-f-line.fath24.com |
| Permanent Temperature Resistance: | 70° C |
| Peso (g): | 136.0 |
| Rated Current: | 20 A |
| Rated Voltage: | 250 V |
| Zolltarifnummer: | 85369010000 |
