Power Supply

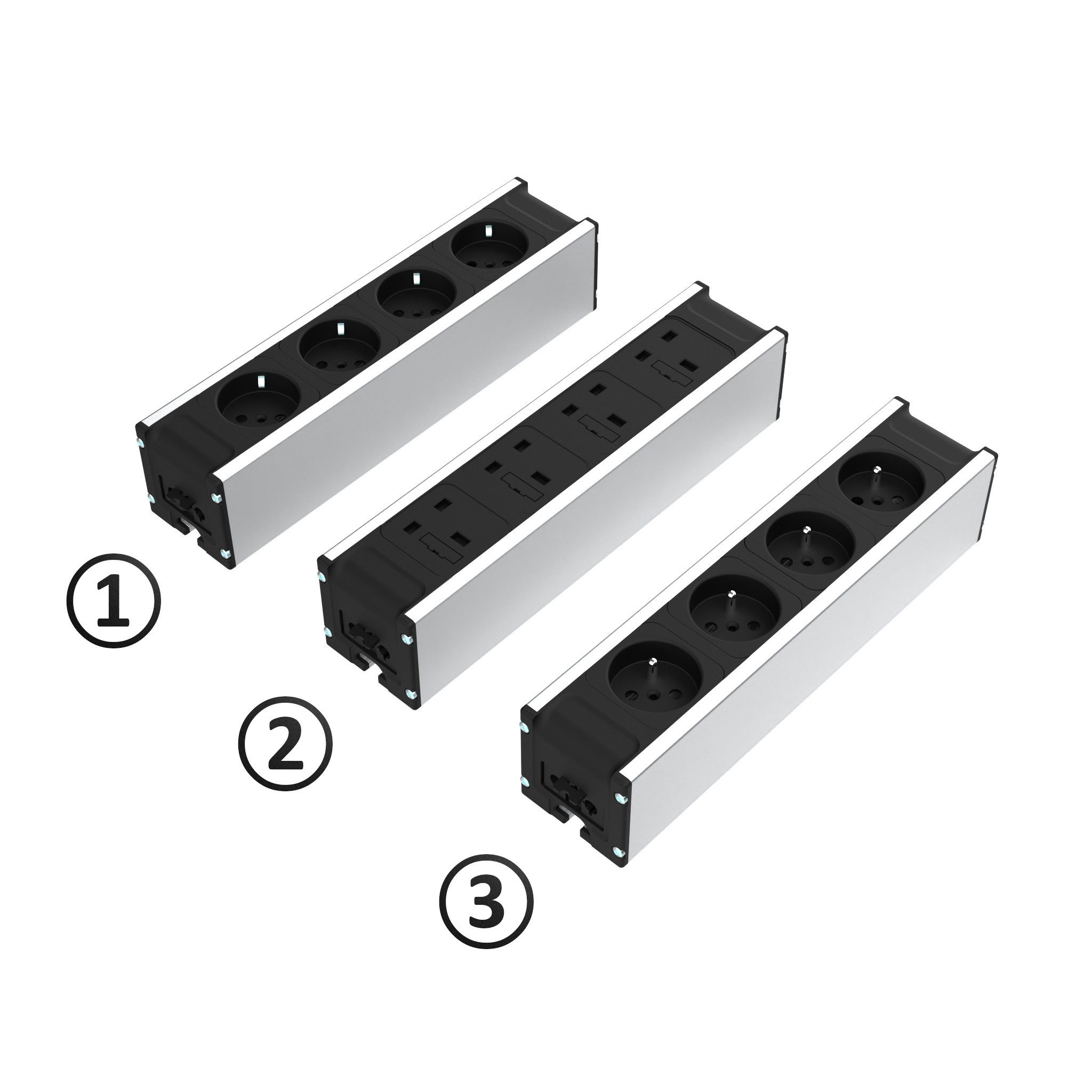

Power Strip Module F Line 264 4x
Description:Power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PASurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedColor:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: BlackTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsSpecials:Further colors, individually configurated power strips on requestPaíses de Entrega:En todo el mundoPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TN

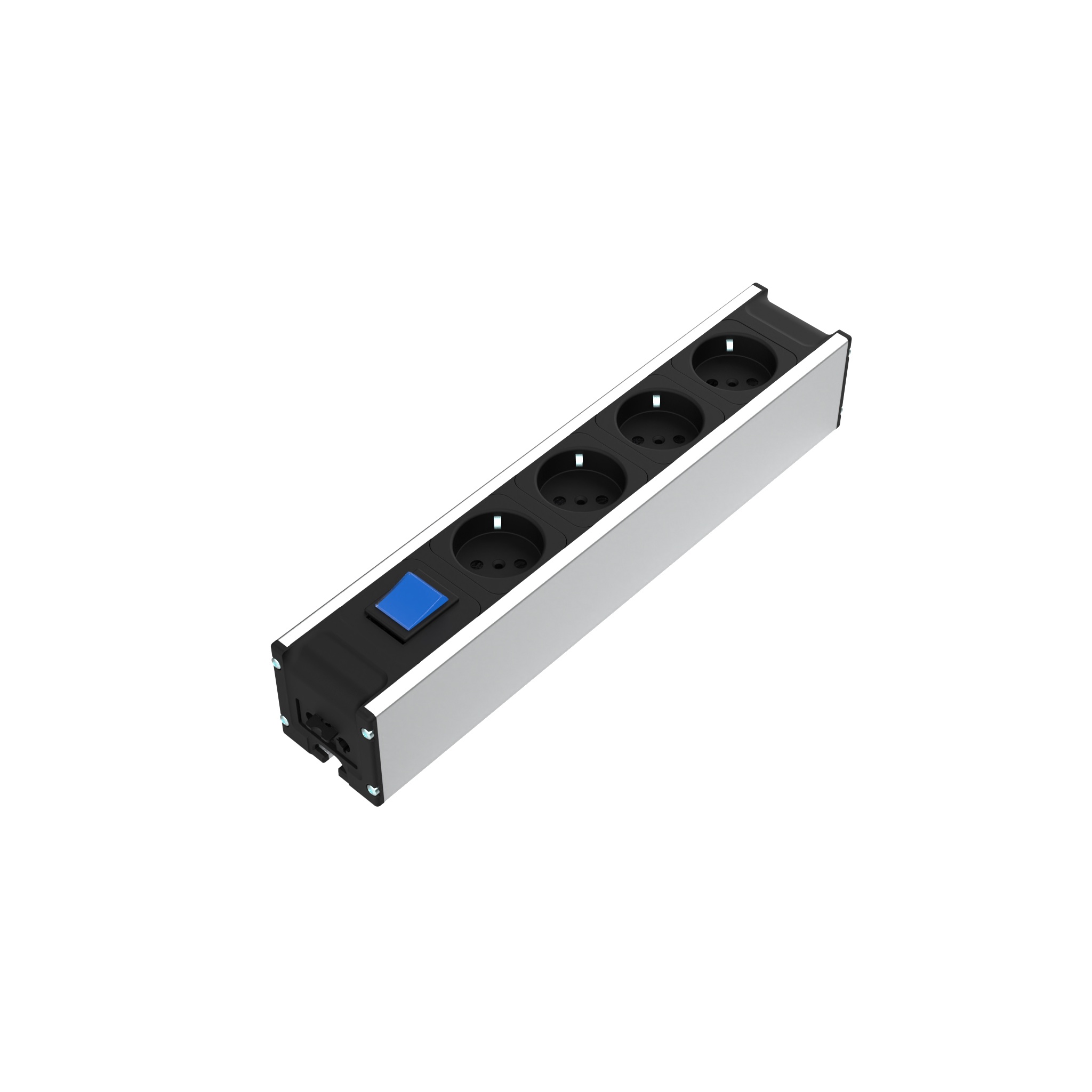

Power Strip Module F Line 317 4x, with Switch, for Series Connection
Description:Switchable power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switches: Plastic ABS / PASurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedColor:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch standard version: Blue Switch ESD electrostatical discharging version: OrangeTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsEspeciales:Otras longitudes, otros colores bajo pedidoPaíses de Entrega:En todo el mundoPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TN

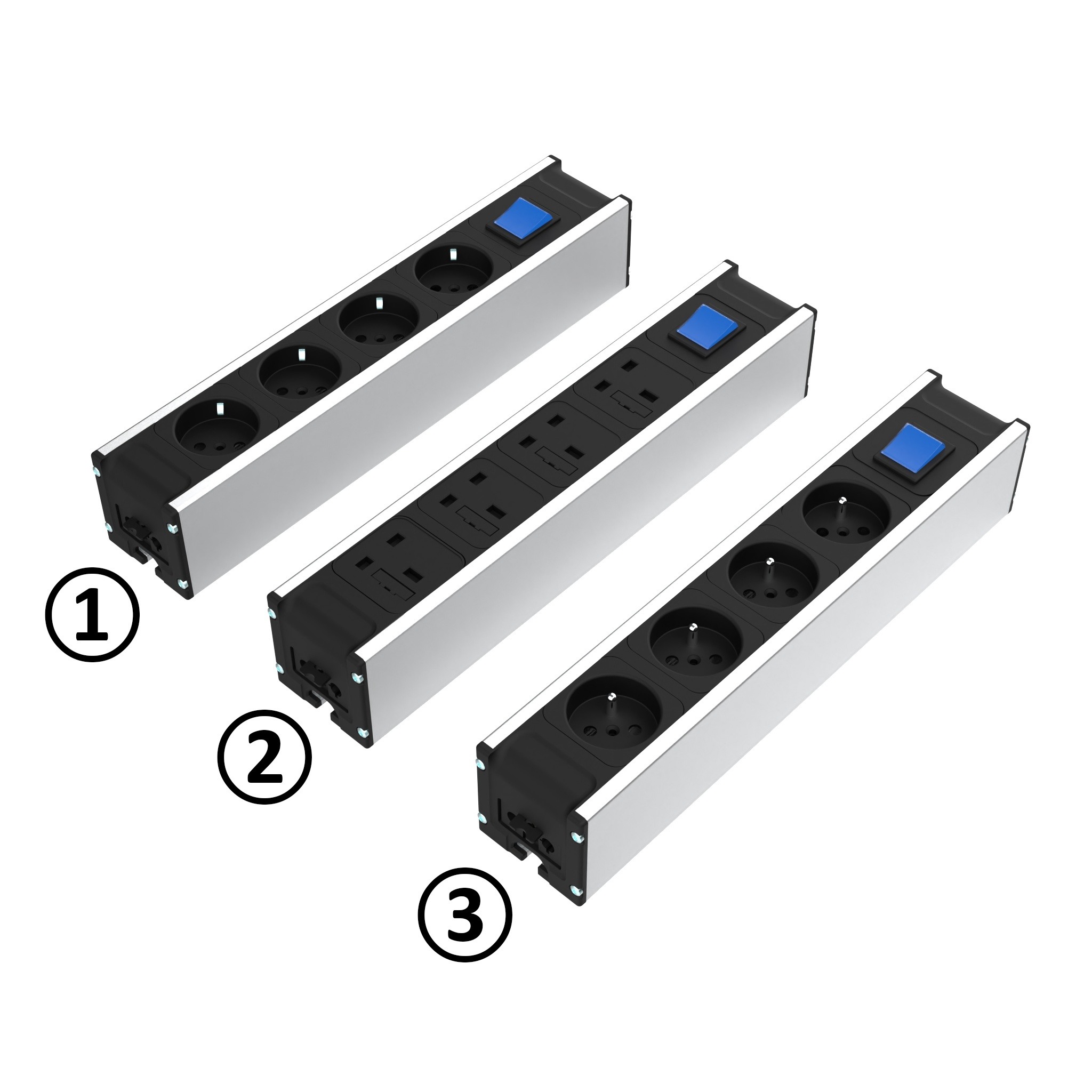

Power Strip Module F Line 317 4x, with Dimmer Button, for Series Connection
Description:Power strip with sockets for power supply at workstations; With remote dimming for series-connected LED lamps Modul F Line; Combination on output side only possible with remote dimmable LED lamp Modul F Line; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Button: Plastic ABS / PASurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedColor:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Dimmer button standard version: Blue Dimmer button ESD electrostatical discharging version: OrangeTip:Compatible LED lamp see 6SL0040I.953 Compatible main power cable see 6SAME4J316B.2000 Compatible connection cable see 6SACP3J316B.2000 Compatible connection cable see 6SACP5J516B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible direct connector I, slot 8 see 099DC084040N08 Compatible direct connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsSpecials:Further colors, individually configurated power strips on requestPaíses de Entrega:En todo el mundoPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TN

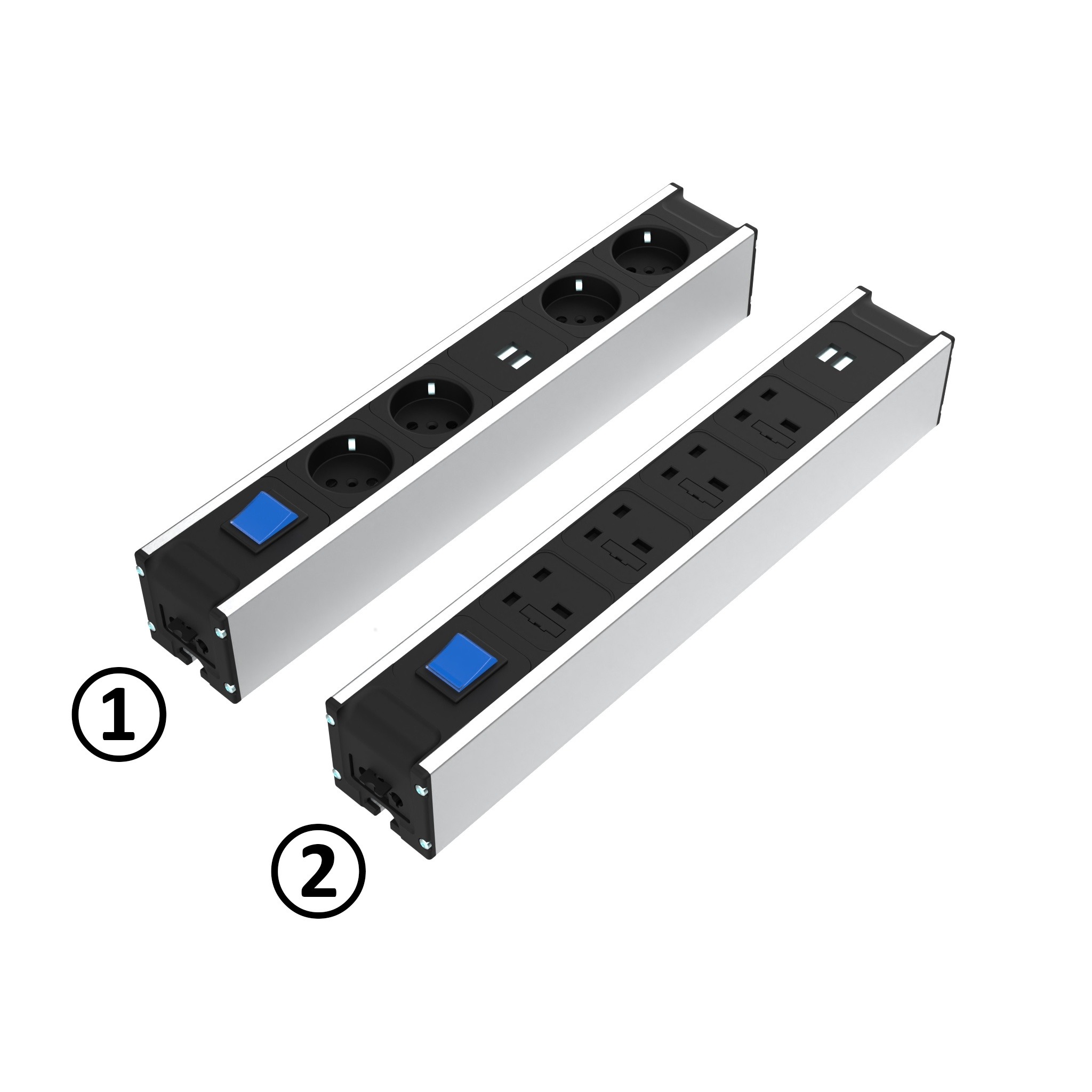

Power Strip Module F Line 370 4x + USB, with Switch
Description:Switchable power strip with sockets for power supply at workstations, with 2x USB charging sockets USB 2.0 Typ A with smart IC; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA USB sockets: Plastic ABS Switch: Plastic ABS / PASurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedColor:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch button standard version: Blue Switch ESD electrostatical discharging version: OrangeTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsSpecials:Further colors, individually configurated power strips on requestPaíses de Entrega:En todo el mundoPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TN

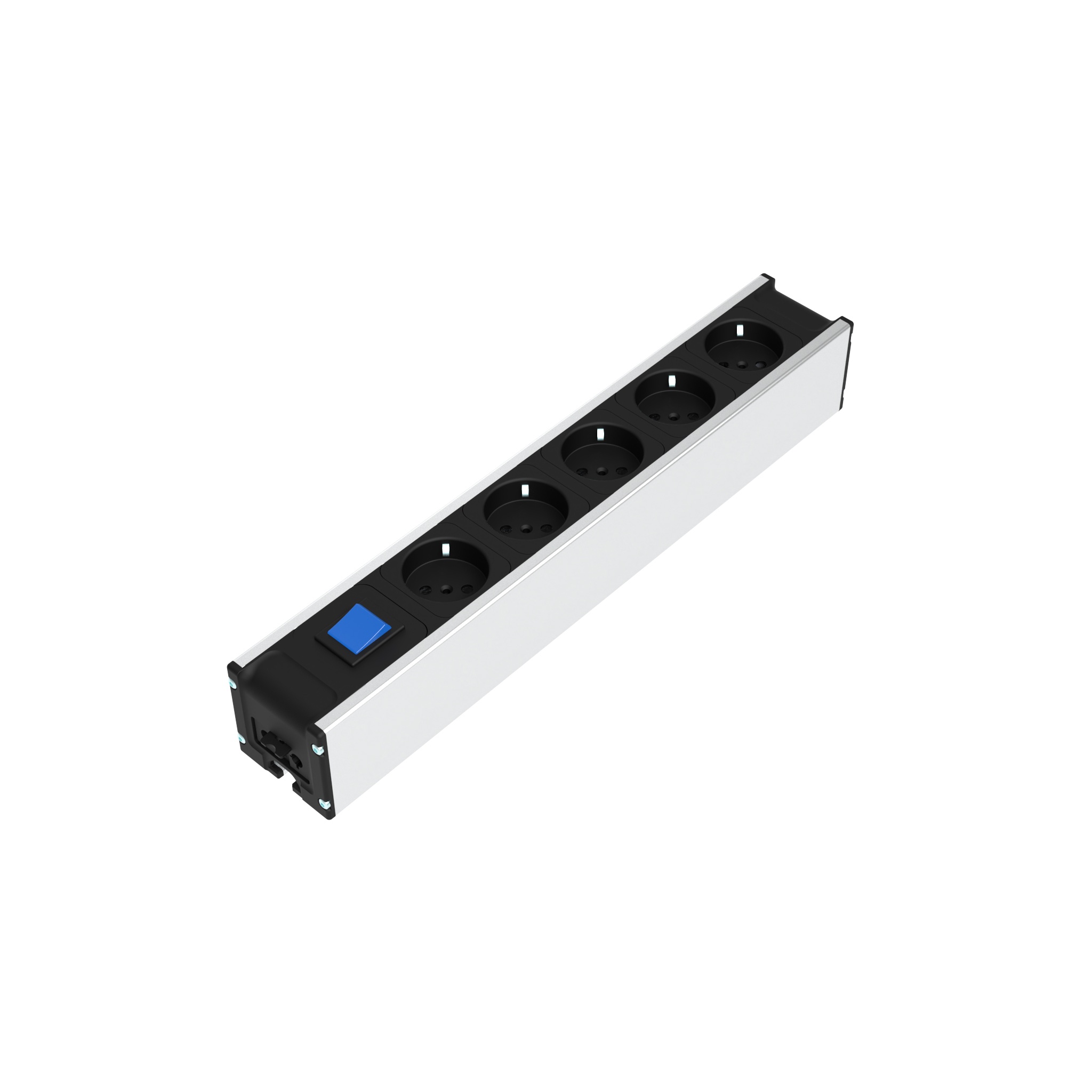

Power Strip Module F Line 370 5x with Switch
Description:Switchable power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switches: Plastic ABS / PASurface:Housing: AnodizedColor:Housing: - End caps: Black Socket inserts: Black Switch: BlueTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsSpecials:Further colors, individually configurated power strips on requestPaíses de Entrega:En todo el mundoPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TN
Power Strip Module F Line 370 4x, with Switch and Dimmer Button, for Series Connection
Description:Switchable power strip with sockets for power supply at workstations; With remote dimmer for series-connected LED lamps Modul F Line; Combination on output side only possible with remote dimmable LED lamp module F Line; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switch / Button: Plastic ABS / PASurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedColor:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch and dimmer button standard version: Blue Switch and dimmer button ESD electrostatical discharging version: OrangeTip:Compatible LED lamp see 6SL0040I.953 Compatible main power cable see 6SAME4J316B.2000 Compatible connection cable see 6SACP3J316B.2000 Compatible connection cable see 6SACP5J516B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible direct connector I, slot 8 see 099DC084040N08 Compatible direct connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsSpecials:Further colors, individually configurated power strips on requestPaíses de Entrega:En todo el mundoPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TN
Power Strip Module F Line 370 4x, with 2 Switches
Description:Switchable power strip with sockets for power supply at workstations; Switchable output of power strip; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced Socket inserts: Plastic PA Switches: Plastic ABS / PASurface:Housing standard version: Anodized Housing ESD electrostatical discharging version: Powder coatedColor:Housing standard version: - Housing ESD electrostatical discharging version: Black End caps: Black Socket inserts: Black Switch standard version: Blue Switch ESD electrostatical discharging version: OrangeTip:Compatible LED Lamp see 6SL1040DI.953 Compatible Main Power Cable see 6SAME4J316B.2000 Compatible Connection Cable see 6SACP3J316B.2000 Compatible Connection Coupling see 6SAKP3J316BS01 Compatible Cover Cap for 3 pole female connector see 063SGF3S01 Compatible Direct Connector I, Slot 8 see 099DC084040N08 Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsSpecials:Further colors, individually configurated power strips on requestPaíses de Entrega:En todo el mundoPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TN

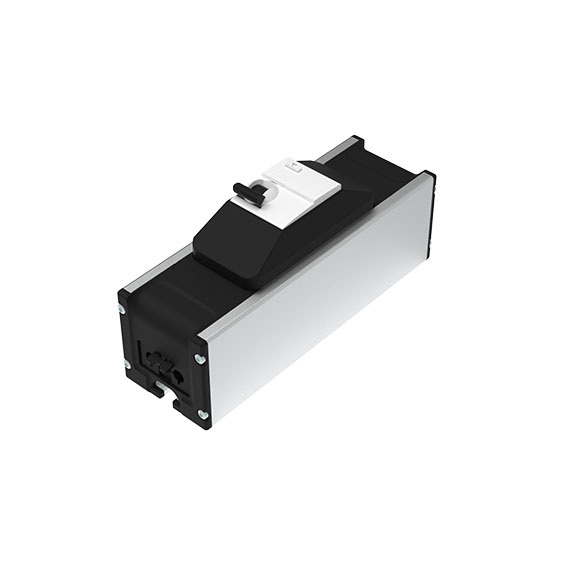

RCD Unit 25A / 30mA, Module F Line 185
Description:Residual current circuit breaker (RCCB) for protecting downstream F-Line modules in a chain against fault currents; On the backside with slot 8 for mounting on aluminum profilesMaterial:Housing: Aluminum End caps: Plastic PA, carbon fiber reinforced RCD Unit: Plastic ABSSurface:Housing: AnodizedColor:End caps: Black RCD-Unit: WhiteTip:Compatible Main Power Cable GST18i3 for 3-pole input connector see 6SAME4J316B.2000 Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000 Compatible Power Strip Module F Line 264 4x see 6SBEU04I.264Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsSpecials:ESD electrostatical discharging, available on requestPaíses de Entrega:En todo el mundo

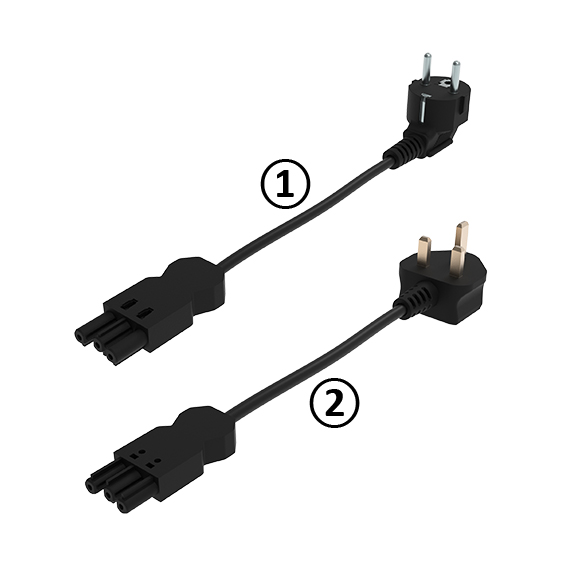

Main Power Cable GST18i3 for Module F Line
Description:3 wire cable for power supply of LED lamps and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PAColor:NegroTip:Compatible power strip see 6SBGB24I.370 Compatible LED lamp see 6SL0040I.953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsPaíses de Entrega:En todo el mundoPlug type countries:Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY Type E: FR, BE, CZ, SK, PL, MA, CM, TN

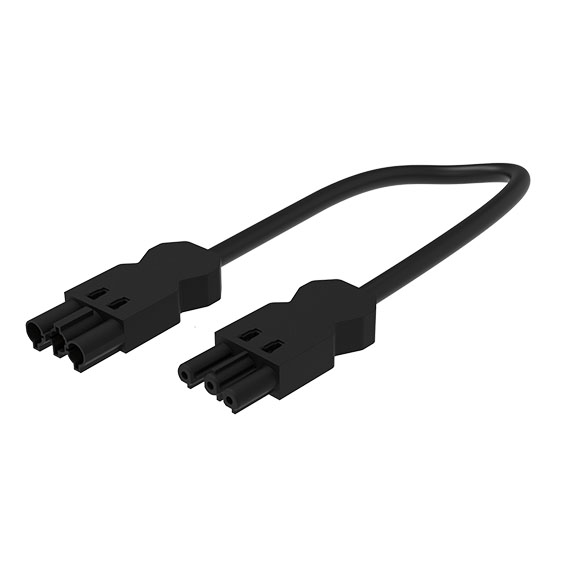

Connection Cable GST18i3 for Module F Line
Description:3 wire cable to connect LED lamps and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PAColor:NegroTip:Compatible Power Strip see 6SBEU14UI.370 Compatible LED Lamp see 6SL1040DI.953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsPaíses de Entrega:En todo el mundo

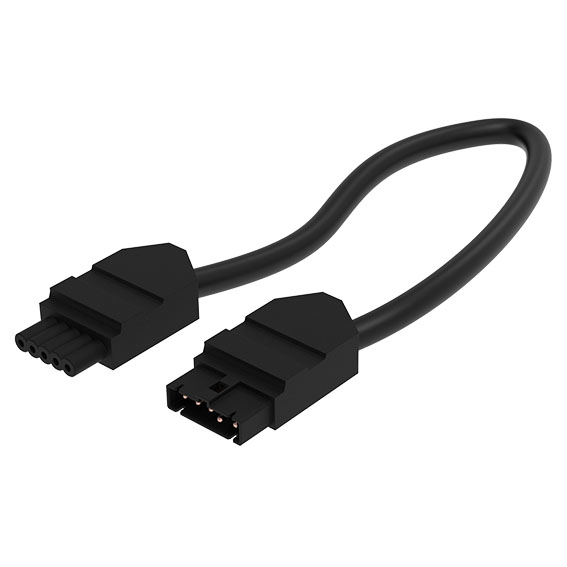

Connection Cable GST15i5 for Module F Line
Description:5 wire cable to connect LED lamps with remote dimmer and power strips Module F LineMaterial:Cable insulation: Plastic PVC Plugs: Plastic PAColor:NegroTip:Compatible Power Strip see 6SBEU24DU.370 Compatible LED Lamp see 6SL0040I953Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsPaíses de Entrega:En todo el mundo

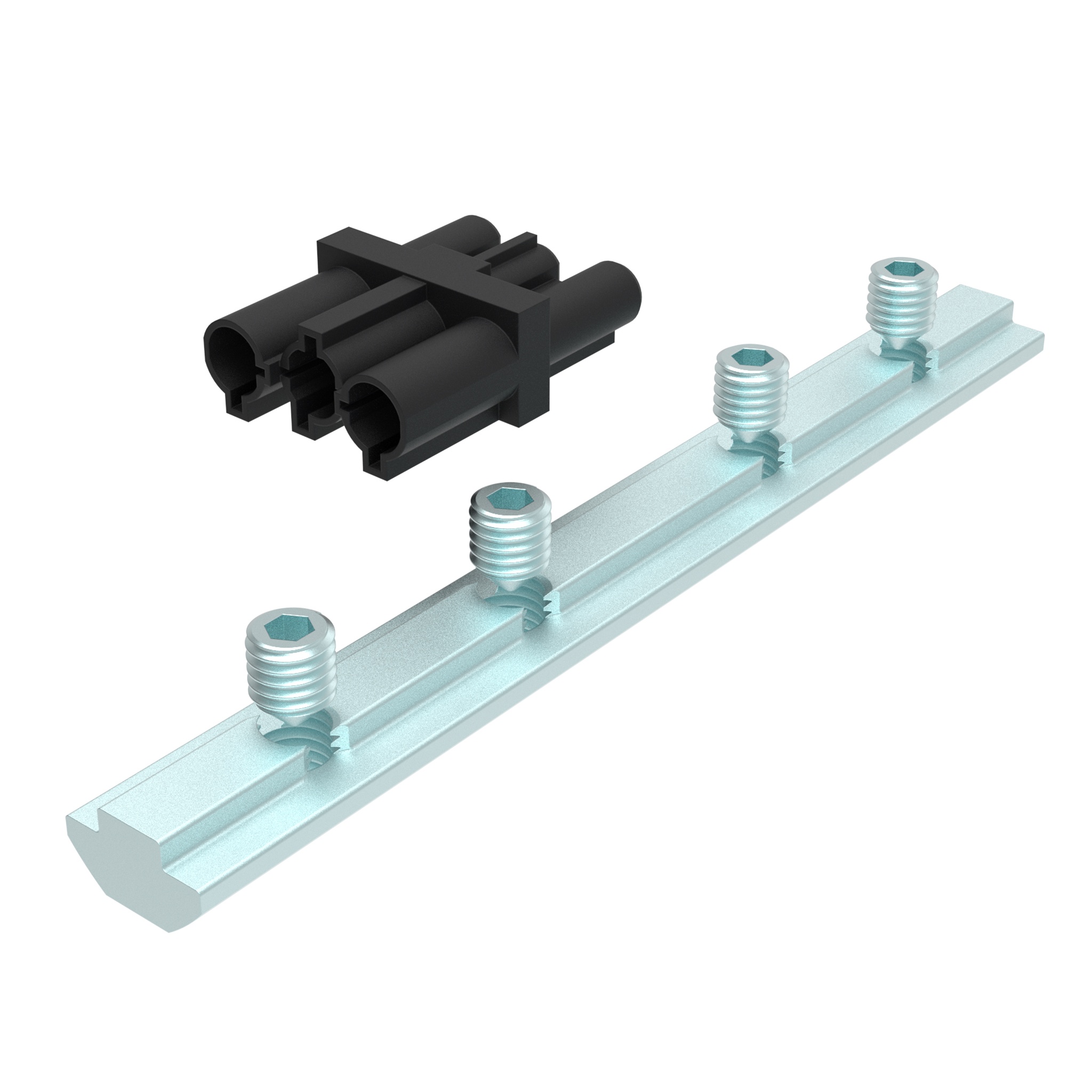

Connection Coupling GST18i3 for Module F Line (Set)
Description:3 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSurface:Connector T-slot nut: Zinc-platedColor:Connection coupling: BlackSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmTip:Compatible Power Strip see 6SBEU04I.264 Compatible LED Lamp see 6SL1040DI.476Tip 2:Please note: Usage of connection coupling only in combination with connector T-slot nut permitted Max. chaining of 6 modules, 8 m or 3500 watts for Module F LinePaíses de Entrega:En todo el mundo

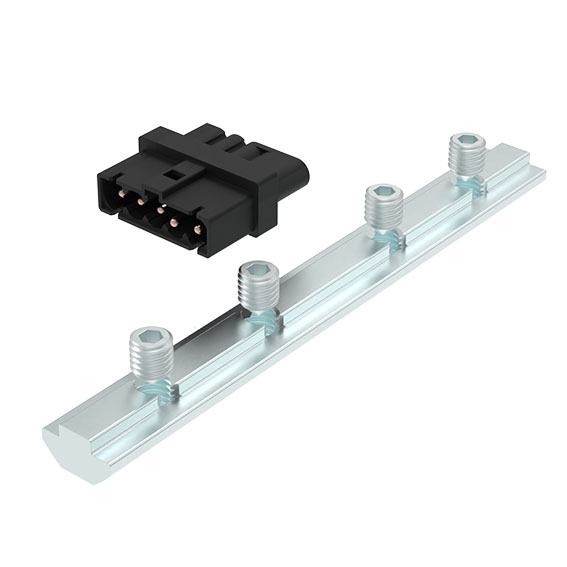

Connection Coupling GST15i5 for Module F Line (Set)
Description:5 pole coupling piece to directly connect LED lamps and power strips Module F LineMaterial:Connection coupling: Plastic PA Connector T-slot nut: SteelSurface:Connector T-slot nut: Zinc-platedColor:Connection coupling: BlackSet:1 connection coupling 1 connector T-slot nut 4 grub screws M8 x 10 mmTip:Compatible Power Strip see 6SBEU24DI.370 Compatible LED Lamp see 6SL0040RI.476Tip 2:Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules Connected load max. 3500 wattsPaíses de Entrega:En todo el mundo
Cover Cap GST18i3 for Module F Line
Description:Cover cap to cover three pole sockets of LED lamps and power strips Module F LineMaterial:Plástico PAColor:NegroTip:Compatible Power Strip see 6SBEU24I.370 Compatible LED Lamp see 6SL1040DI.953Países de Entrega:En todo el mundo
