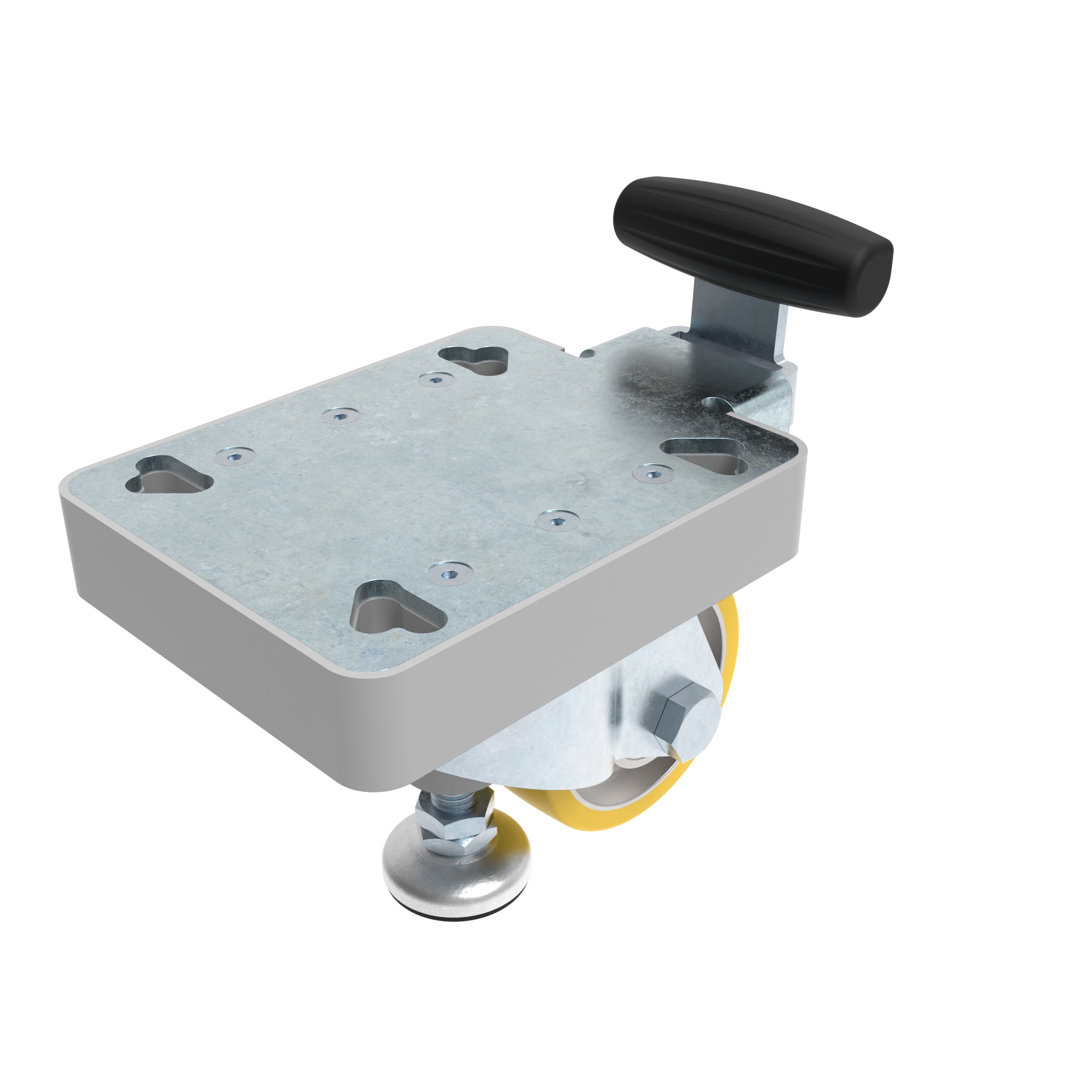

Rueda giratoria con pata elevadora

Descripción:
Reliable and quiet swivel caster, trackless
With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang
No additional transport and base plate needed;
Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the swivel caster housing

Material:
Die-cast aluminum / steel
Thread: See table
Wheel body: See table
Mounting plate: Steel
Leveling foot: Steel / zinc / TPE
Foot pedal: Plastic PUR / steel

Surface:
Housing: Powder coated / zinc plated
Mounting plate: Zinc plated
Leveling foot: Zinc plated
Foot pedal: Zinc plated

Color:
Housing: Alu color
Tread: See table
Wheel body: See table
Foot pedal: Black

Especiales:
Otros tipos de ruedas, otros colores, otras superficies bajo pedido

Países de Entrega:
En todo el mundo

Cantidad por paquete:	1 pieza
Model:	With mounting plate
Peso (g):	2400.0
Numero de ERP:	144530

Variantes

Número de producto	D (mm)	H (mm)	ESD	Carga Máxima (N)	Roscado de rueda giratoria	Cuerpo de Rueda
098LF080UF134110	80	125.0	-	1500	PU, negro	PA, gris ≈ RAL 7001
098LF100UF134110	100	145.0	-	2000	PU, negro	PA, gris ≈ RAL 7001
098LF080UF134110-	80	125.0	ESD	1000	PU, negro	PA, gris ≈ RAL 7001
098LF100UF134110-	100	145.0	ESD	1300	PU, negro	PA, gris ≈ RAL 7001
098LF080GF134110	80	125.0	-	1700	Caucho macizo, negro	PA, negro
098LF100GF134110	100	145.0	-	2000	Caucho macizo, negro	PA, negro
098LF080AF134110	80	125.0	-	2500	PA, blanco	PA, blanco natural
098LF100AF134110	100	145.0	-	2500	PA, blanco	PA, blanco natural
098LF080EHF134110	80	125.0	-	1800	PU, amarillo	Aluminum die-cast, silver gray
098LF100EHF134110	100	145.0	-	2500	PU, amarillo	Aluminum die-cast, silver gray
098LF080EHF134110-	80	125.0	ESD	1800	PU, verde	Aluminum die-cast, silver gray
098LF100EHF134110-	100	145.0	ESD	2500	PU, verde	Aluminum die-cast, silver gray
