Mitre Connector B 45°-90°, Slot 10

Información sobre el producto "Mitre Connector B 45°-90°, Slot 10"

Países de Entrega:
En todo el mundo

Description:

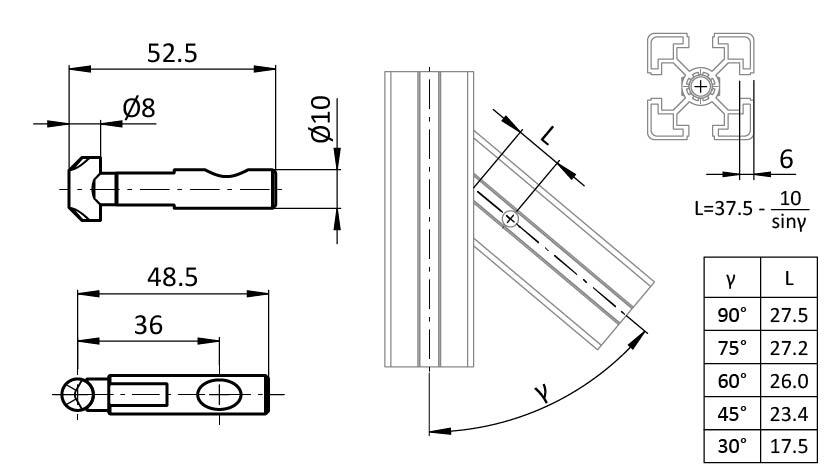

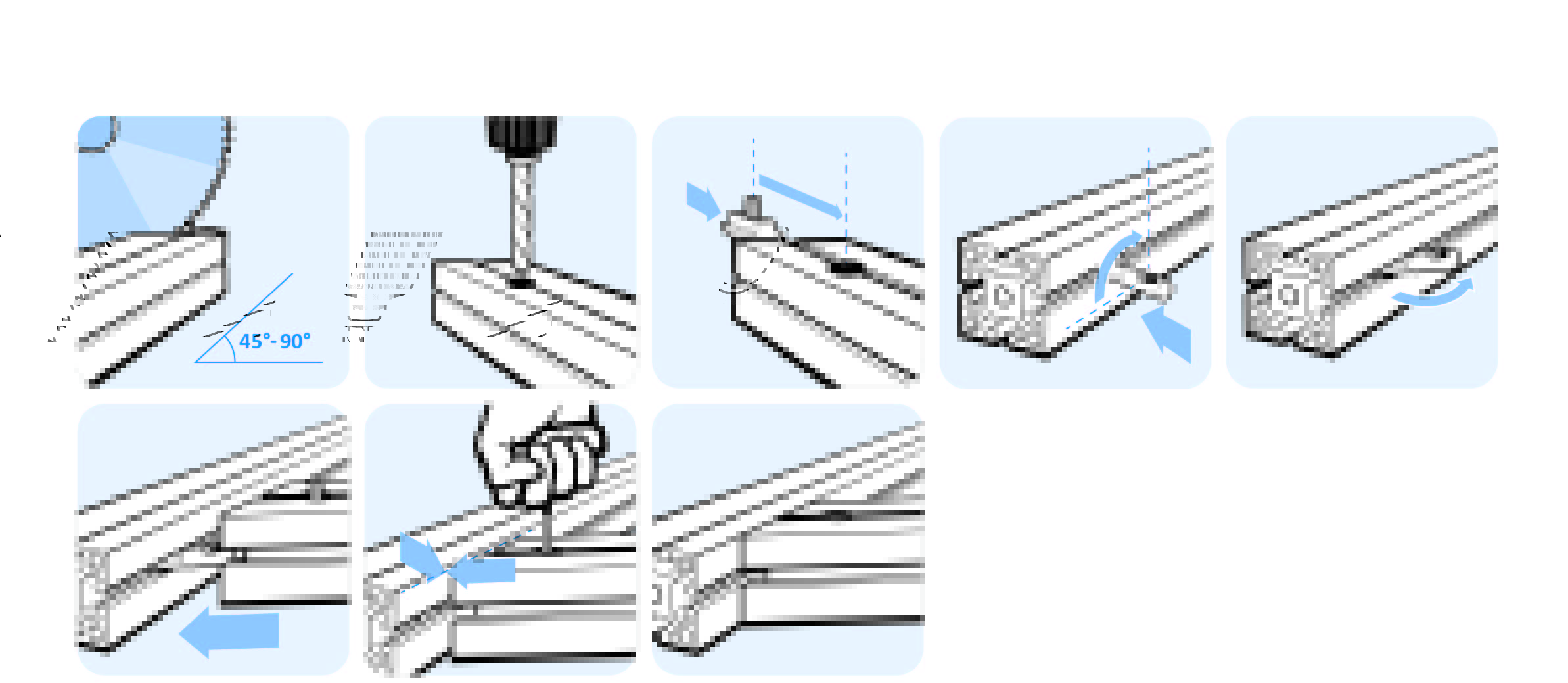

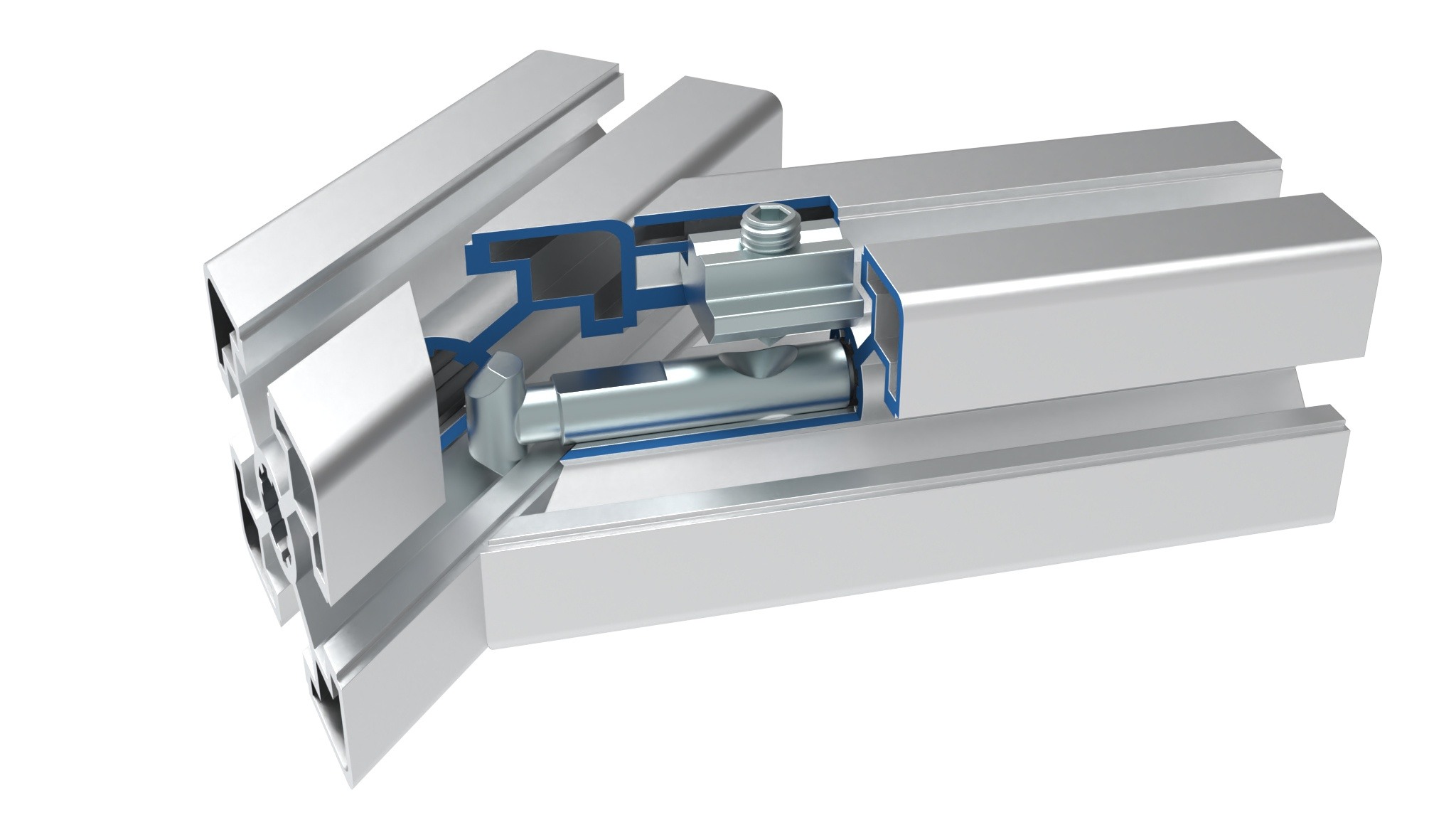

End-to-end connection of an aluminum profile with a mitre cut (cut γ = 45° - 90°) to another aluminum profile; before the application a hole with Ø 8.2 mm lateral must be drilled; with T-slot nut and threaded pin with AF 4

Material:
Galvanizado / liso

Superficie:
Galvanizado

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas
Model: Steel, profile 45, slot 10 deep
Peso (g): 57.0

Variantes

ID de producto Profile Ranura N (mm)
099BG10081090 B 10
