Mitre Connector I 30°-90°, Slot 8

Información sobre el producto "Mitre Connector I 30°-90°, Slot 8"

Color:
Cover cap: gray ≈ RAL 7042

Países de Entrega:
En todo el mundo

Description:

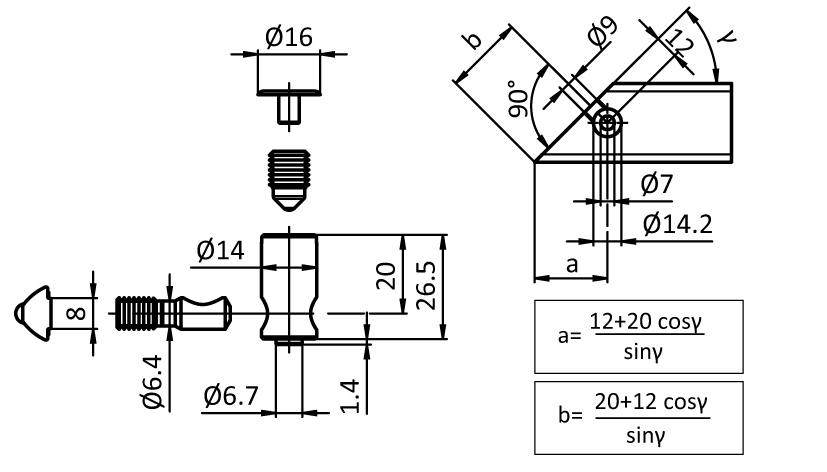

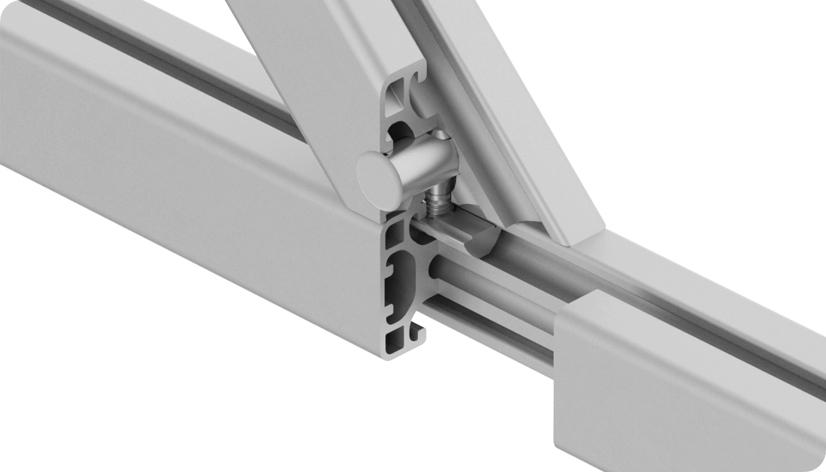

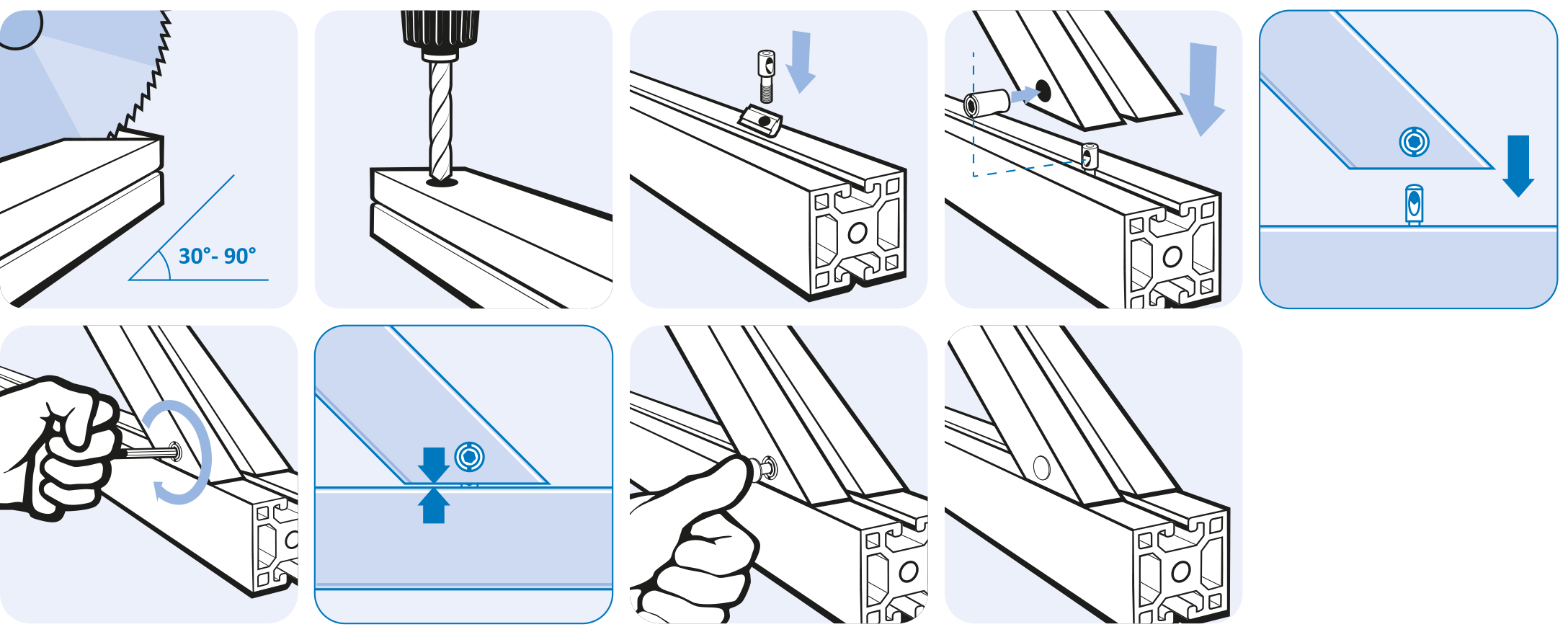

End-to-end connection of an aluminum profile with a mitre cut (cut γ = 30° - 90°) to another aluminum profile; before the application each a hole with Ø 14.2 mm lateral and Ø 9.0 mm frontal must be drilled; with T-slot nut and cover cap

Material:
Connector and T-slot nut: Steel
Cover caps: Plastic PP

Surface:
Connector and T-slot nut: Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas
Model: Steel, profile 40, slot 8
Peso (g): 42.0

Variantes

ID de producto Profile Ranura N (mm)
099BG081429 I 8
