Panel Holder

Descripción:
To attach panels easily to aluminum profiles

Material:
Aluminio

Superficie:
Anodizado

Países de Entrega:
En todo el mundo

Variantes

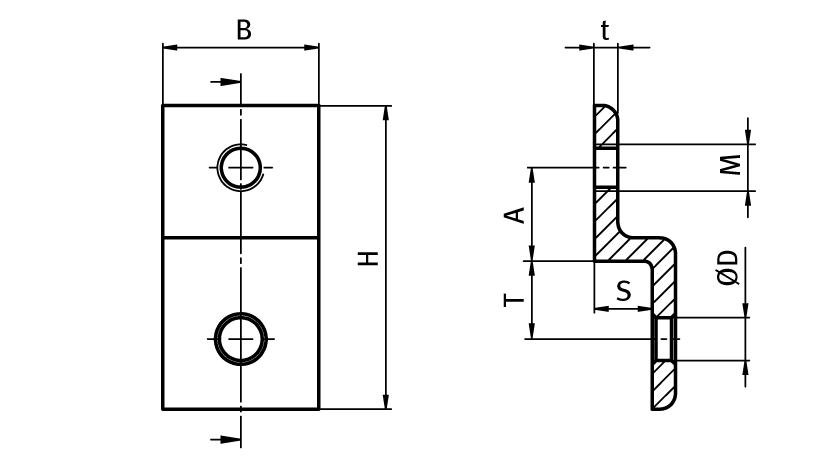

Número de producto	H (mm)	A (mm)	B (mm)	M	S (mm)	Dimensión modular (mm)	ØD (mm)	t (mm)	T (mm)
093P20N	39.0	12.0	20.0	M6	7.4	20	5.5	3.0	10.0
093P30N	68.0	23.0	30.0	M8	11.0	30	9.0	6.0	15.0
093P40N	78.0	24.0	40.0	M8	16.0	40	9.0	6.0	20.0
093P45N	88.0	26.5	45.0	M8	17.5	45	9.0	6.0	22.5

Profile Type	Profile Type B, Profile Type I
Modular Dimension	Modular Dimension 20
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
