Percha de seguridad 8/8 (Juego)

Descripción:

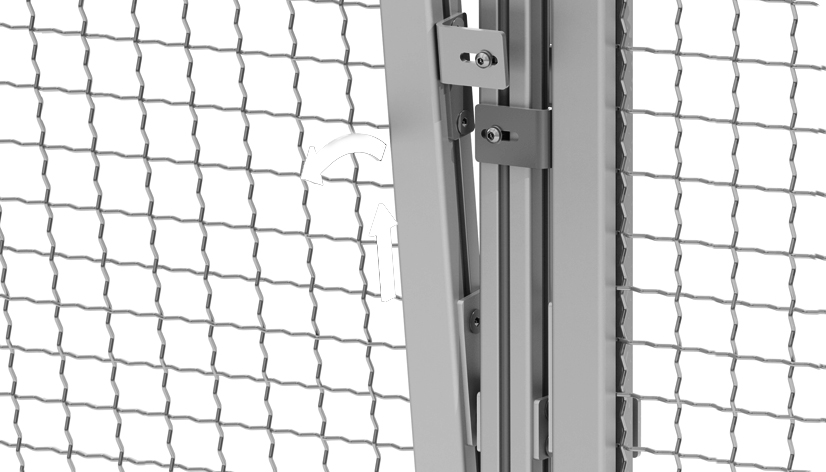

To comfortably hang on protective frame panels, according to Machinery Directive 2006/42/EC; gap distance 12 - 26 mm
Material:
Hanger: Steel
Supporting hook: Steel
Supporting angle: Steel
Countersunk screws: Stainless steel
T-slot nuts: Steel

Surface:
Hanger: Zinc plated
Supporting hook: Zinc plated
Supporting angle: Zinc plated
Countersunk screws: Plain
T-slot nuts: Zinc plated

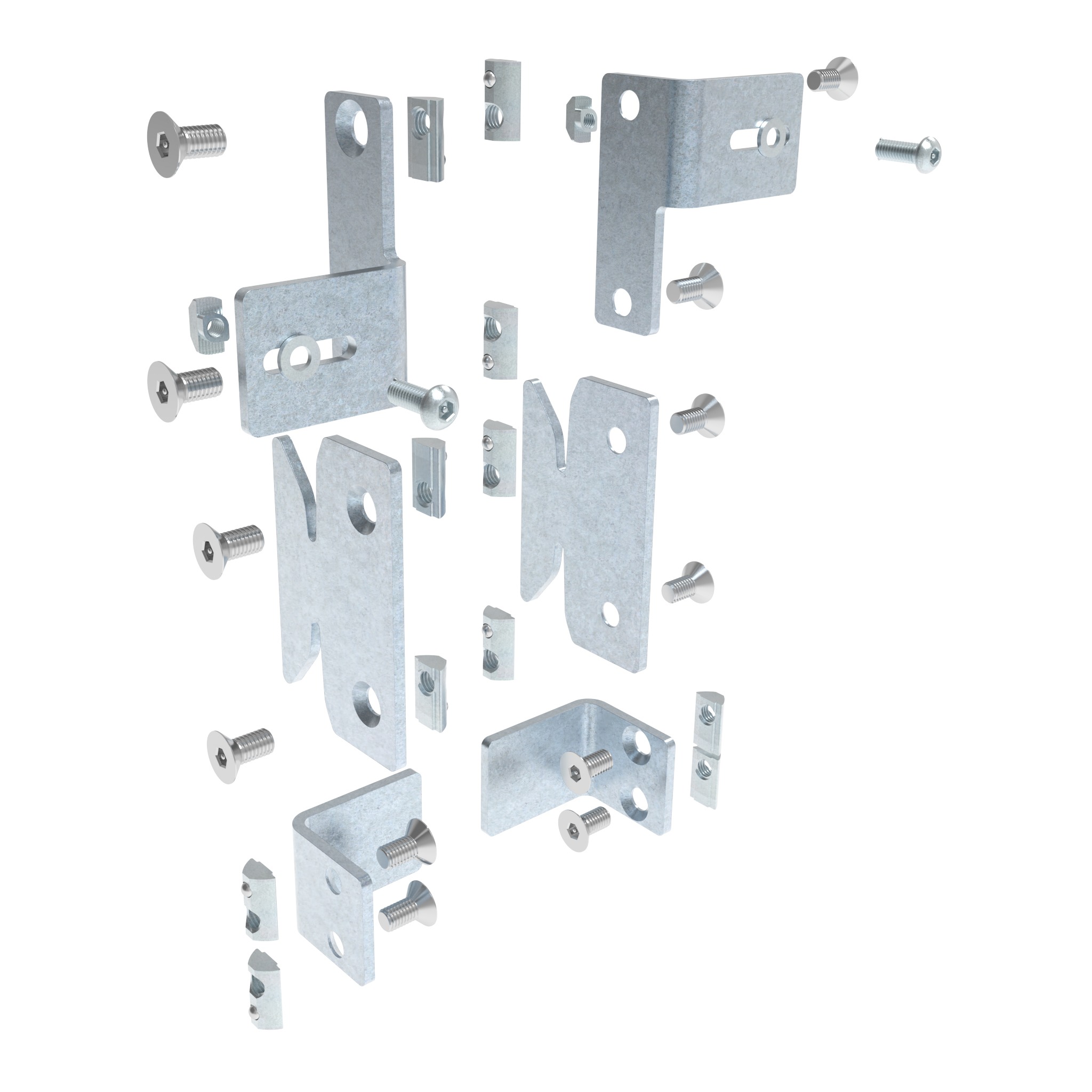

Set:
2 hangers incl. calked safety fastening with pin,
2 supporting hooks,
2 supporting angles,
12 countersunk screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 - with pin,
12 T-slot nuts - slot 8 - M8

Países de Entrega:
En todo el mundo
Cantidad por paquete: 1 pieza
Model: Steel, zinc plated, Slot 8
Peso (g): 845.0
Numero de ERP: 133697

Variantes

Número de producto Profile Ranura N (mm) CAD
I 8 / 8

Clasificación

ECLASS 6.0
23369290
ECLASS 7.0
23369290
ECLASS 8.0
23369290
ECLASS 9.0
23369290
ECLASS 10.0
23369290
ECLASS 11.0
23360492
ECLASS 12.0
23360492
ECLASS 13.0
23360492
Zolltarifnummer
73182900900
Número de Arancel Aduanero de Exportación
73182900

Certificados

Tags

Profile Type Profile Type I
Slot Size Slot size 8
Profile Form T-slot Profiles
Application Area Intralogistics
