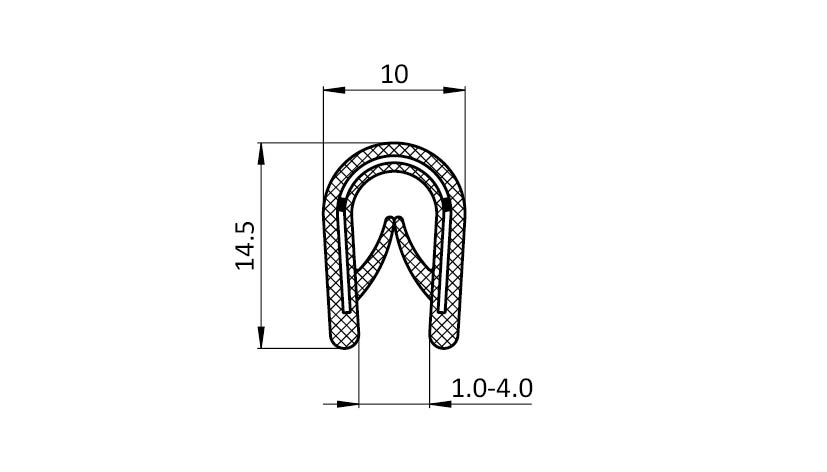

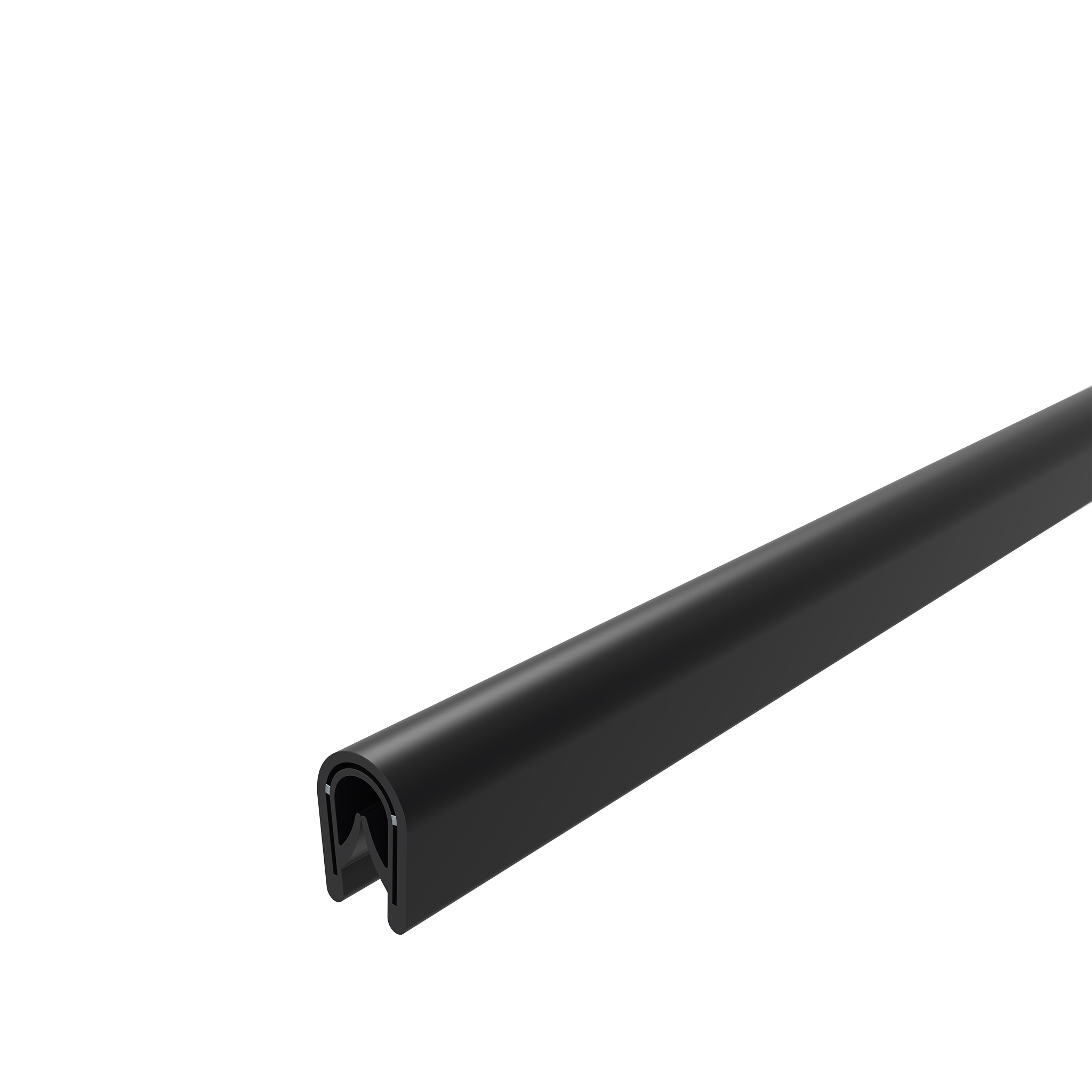

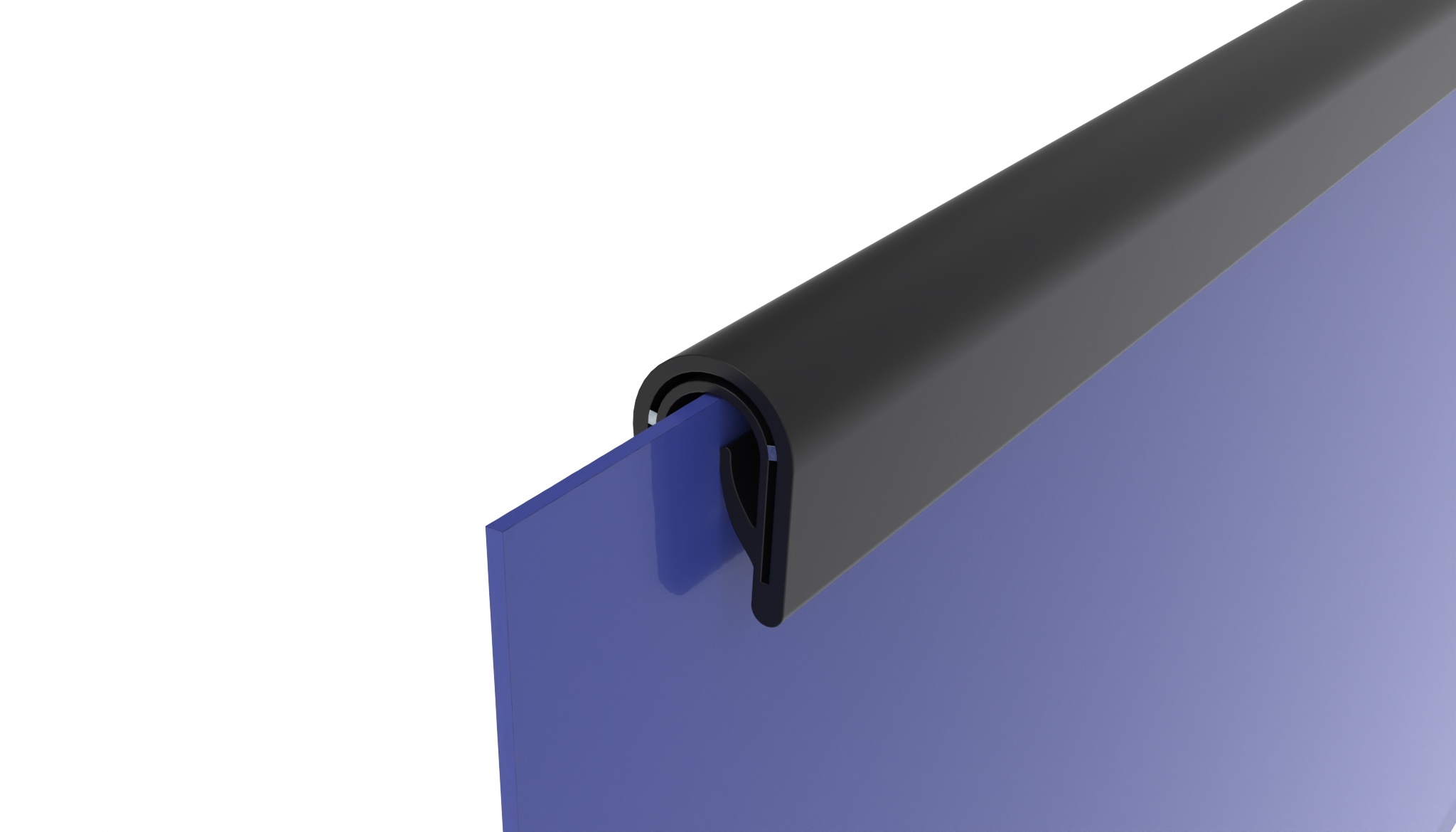

Perfil de junta para montaje a presión 10 x 14.5

Información sobre el producto "Perfil de junta para montaje a presión 10 x 14.5"

Color:
Edge protector: Black, anthracite, light gray, white gray
Clamping lips: Transparent

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For protecting the edges of panels;
Self-clamping with split clamping band

Material:
Edge protector: Plastic PVC, 78 Shore A
Clamping lips: Plastic PVC, 57 Shore A
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Clamping band: Stainless steel, non-split, single-sided split on request
Other cross-sections on request

Zolltarifnummer:
39162000990
Cantidad por Paquete: 100 metros (rollo)
Weight (g/m): 66.0

Variantes

ID de producto Rango de Sujeción (mm) Color
087EPE04721 1.0 - 4.0 Gris claro ≈ RAL 7035
087EPE04731 1.0 - 4.0 Antracita ≈ RAL 7016
087EPE04911 1.0 - 4.0 Negro
087EPE04921 1.0 - 4.0 Blanco ≈ RAL 9003

Descargas CAD
