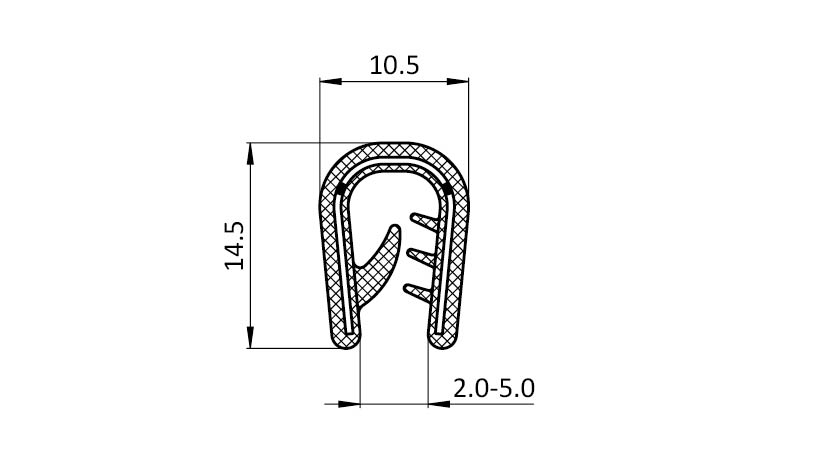

Perfil de junta para montaje a presión 10.5 x 14.5

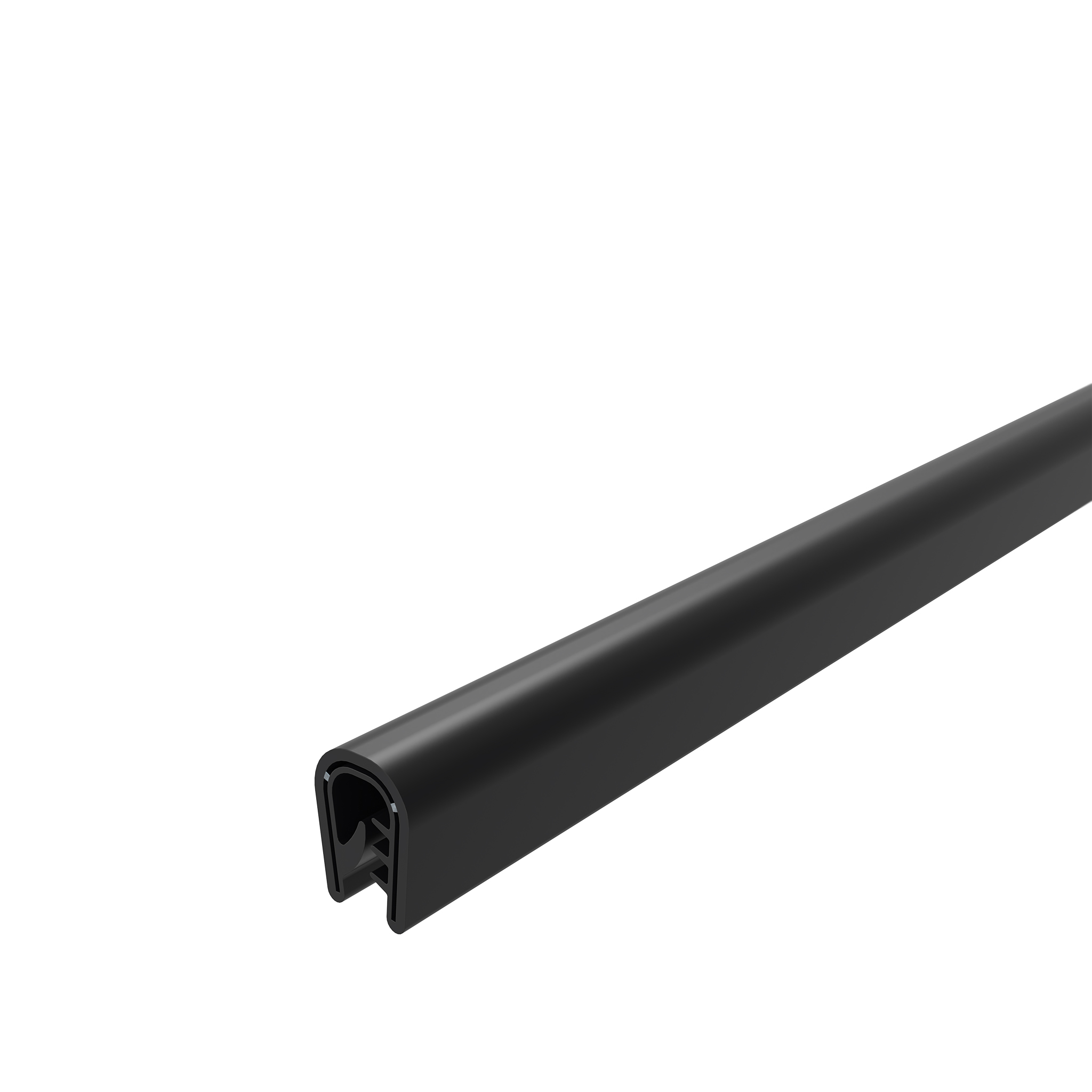

Información sobre el producto "Perfil de junta para montaje a presión 10.5 x 14.5"

Color:
Edge protector: Black
Clamping lips: Transparent

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

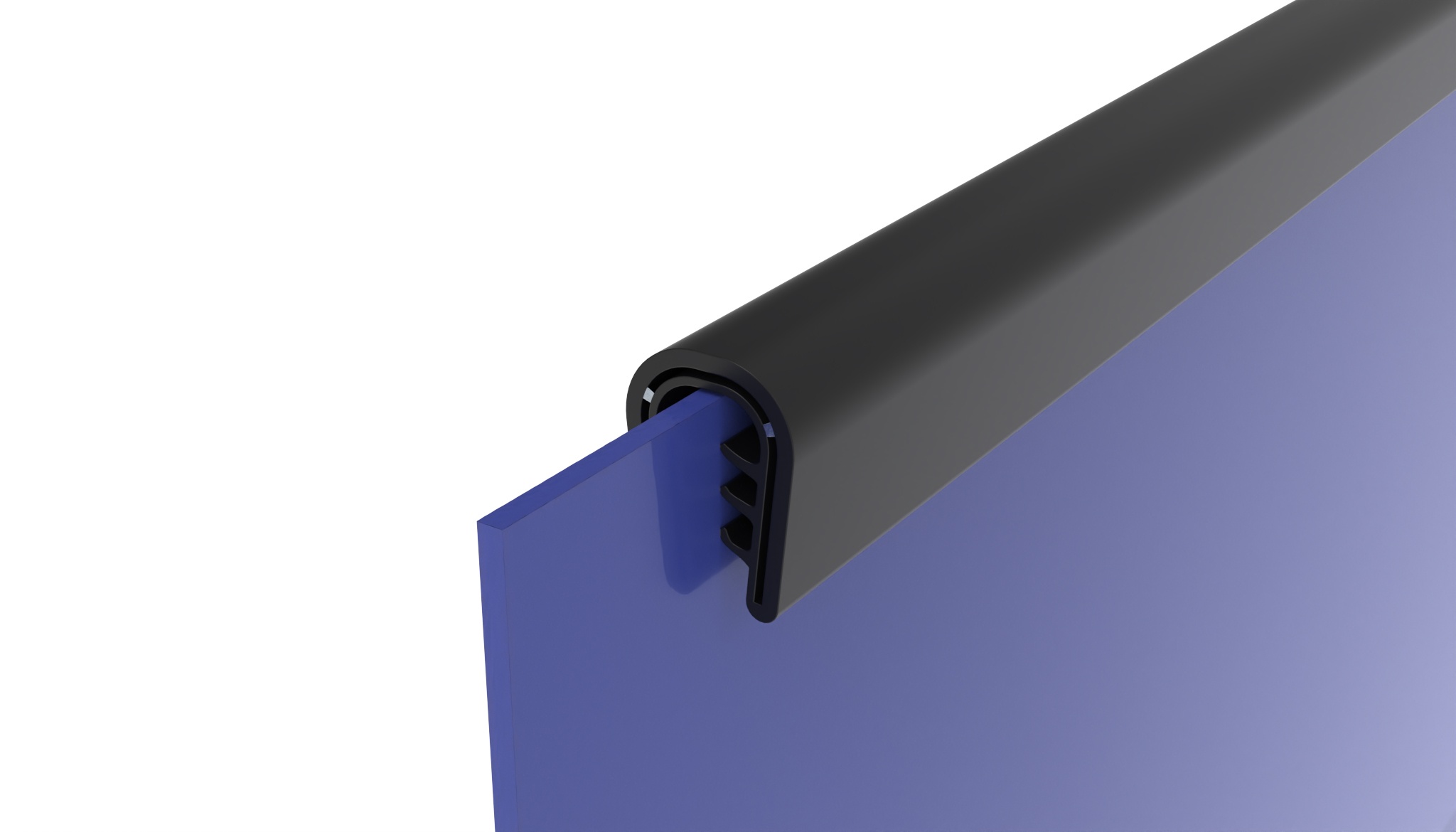

For protecting the edges of panels;
Self-clamping with split clamping band

Material:
Edge protector: Plastic PVC, 78 Shore A
Clamping lips: Plastic PVC, 57 Shore A
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Clamping band: Stainless steel, non-split, single-sided split on request
Other cross-sections on request

Zolltarifnummer:
39162000990
Cantidad por Paquete: 100 metros (rollo)
Weight (g/m): 69.0

Variantes

ID de producto Color Rango de Sujeción (mm)
087EPE05911 Negro 2.0 - 5.0

Descargas CAD
