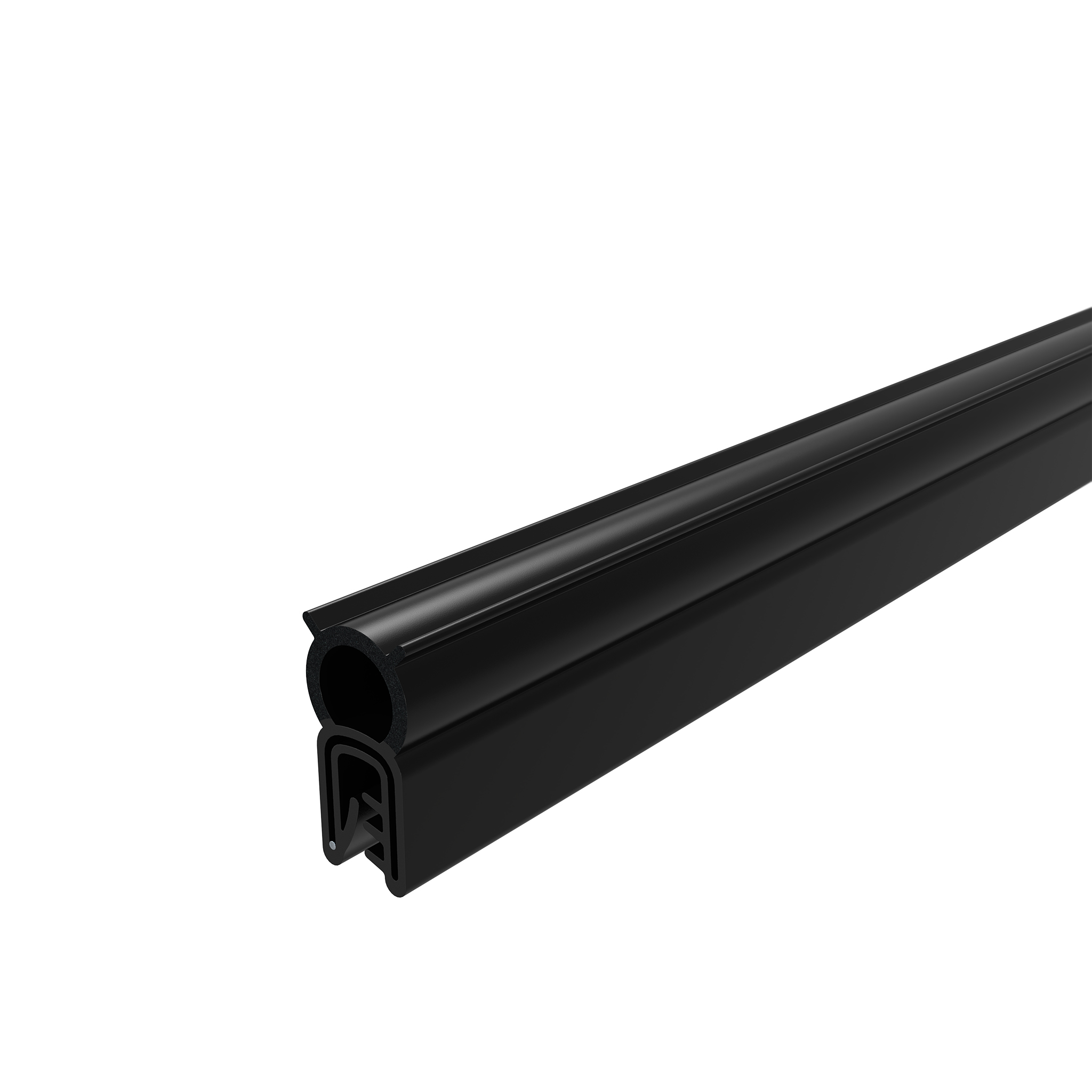

Perfil de junta para montaje a presión 11 x 21.5

Información sobre el producto "Perfil de junta para montaje a presión 11 x 21.5"

Color:
Negro, azul

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
Combination of edge protector and sealing profile;
Self-clamping with clamping band

Material:
Edge protector: Soft rubber EPDM / soft rubber NBR / soft rubber silicone
Sealing profile: Foam rubber EPDM / soft rubber NBR / soft rubber silicone
Clamping band: steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Clamping band: Stainless steel on request
Other cross-sections on request

Surface:
Plain / EMI film
Cantidad por Paquete: 100 metros (2 rollos a 50 m)
Weight (g/m): 106.0
Clamping Band: Wire carrier
Número de Arancel Aduanero de Exportación: 40082900
Numero de ERP: 124903

Variantes

Número de producto Material Color Rango de Sujeción (mm)
087SPET08911 EPDM / EPDM Negro 1.0 - 3.0
087SPET08911-BL EPDM / EPDM Azul ≈ RAL 5012 1.0 - 3.0
087SPET08911-EMI EMI / EPDM Negro 1.0 - 3.0
087SPET08911-SI Silicona Azul ≈ RAL 5005 1.0 - 3.0
087SPET08912 NBR / NBR Negro 1.0 - 3.0

Descargas CAD
