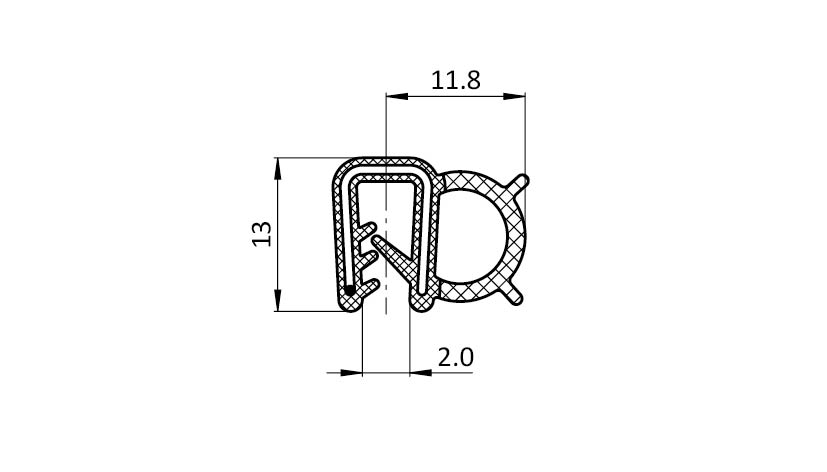

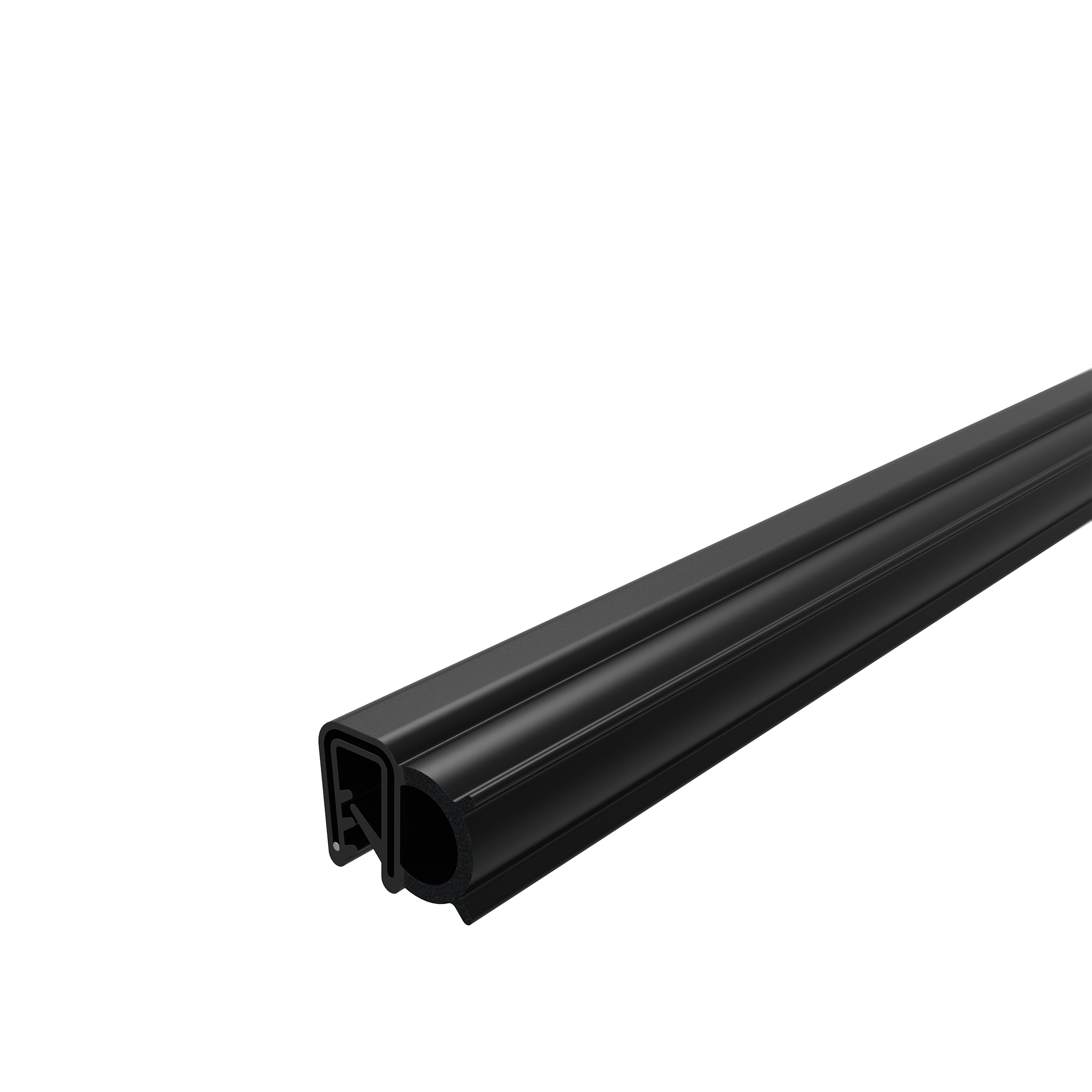

Perfil de junta para montaje a presión 11.8 x 13

Información sobre el producto "Perfil de junta para montaje a presión 11.8 x 13"

Color:
Negro, azul

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

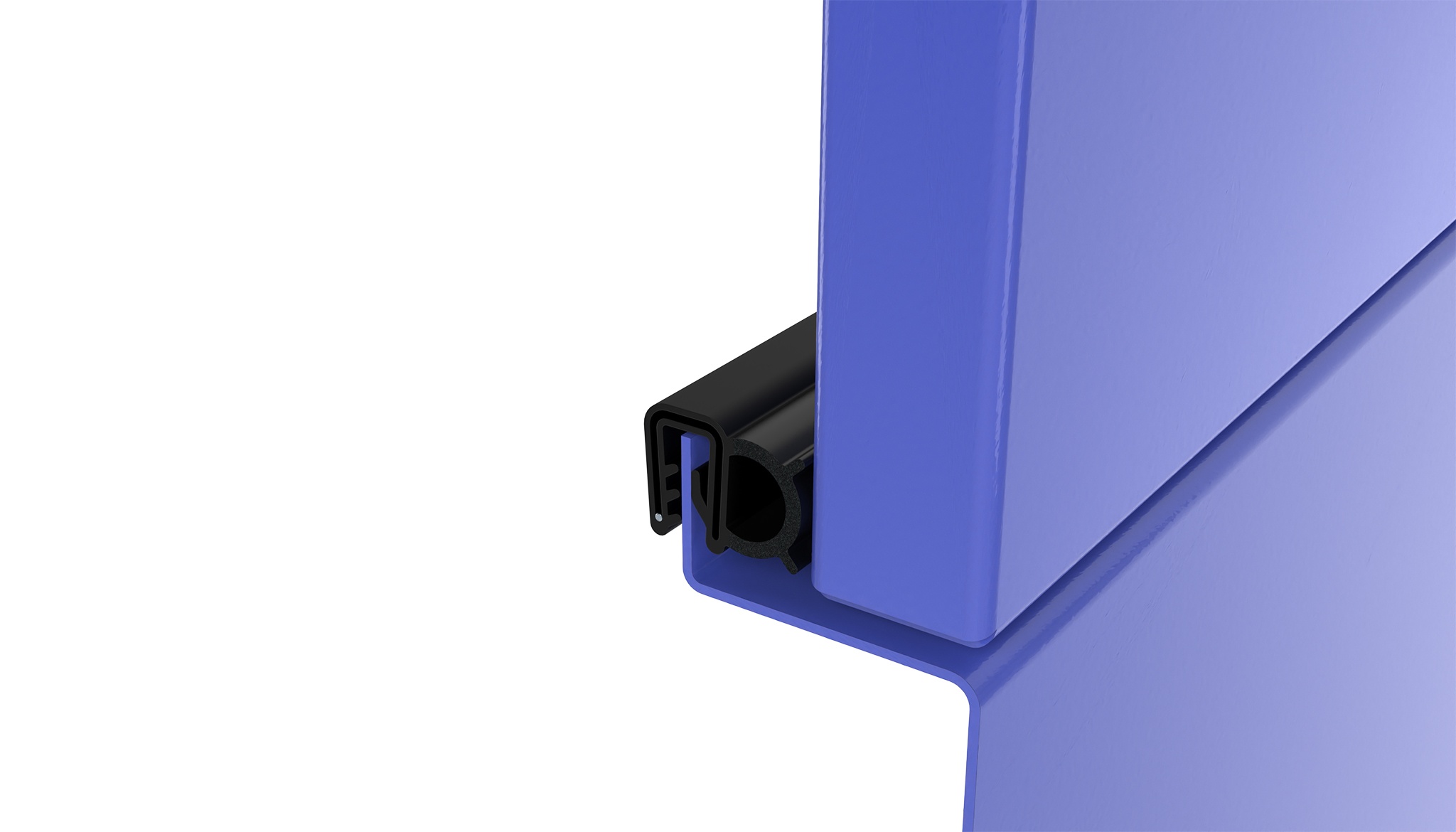

Combination of edge protector and sealing profile;
Self-clamping with clamping band

Material:
Edge protector: Soft rubber EPDM / soft rubber NBR / soft rubber silicone
Sealing profile: Foam rubber EPDM / soft rubber NBR / soft rubber silicone
Clamping band: steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Finishing: Flame resistant, anti-fungal on request
Clamping band: Stainless steel on request
Other cross-sections on request

Surface:
Plain / EMI film
Cantidad por Paquete: 100 metros (2 rollos a 50 m)
Número de Arancel Aduanero de Exportación: 40082900
Weight (g/m): 99.0
Numero de ERP: 124911

Variantes

Número de producto Rango de Sujeción (mm) Color Material Cantidad por Paquete
087SPES11911 2.0 Negro EPDM / EPDM 100 metros (2 rollos a 50 m)
087SPES11911-BL 2.0 Azul ≈ RAL 5012 EPDM / EPDM 100 metros (2 rollos a 50 m)
087SPES11911-EMI 2.0 Negro EMI / EPDM 100 metros (2 rollos a 50 m)
087SPES11911-SI 2.0 Azul ≈ RAL 5005 Silicona 100 metros (2 rollos a 50 m)
087SPES11912 2.0 Negro NBR / NBR 100 metros (2 rollos a 50 m)

Descargas CAD
