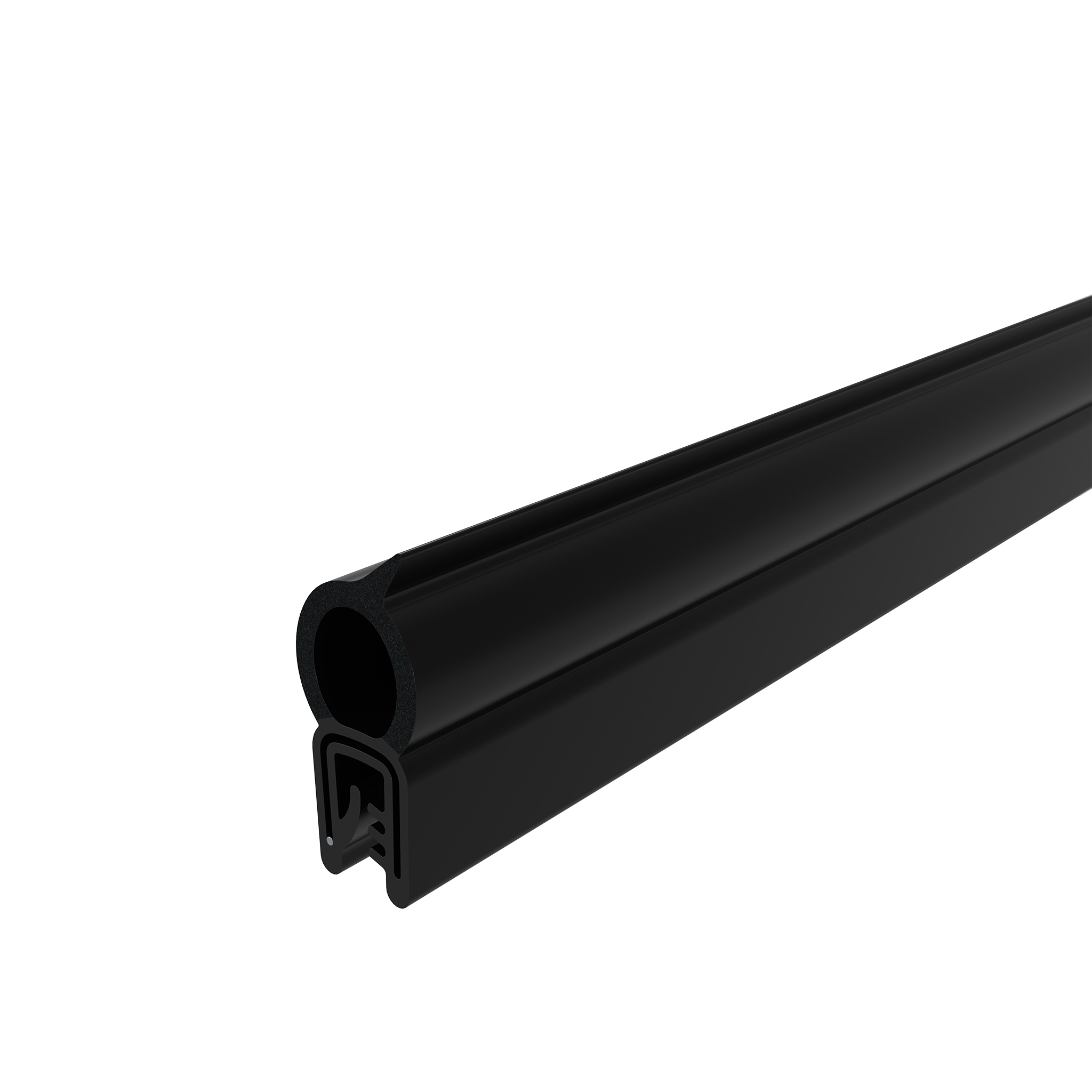

Perfil de junta para montaje a presión 13 x 29.5

Información sobre el producto "Perfil de junta para montaje a presión 13 x 29.5"

Color:
Negro

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

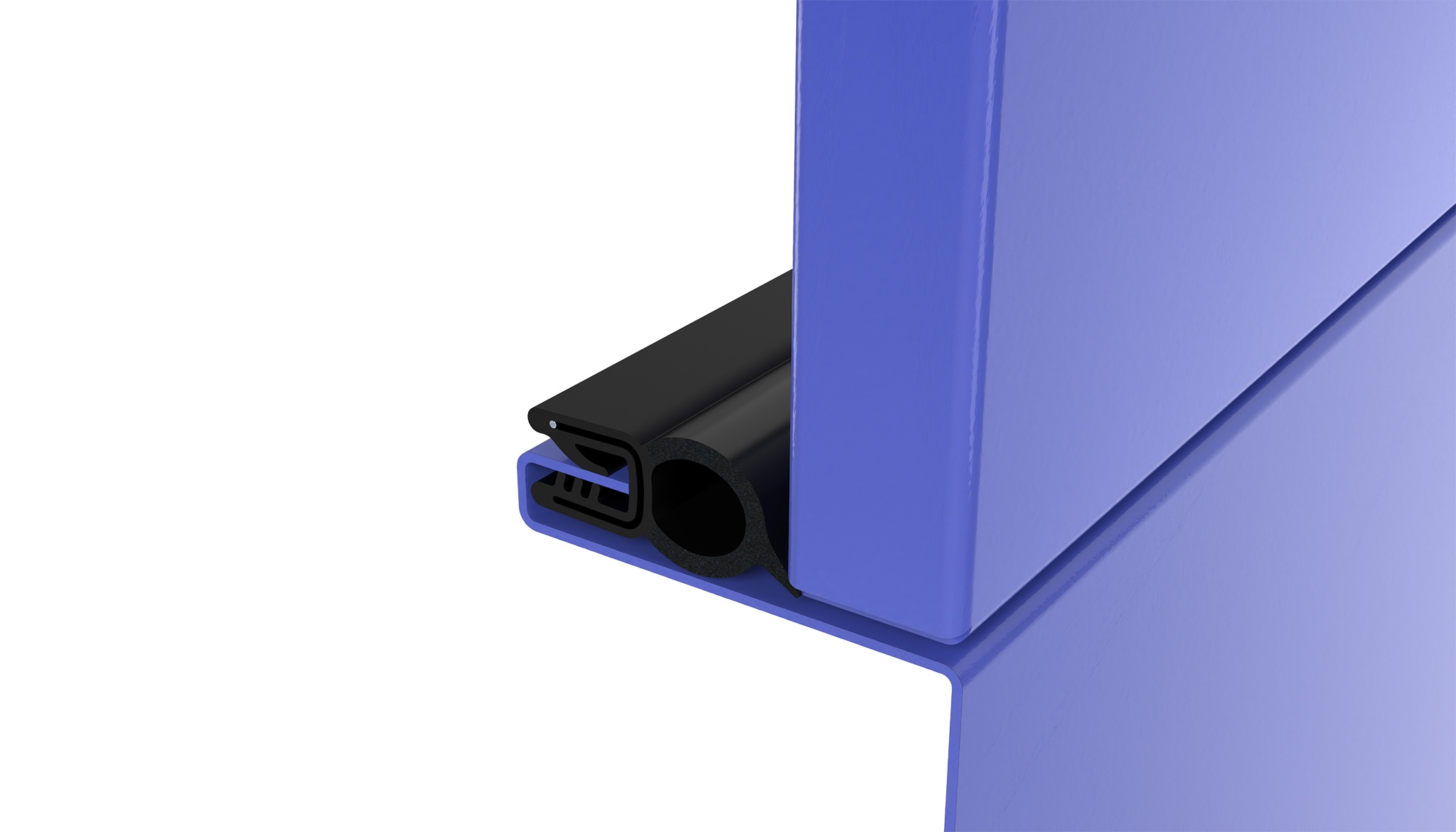

Combination of edge protector and sealing profile;
Self-clamping with clamping band

Material:
Edge protector: Soft rubber EPDM
Sealing profile: Foam rubber EPDM
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Clamping band: Stainless steel on request
Other cross-sections on request

Zolltarifnummer:
40082900900
Cantidad por Paquete: 100 metros (2 rollos a 50 m)
Weight (g/m): 154.0

Variantes

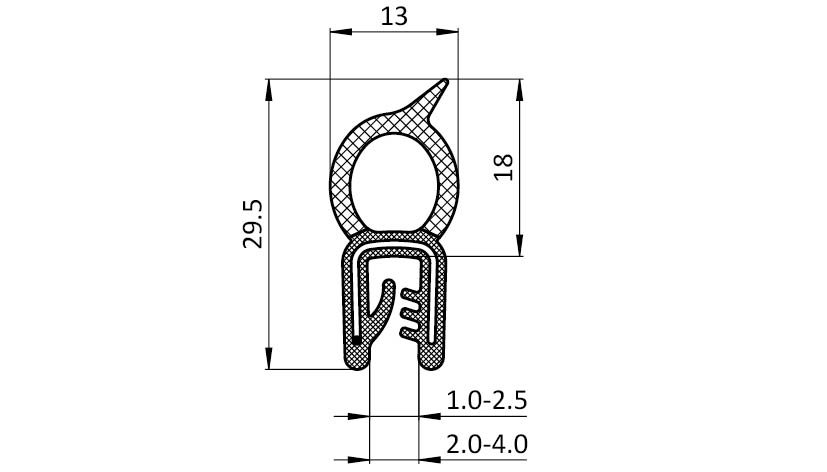

ID de producto Material Color Rango de Sujeción (mm)
087SPET09911 EPDM / EPDM Negro 1.0 - 2.5
087SPET09912 EPDM / EPDM Negro 2.0 - 4.0

Descargas CAD
