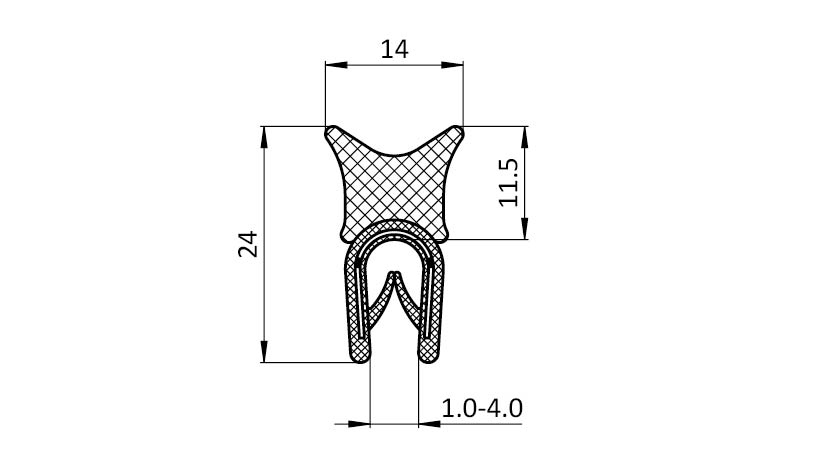

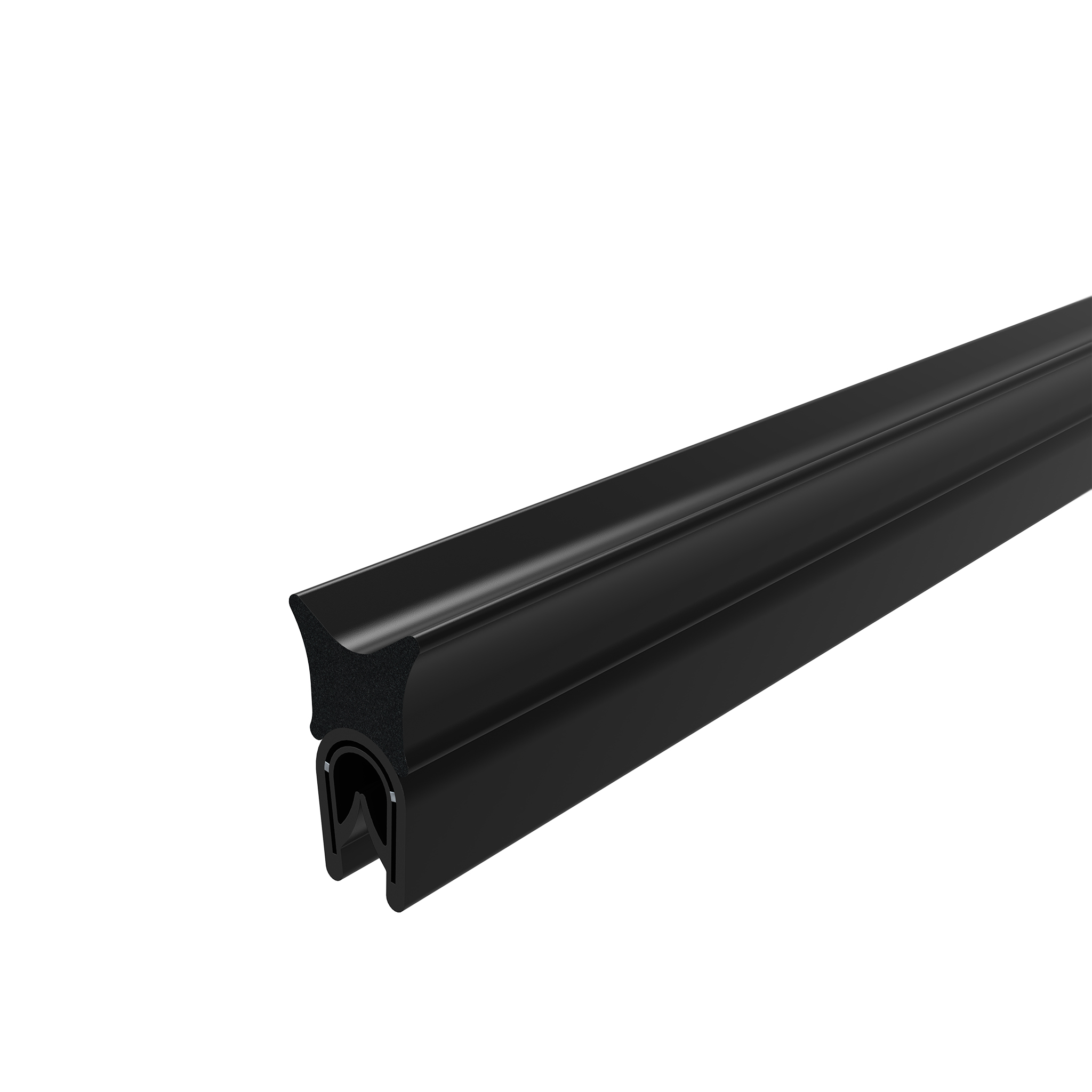

Perfil de junta para montaje a presión 14 x 24

Información sobre el producto "Perfil de junta para montaje a presión 14 x 24"

Color:
Edge protector: Black
Clamping lips: Transparent
Sealing profile: Black

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

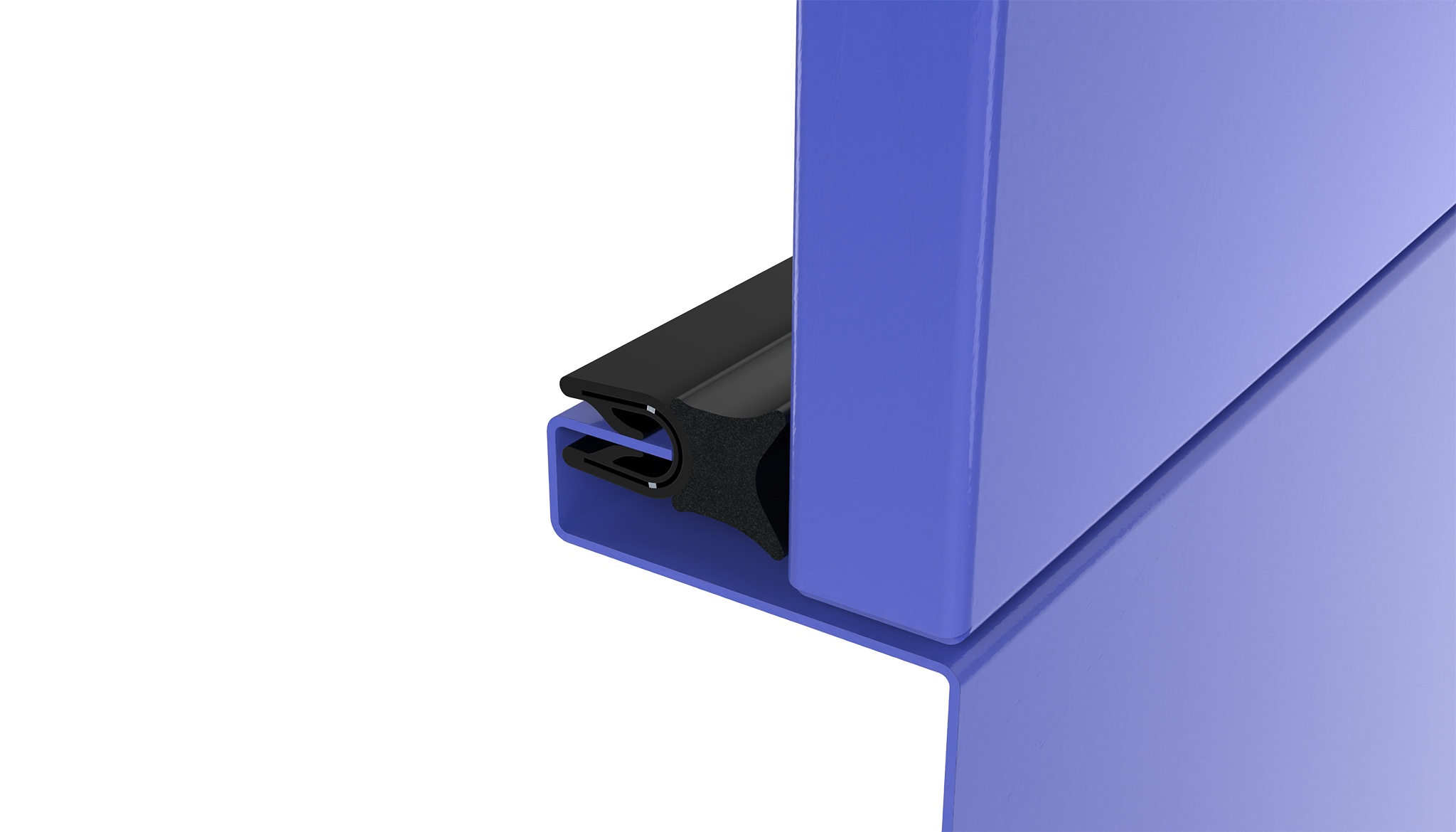

Combination of edge protector and sealing profile;
Self-clamping with split clamping band

Material:
Edge protector: Plastic PVC, 78 Shore A
Clamping lips: Plastic PVC, 57 Shore A
Sealing profile: Foam rubber EPDM
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Clamping band: Stainless steel, non-split, single-sided split on request
Other cross-sections on request

Zolltarifnummer:
39162000990
Cantidad por Paquete: 50 metros (rollo)
Weight (g/m): 171.0

Variantes

ID de producto Color Rango de Sujeción (mm) Material
087SPET10911 Negro 1.0 - 4.0 EPDM / PVC

Descargas CAD
