Perfil de junta para montaje a presión 19.2 x 16

Información sobre el producto "Perfil de junta para montaje a presión 19.2 x 16"

Color:
Negro

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

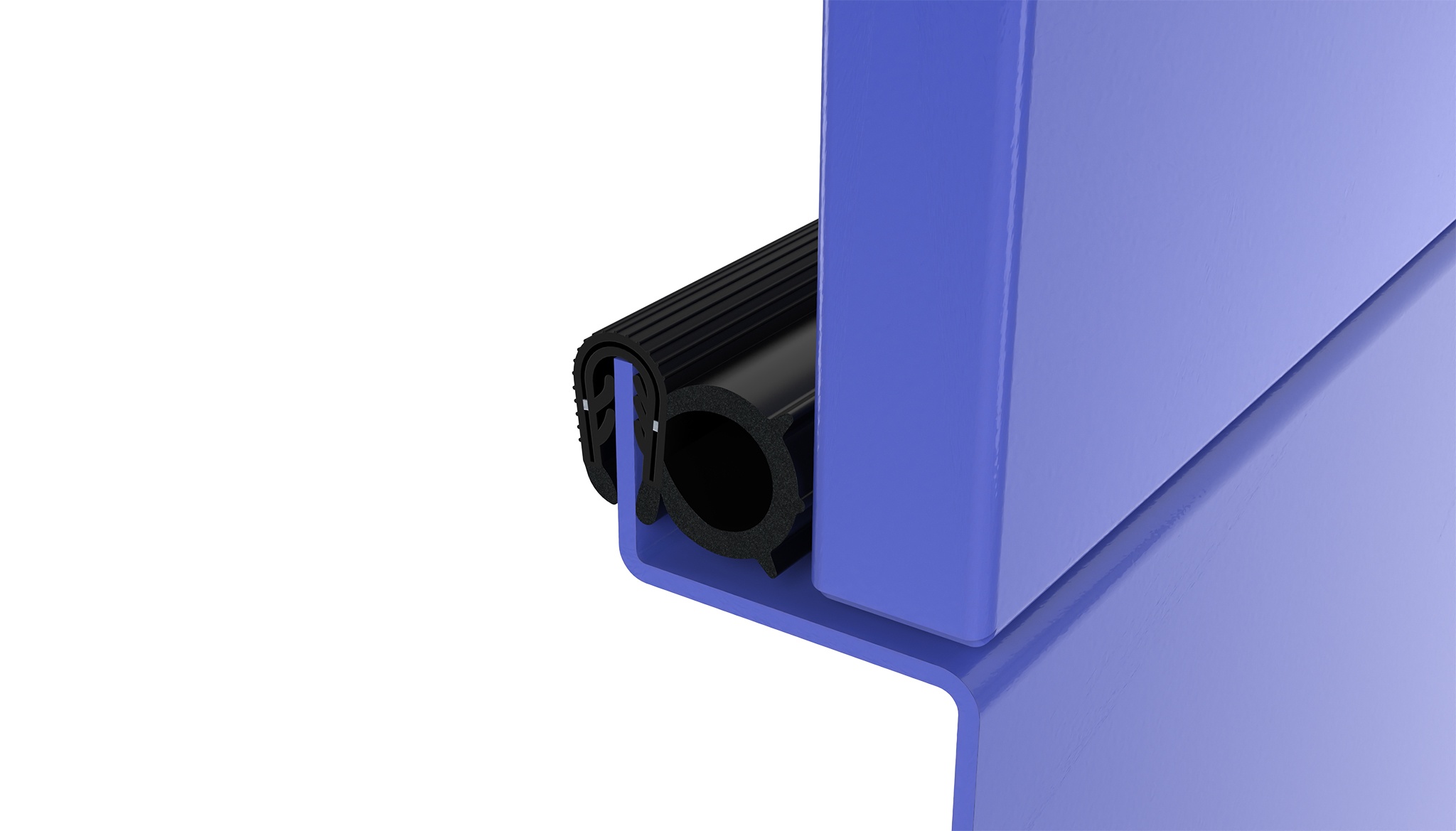

Combination of edge protector and sealing profile;
Self-clamping with split clamping band

Material:
Edge protector: Soft rubber EPDM
Sealing profile: Foam rubber EPDM
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Finishing: Flame resistant, anti-fungal on request
Clamping band: Stainless steel, non-split, single-sided split on request
Other cross-sections on request

Zolltarifnummer:
40082900900
Cantidad por Paquete: 75 metros (3 rollos a 25 m)
Cantidad por Paquete (1): 75
Weight (g/m): 215.0

Variantes

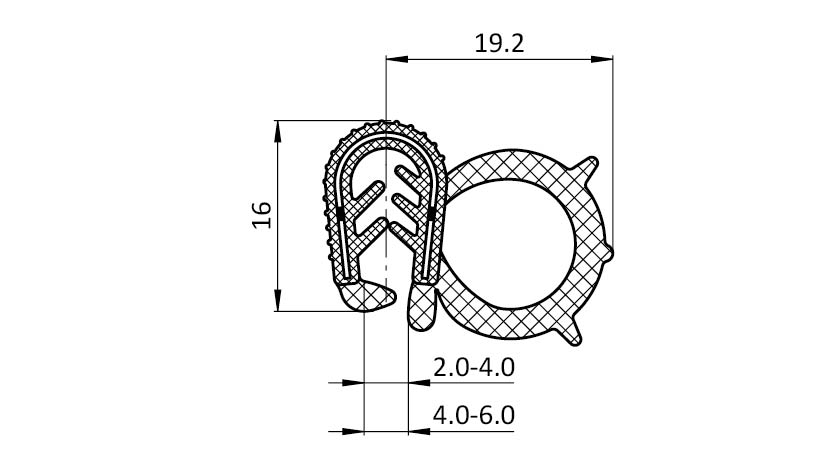

ID de producto Material Color Rango de Sujeción (mm)
087SPES12911 EPDM / EPDM Negro 2.0 - 4.0
087SPES12912 EPDM / EPDM Negro 4.0 - 6.0

Descargas CAD
