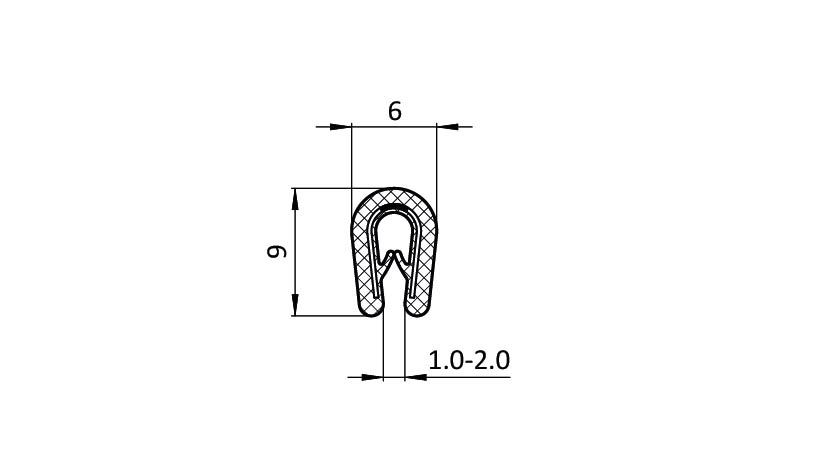

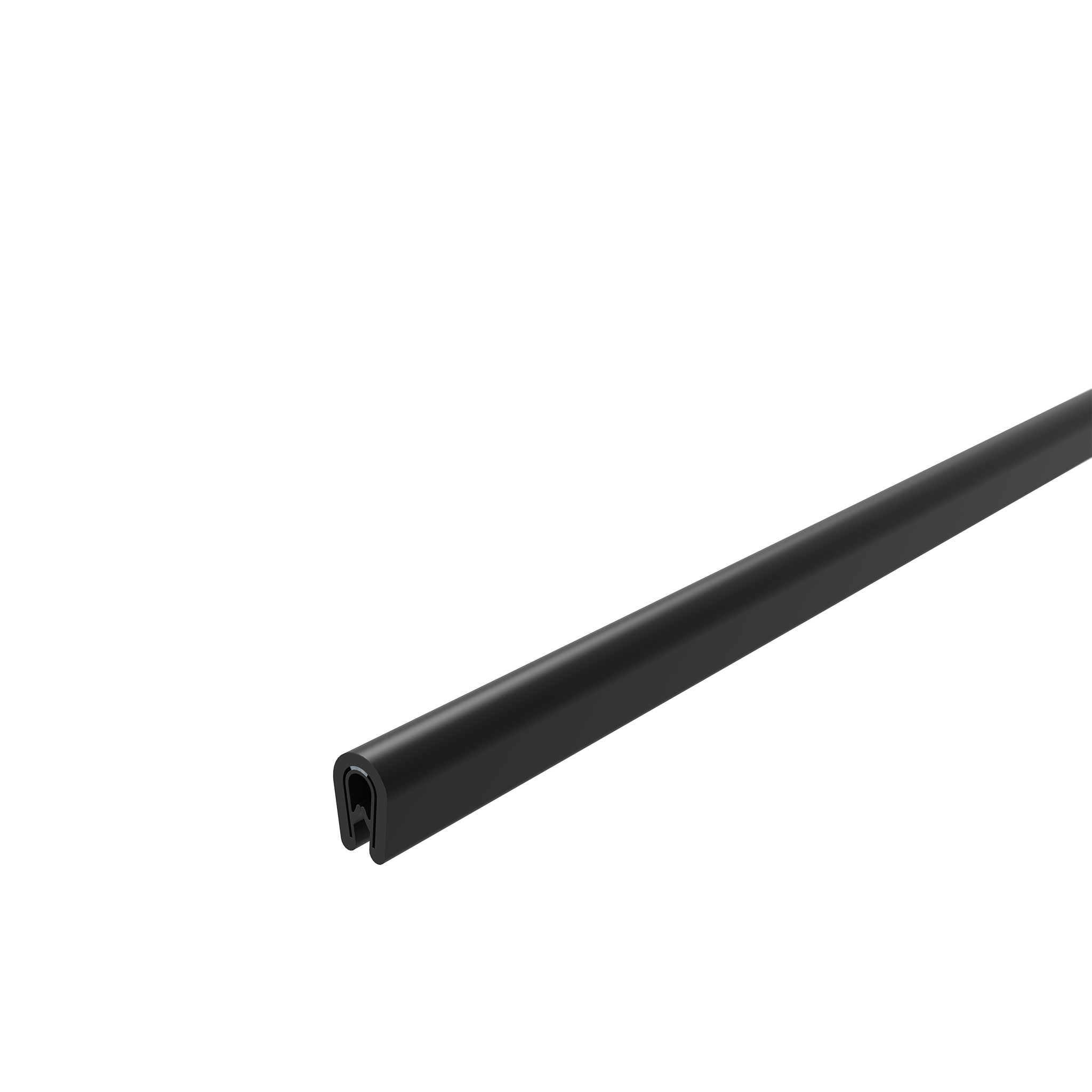

Perfil de junta para montaje a presión 6 x 9

Información sobre el producto "Perfil de junta para montaje a presión 6 x 9 "

Color:
Negro, blanco, gris

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

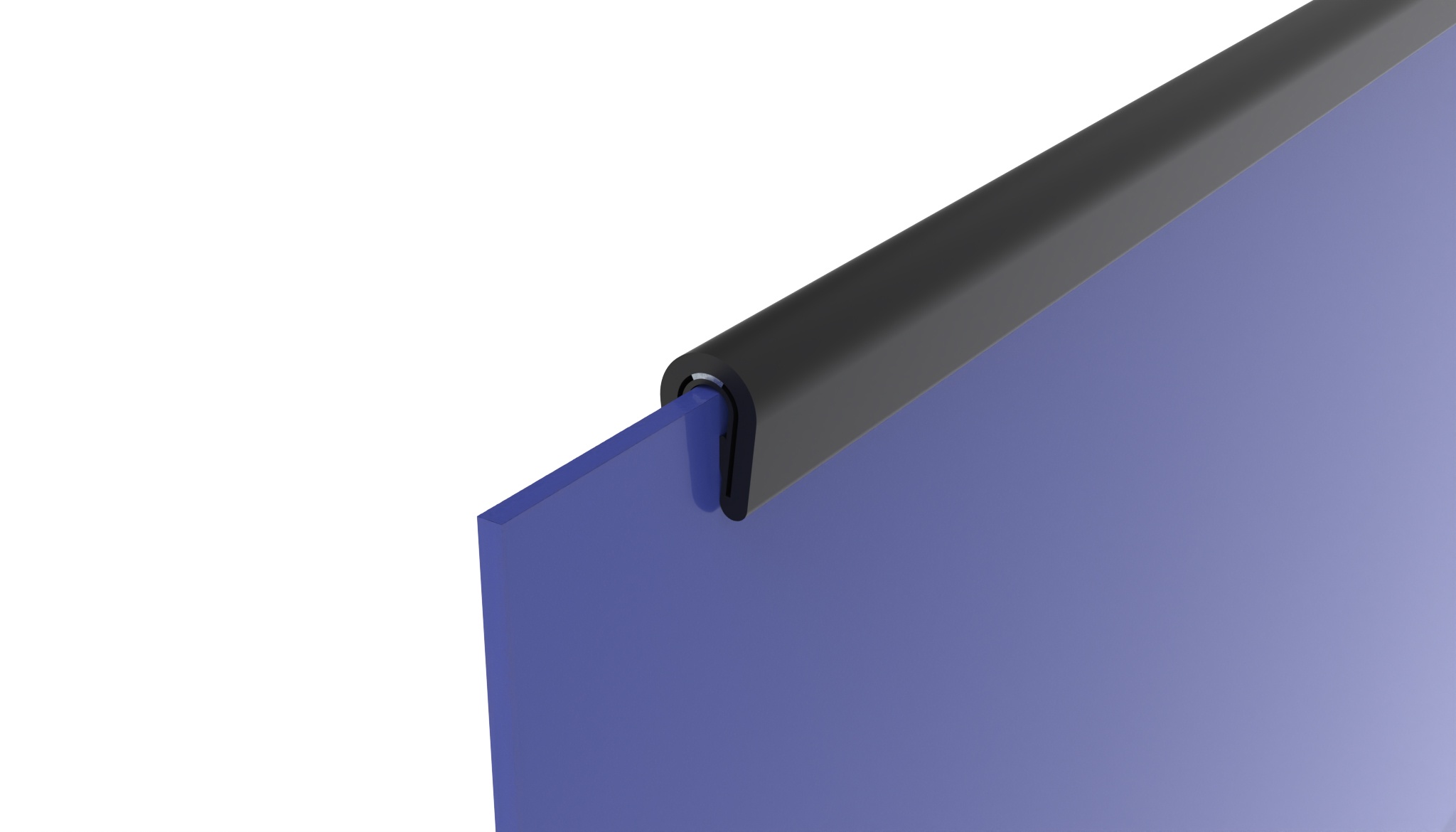

For protecting the edges of panels;
Self-clamping with split clamping band

Material:
Edge protector: Plastic PVC, 78 Shore A
Clamping band: Steel

Specials:
Edge protector: Other colors, Butyl sealant on request
Clamping band: Stainless steel, non-split on request
Other cross-sections on request

Zolltarifnummer:
39162000990
Cantidad por Paquete: 100 metros (rollo)
Weight (g/m): 32.0

Variantes

ID de producto Rango de Sujeción (mm) Color
087EPE01711 1.0 - 2.0 Gris ≈ RAL 7042
087EPE01911 1.0 - 2.0 Negro
087EPE01931 1.0 - 2.0 Blanco ≈ RAL 9016

Descargas CAD
