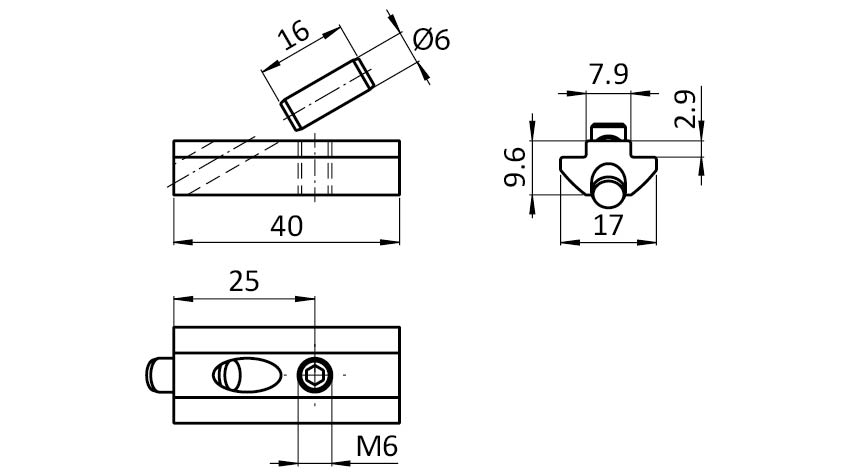

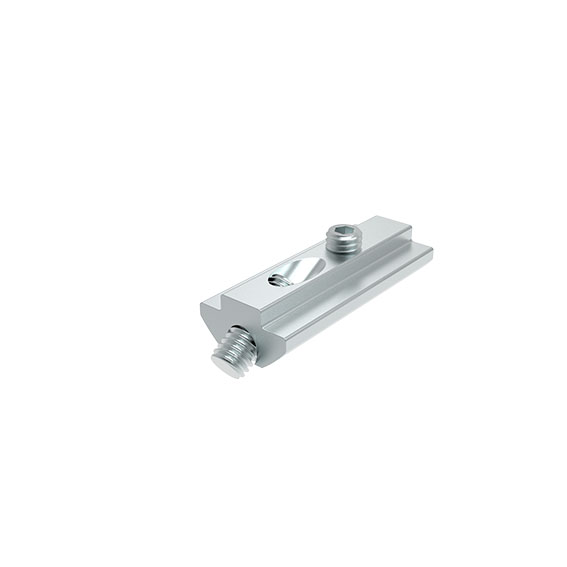

Pin T-slot Nut I, Slot 8

Información sobre el producto "Pin T-slot Nut I, Slot 8"

Países de Entrega:
En todo el mundo

Description:

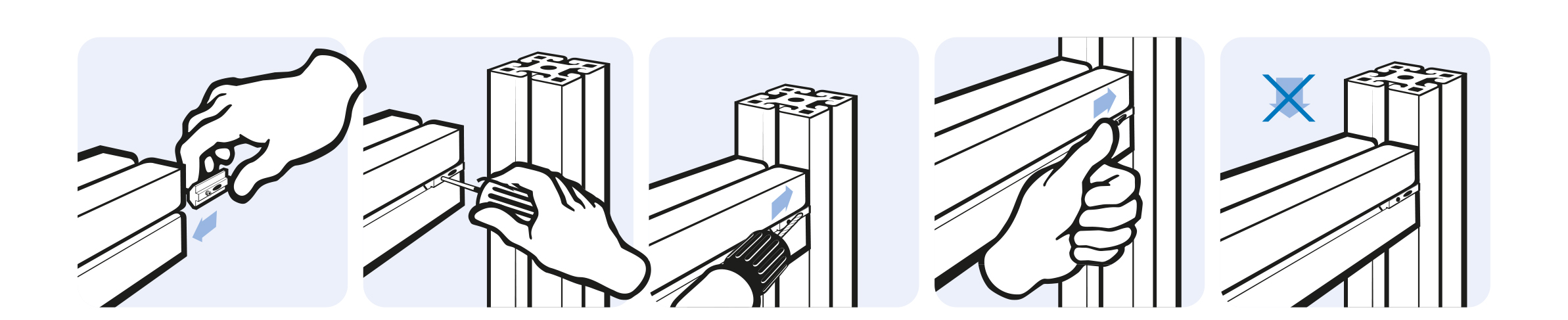

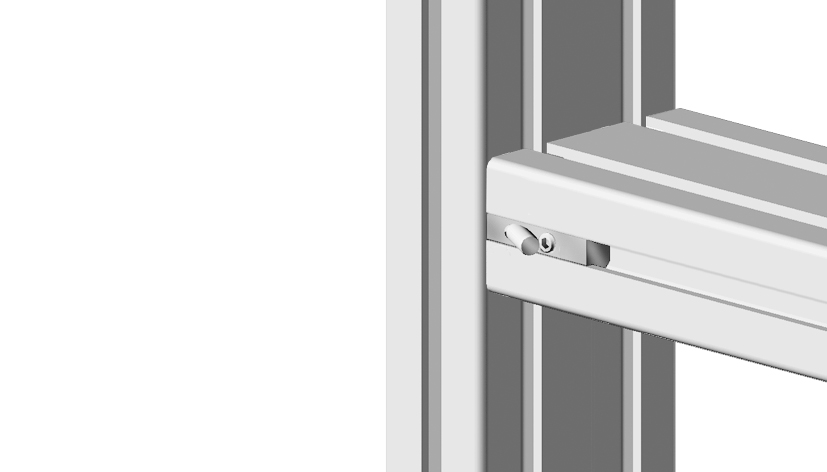

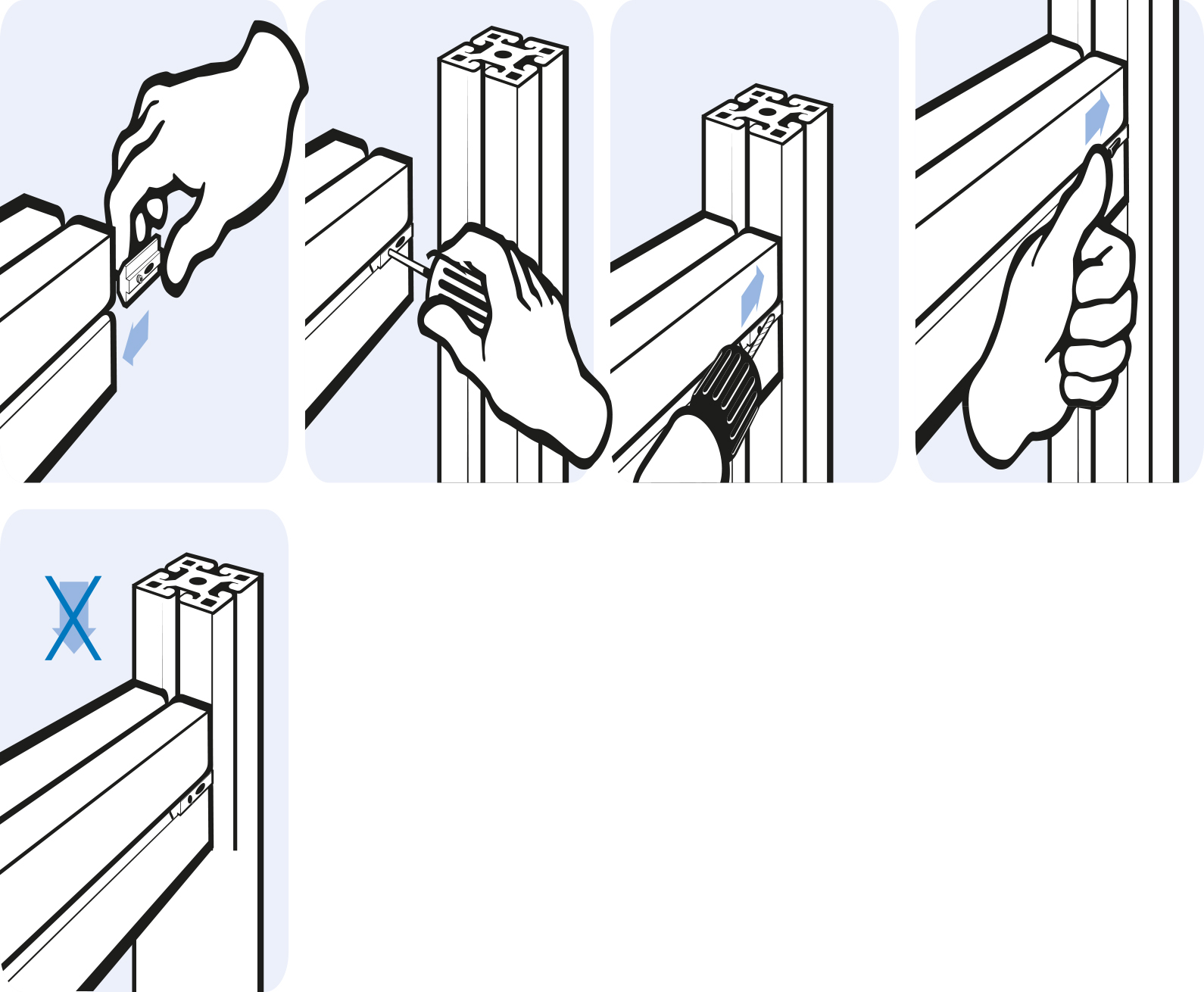

To enhance the stability of a connection against displacement; a Ø 5.9 mm hole must be drilled into one profile

Material:
Pin T-slot nut: Steel
Straight pin DIN 7979 D6 m6 x 16: Steel
Hexagon socket set screw DIN 916 M6 x 12: Steel

Superficie:
Galvanizado

Zolltarifnummer:
73181900900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas
Model: Steel, slot 8
Peso (g): 35.6

Variantes

ID de producto Profile Ranura N (mm)
096060S13 I 8
