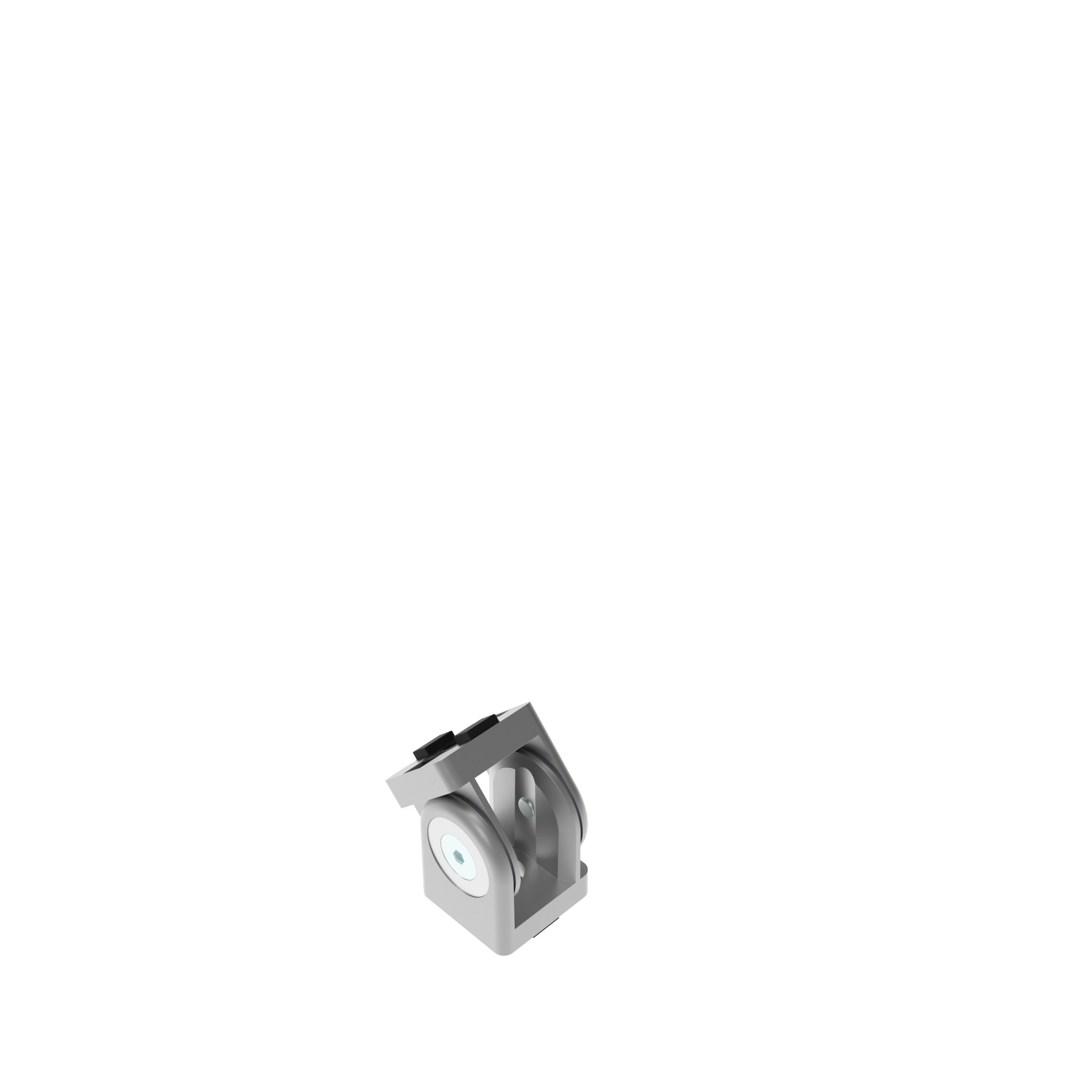

Pivot Joint 20

Información sobre el producto "Pivot Joint 20"

Color:
Color aluminio

Países de Entrega:
En todo el mundo

Description:

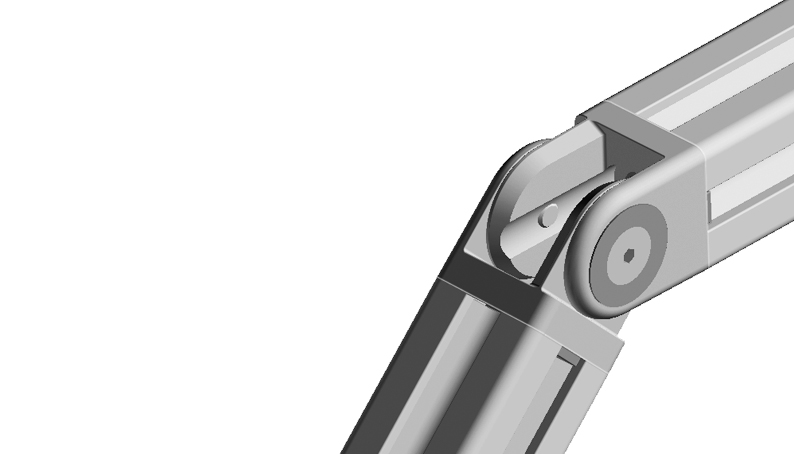

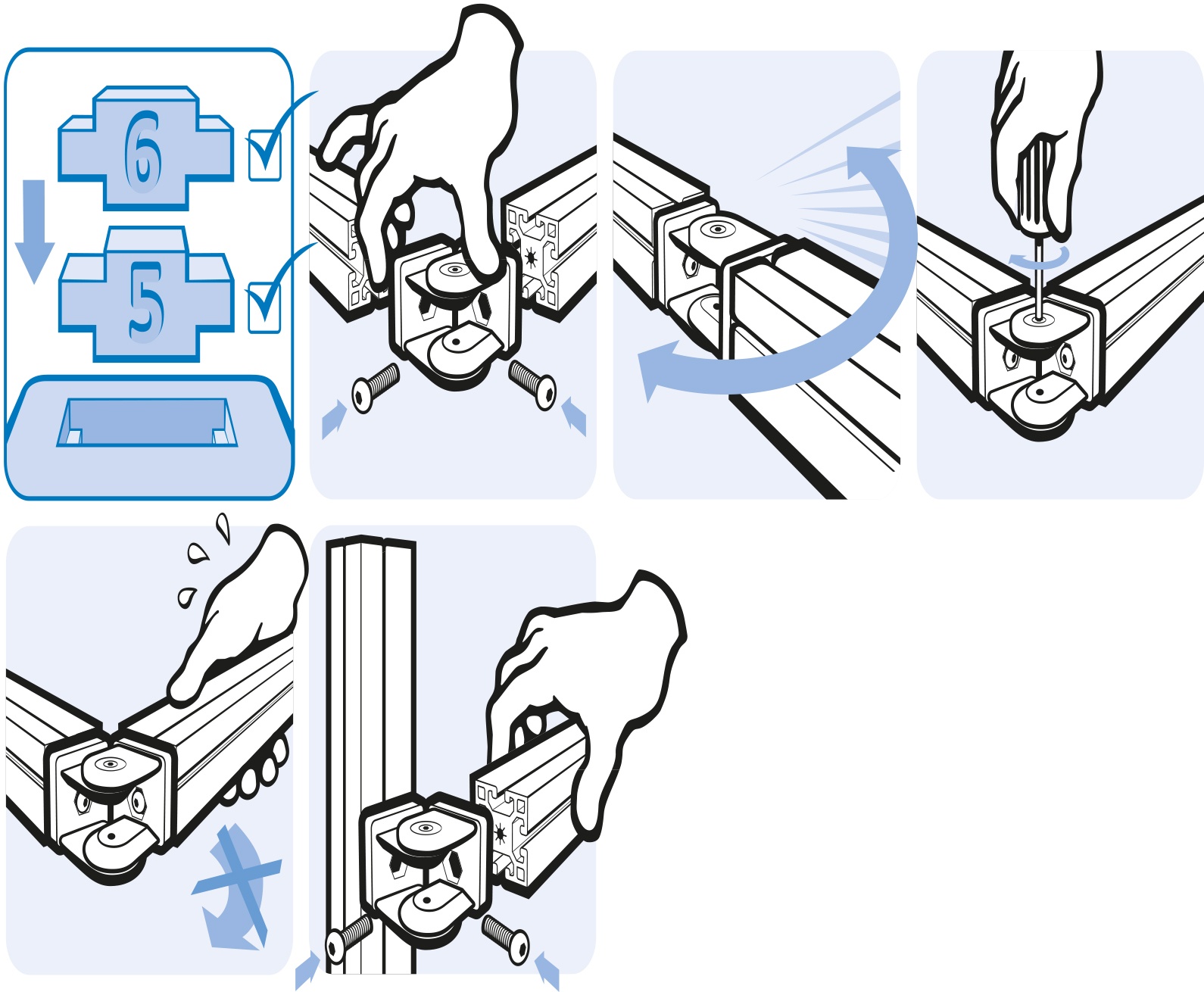

To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Aluminio fundido a presión

Superficie:
Polvo cubierto

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Cantidad por Paquete: 10 piezas
Model: With adjustable friction, aluminum die-cast
Peso (g): 18.0

Variantes

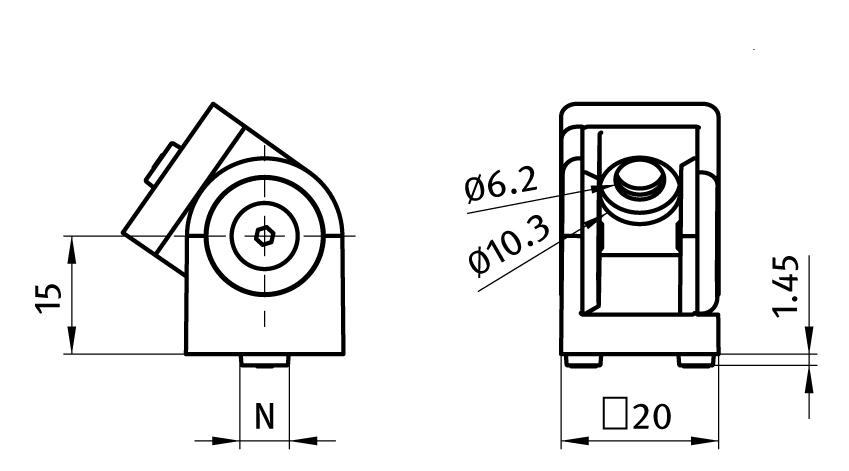

ID de producto Ranura N (mm) Ángulo de apertura
093GA20AN 5 / 6 190°
