Pivot Joint 38 x 76 - 1.5" x 3"

Información sobre el producto "Pivot Joint 38 x 76 - 1.5" x 3""

Color:
Color aluminio

Países de Entrega:
En todo el mundo

Description:

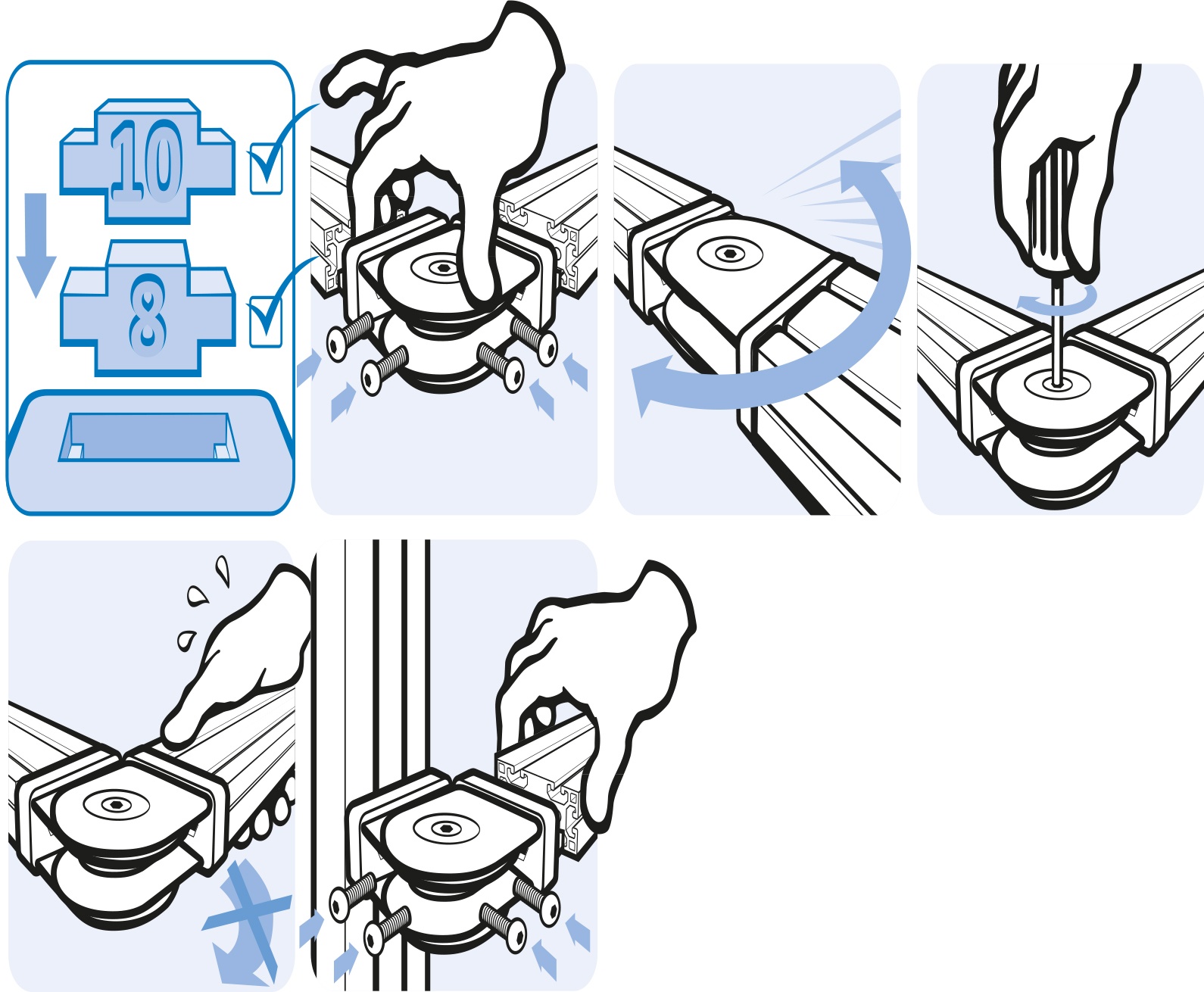

To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position

Material:
Fundición a presión de zinc

Especiales:
Otras superficies, otros colores bajo pedido

Superficie:
Polvo cubierto

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360301
(ECLASS 7.0): 23360301
(ECLASS 8.0): 23360301
(ECLASS 9.0): 23360301
(ECLASS 10.0): 23360301
(ECLASS 11.0): 23360301
(ECLASS 12.0): 23360301
(ECLASS 13.0): 23360301
Cantidad por Paquete: 10 piezas
Model: With adjustable friction, zinc die-cast
Peso (g): 947.0

Variantes

ID de producto Ranura N (mm) Ángulo de apertura
093G3876AN 8 / 10 184°
