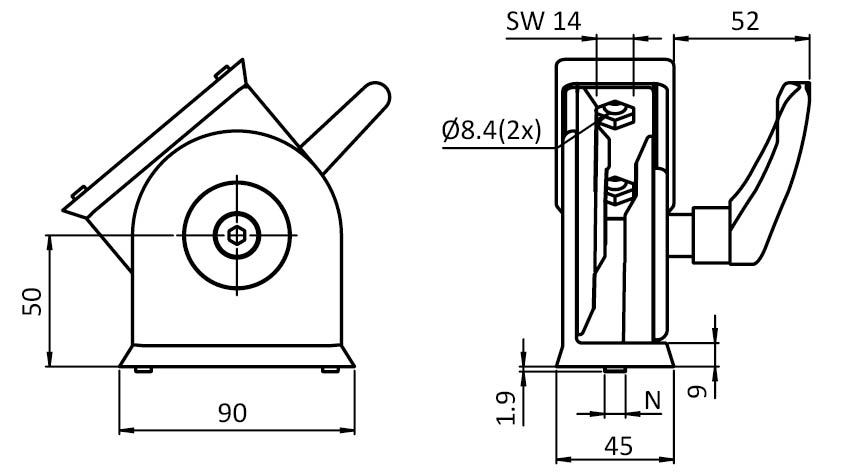

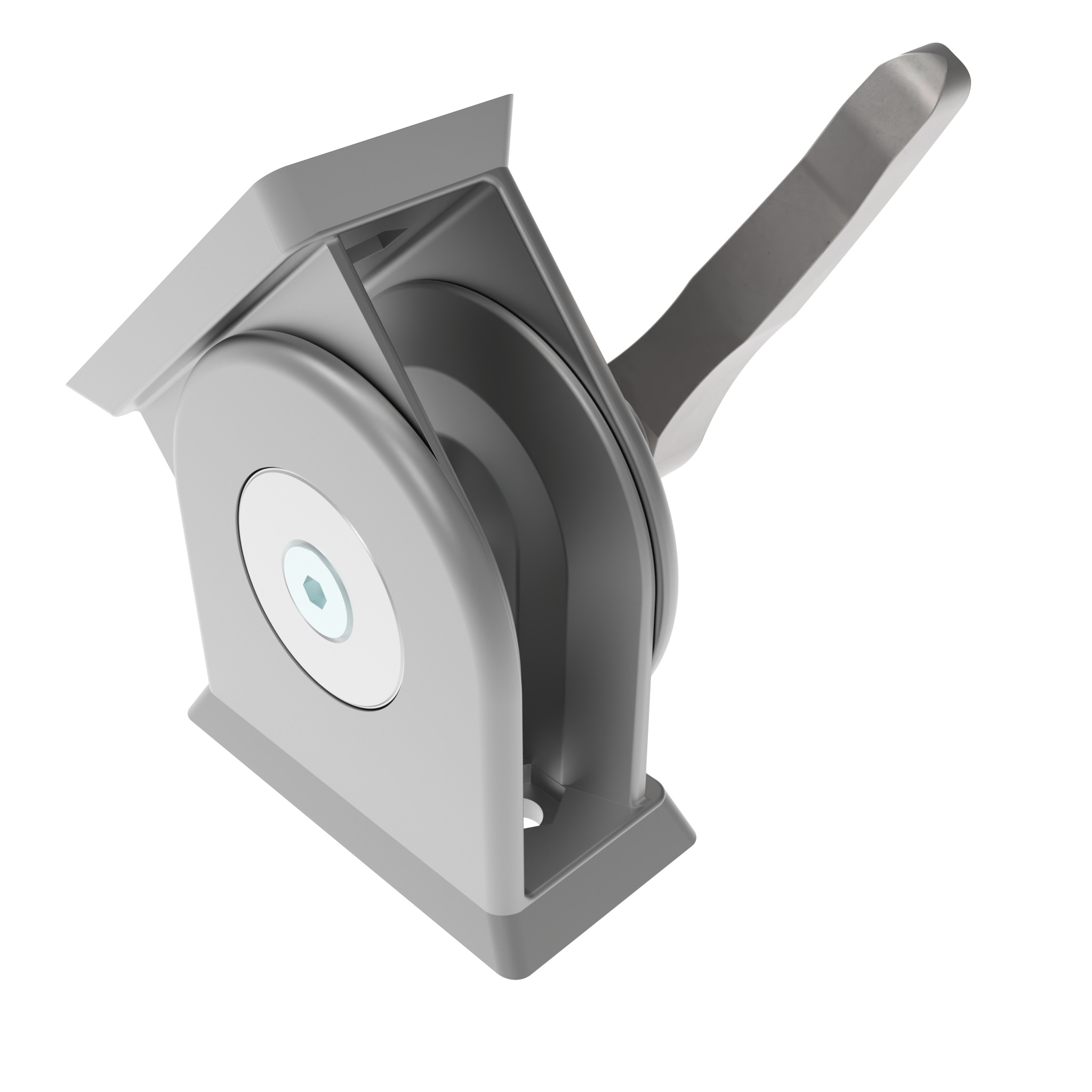

Pivot Joint 45 x 90 with Locking Lever
Precio normal:
0,00 €
Número de producto:
093GAF4590AN
Cantidad por paquete:
1 pieza
Descripción:

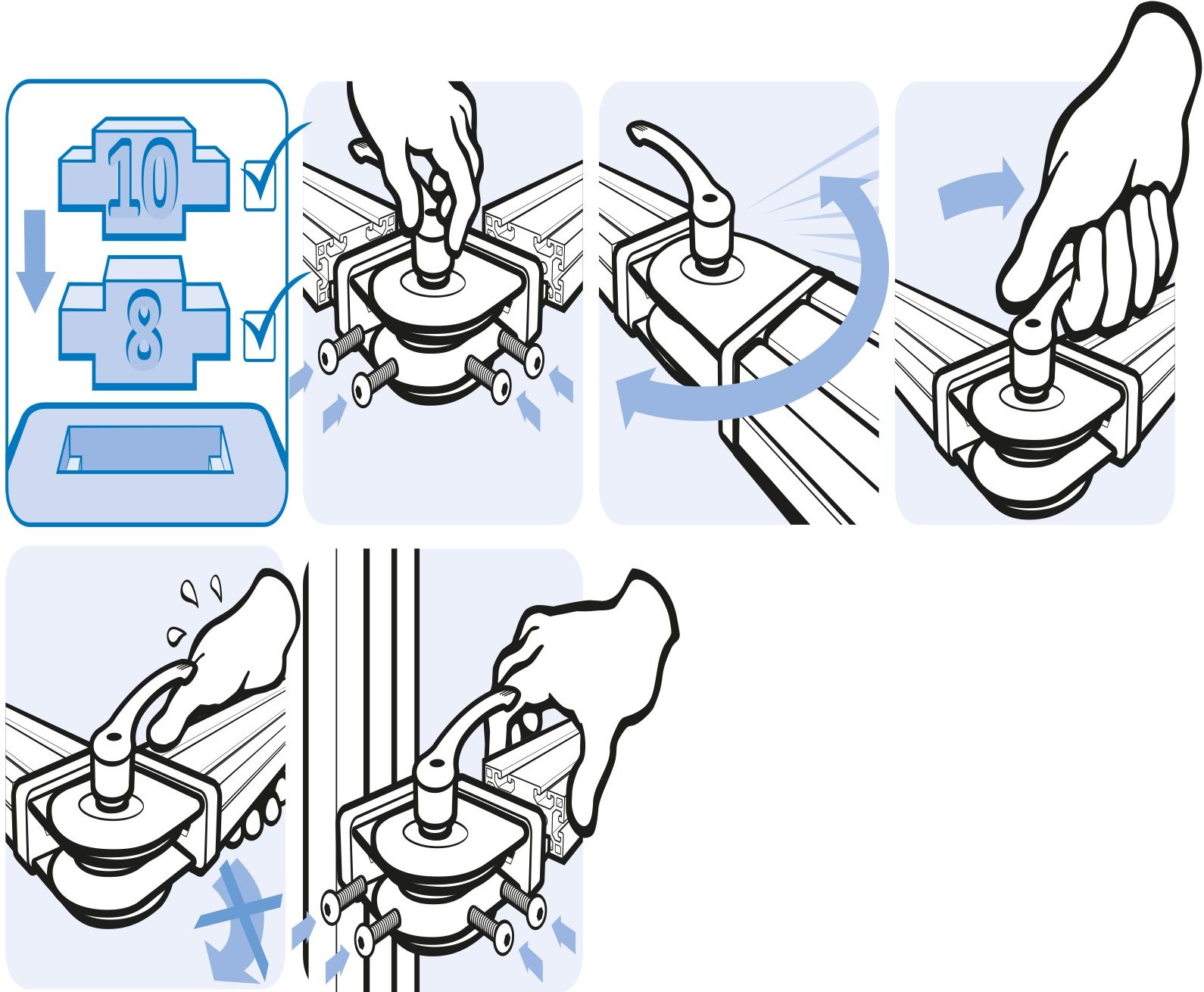

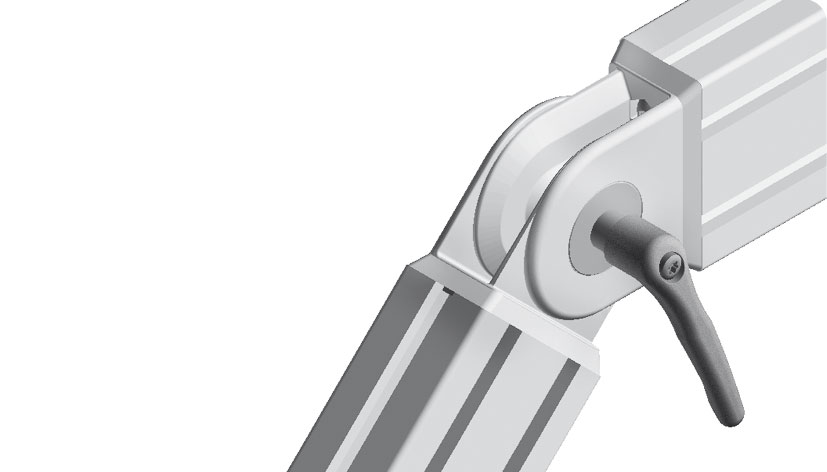

To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
Material:
Joint: Aluminum die-cast
KIPP-locking lever: Zinc die-cast
Surface:
Joint: Powder coated
KIPP-locking lever: silver metallic plastic coated
Color:
Color alu
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Especiales:
Otras superficies, otros colores bajo pedido
Países de Entrega:
En todo el mundo
Joint: Aluminum die-cast
KIPP-locking lever: Zinc die-cast
Surface:
Joint: Powder coated
KIPP-locking lever: silver metallic plastic coated
Color:
Color alu
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Especiales:
Otras superficies, otros colores bajo pedido
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 1 pieza |
|---|---|
| Model: | Aluminio fundido a presión |
| Peso (g): | 500.0 |
| Numero de ERP: | 161849 |
Clasificación
- ECLASS 6.0
- 23360301
- ECLASS 7.0
- 23360301
- ECLASS 8.0
- 23360301
- ECLASS 9.0
- 23360301
- ECLASS 10.0
- 23360301
- ECLASS 11.0
- 23360301
- ECLASS 12.0
- 23360301
- ECLASS 13.0
- 23360301
- Zolltarifnummer
- 76169910990
- Número de Arancel Aduanero de Exportación
- 76169910
Certificados
Omitir la galería de productos
Accesorios adecuados
Cutting Bush with Shank
Precio normal:
0,00 €
Material:
Acero
Profile:
I / B
Superficie:
Galvanizado
Description:For reduction from core hole 10.2 mm to M8 threadMaterial:AceroSuperficie:GalvanizadoTip:Compatible Screw-in Tool for Cutting Bush with Shank see 09308802Países de Entrega:En todo el mundo
