Pivot Joint 45 x 90
Número de producto:
093GA4590AN
Información sobre el producto "Pivot Joint 45 x 90"
Color:
Color aluminio
Países de Entrega:
En todo el mundo
Description:

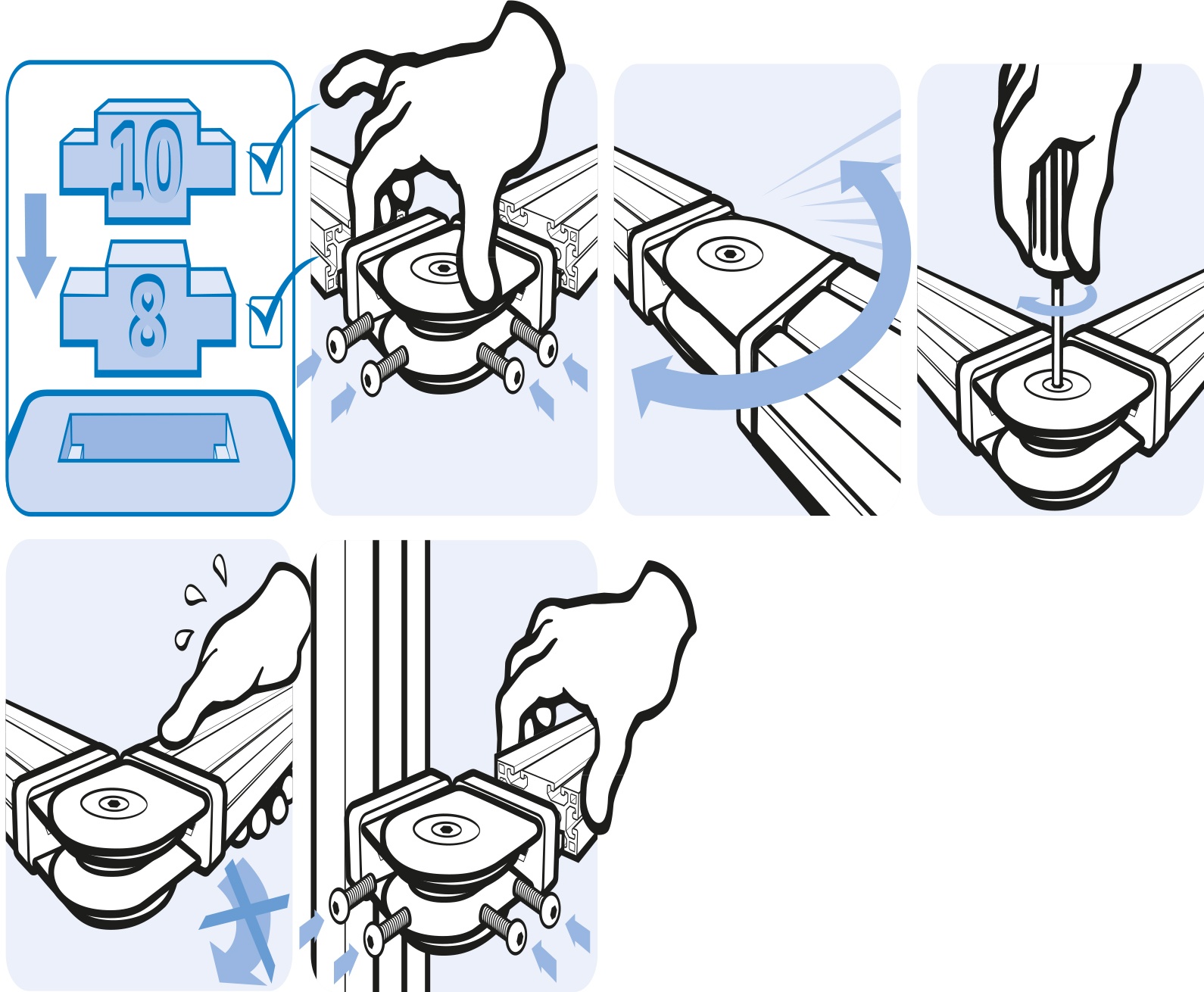

To make a pivoting connection between two profiles or panels; with separate locating pins for slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
Material:
Aluminio fundido a presión
Especiales:
Otras superficies, otros colores bajo pedido
Superficie:
Polvo cubierto
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Color aluminio
Países de Entrega:
En todo el mundo
Description:
To make a pivoting connection between two profiles or panels; with separate locating pins for slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
Material:
Aluminio fundido a presión
Especiales:
Otras superficies, otros colores bajo pedido
Superficie:
Polvo cubierto
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
| (ECLASS 6.0): | 23360301 |
|---|---|
| (ECLASS 7.0): | 23360301 |
| (ECLASS 8.0): | 23360301 |
| (ECLASS 9.0): | 23360301 |
| (ECLASS 10.0): | 23360301 |
| (ECLASS 11.0): | #N/A |
| (ECLASS 12.0): | 23360301 |
| (ECLASS 13.0): | 23360301 |
| Cantidad por Paquete: | 10 piezas |
| Model: | With adjustable friction, aluminum die-cast |
| Numero de PA: | 161846 |
| Número de Arancel Aduanero de Exportación: | 79070000 |
| Peso (g): | 504.5 |
| Zolltarifnummer: | 76169910990 |
