Plate Connector I ZN 40 (Set)

Información sobre el producto "Plate Connector I ZN 40 (Set)"

Color:
Color aluminio

Países de Entrega:
En todo el mundo

Description:
To tee connect two aluminum profiles

Material:
Plate Connector: Zinc die-cast
Assembly set: Steel

Set 1:
1 self-tapping screw SF7 x 22,
1 double T-slot nut - Nut 8 - M8,
2 shaft screws M8

Set 2:
2 self-tapping screws SF7 x 22,
1 double T-slot nut - Nut 8 - M8,
2 shaft screws M8

Set 3:
2 self-tapping screws SF7 x 22,
2 double T-slot nut - Nut 8 - M8,
4 shaft screws M8

Surface:
Plate Connector: Plain / powder coated
Assembly set: Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 conjuntos
Model: Zinc die-cast, slot 8
Peso (g): 242.0

Variantes

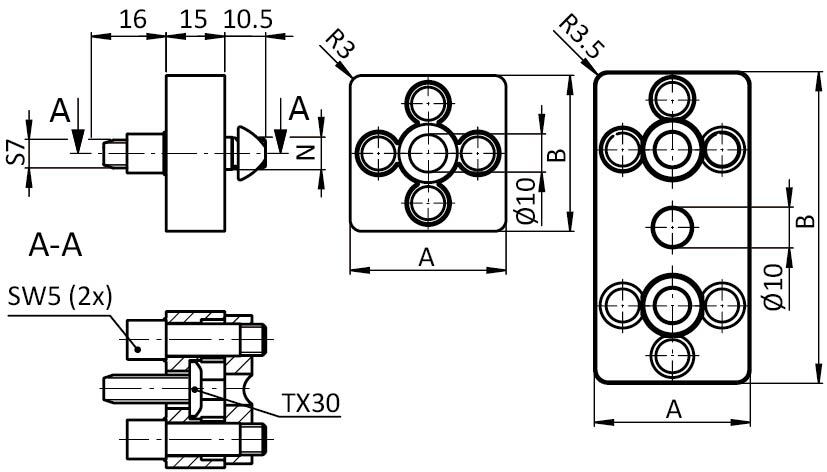

ID de producto Profile Ranura N (mm) A x B (mm) Color Superficie
099E40400808AS01 I 8 40 x 40 Color aluminio Polvo cubierto
099E40400808RS01 I 8 40 x 40 Liso

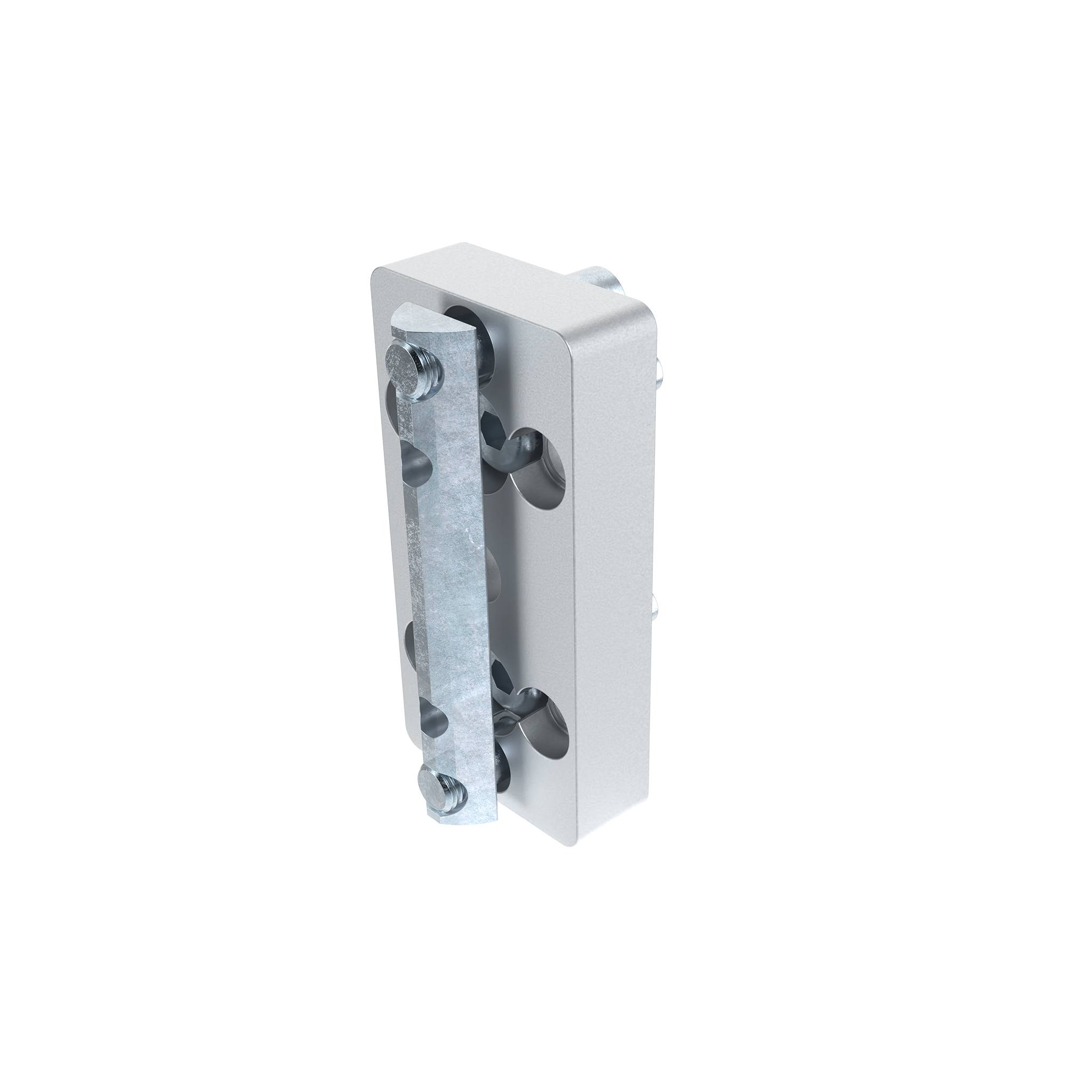

099E40800808RS01 I 8 40 x 80 Liso
099E40800808RS02 I 8 40 x 80 Liso
