Plug-in Profil 5.0 / 6 - 4

Información sobre el producto "Plug-in Profil 5.0 / 6 - 4"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:

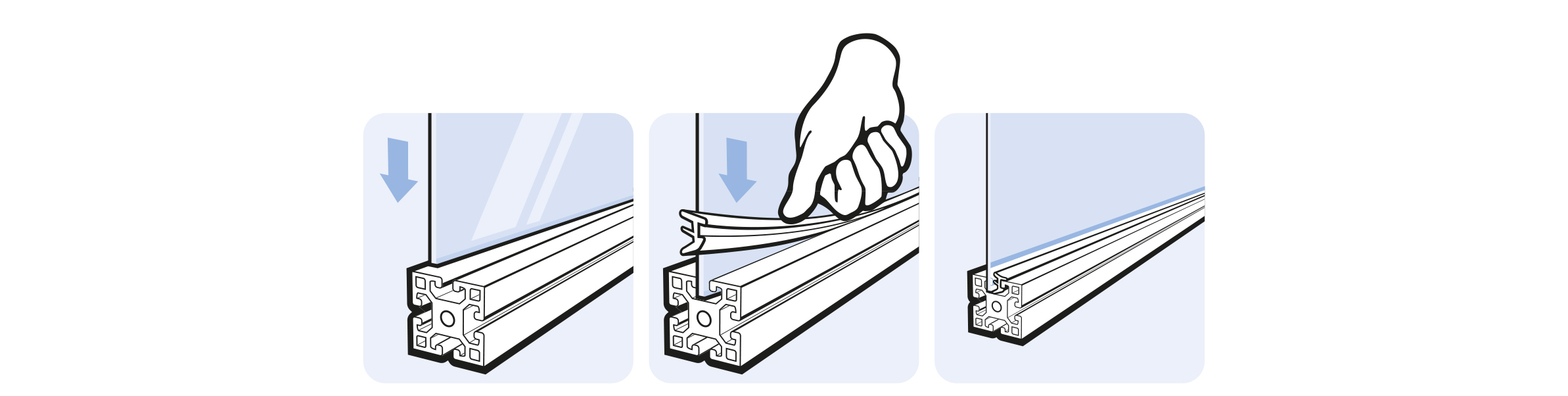

To secure panels in the slot and fill the slot; with reduced surface friction to ease the application

Material:
Plastic EPDM coated with sliding polymer

Consejo:
Observación: ¡Está realizando el pedido en metros!

Zolltarifnummer:
40082900900
(ECLASS 6.0): 23071690
(ECLASS 7.0): 23071690
(ECLASS 8.0): 23071690
(ECLASS 9.0): 23071690
(ECLASS 10.0): 23071690
(ECLASS 11.0): 23071690
(ECLASS 12.0): 23071690
(ECLASS 13.0): 23071690
Cantidad por Paquete: 100 metros (rollo)
Model: Plastic EPDM, slot 8+10
Weight (g/m): 40.0

Variantes

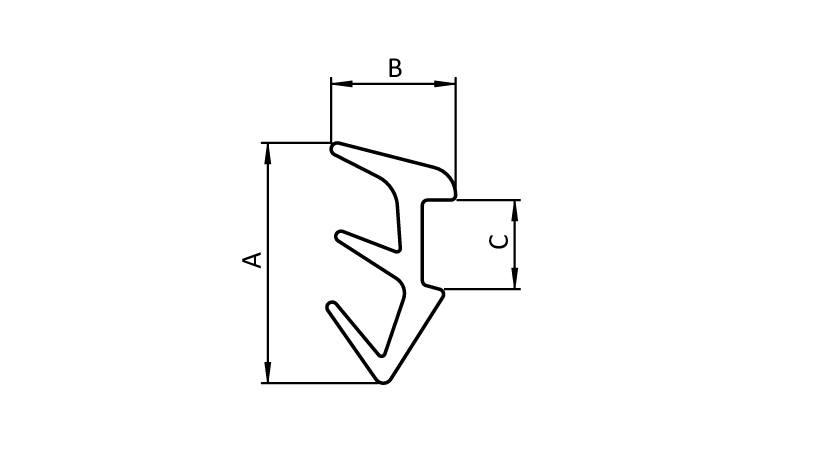

ID de producto C (mm) Ranura N (mm) Profile B (mm) A (mm) Para Panel
092254 5.0 8 / 10 I 7.0 13.5 4 – 6 mm / 6 - 7 mm
092255 5.0 8 / 10 I 8.6 14.7 2 – 4 mm / 4 - 6 mm
