Patas giratorias, rótula 22

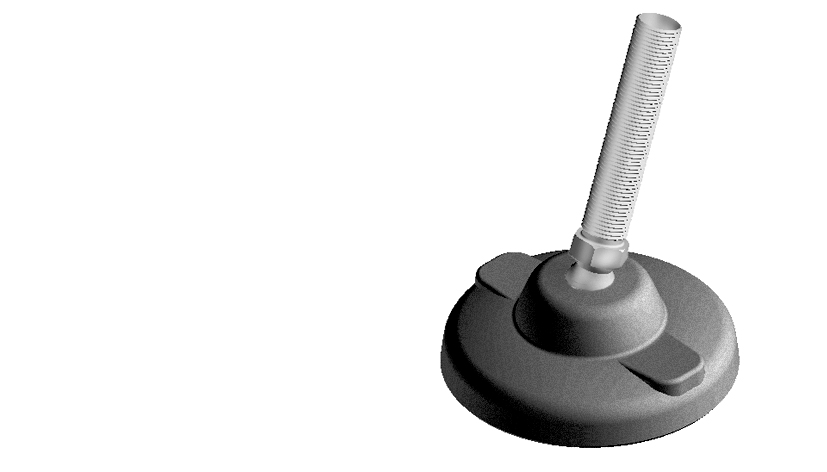

Base PA BDH para patas giratorias de uso rudo, rótula 22

Base: 175 D (mm): 175 F (mm): 63.5 Fmax (N): 24500 H (mm): 46 LK (mm): 135 Version: with anti-slip plate d (mm): 17.0 h (mm): 22

Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for a strong positioning Of heavy machinery on uneven floorsMaterial:Plástico PA, bola de vidrio reforzadoSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098CM16066M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG125B

0,00 €

Base PA BDH para patas giratorias, rótula 22

Base: *100 D (mm): 99 F (mm): 38.5 Fmax (N): 8820 LK (mm): 74 Version: with anti-slip plate

Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Plástico PA, bola de vidrio reforzadoSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098CM16066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098DG030; *Bolt-down holes closed

0,00 €

Base PA para patas giratorias, rótula 22

Base: 60 D (mm): 59 F (mm): 38.5 Fmax (N): 8820 Version: with anti-slip plate

Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Plástico PA, bola de vidrio reforzadoSpecials:ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request; as factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098CM16066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate 098DG030

0,00 €

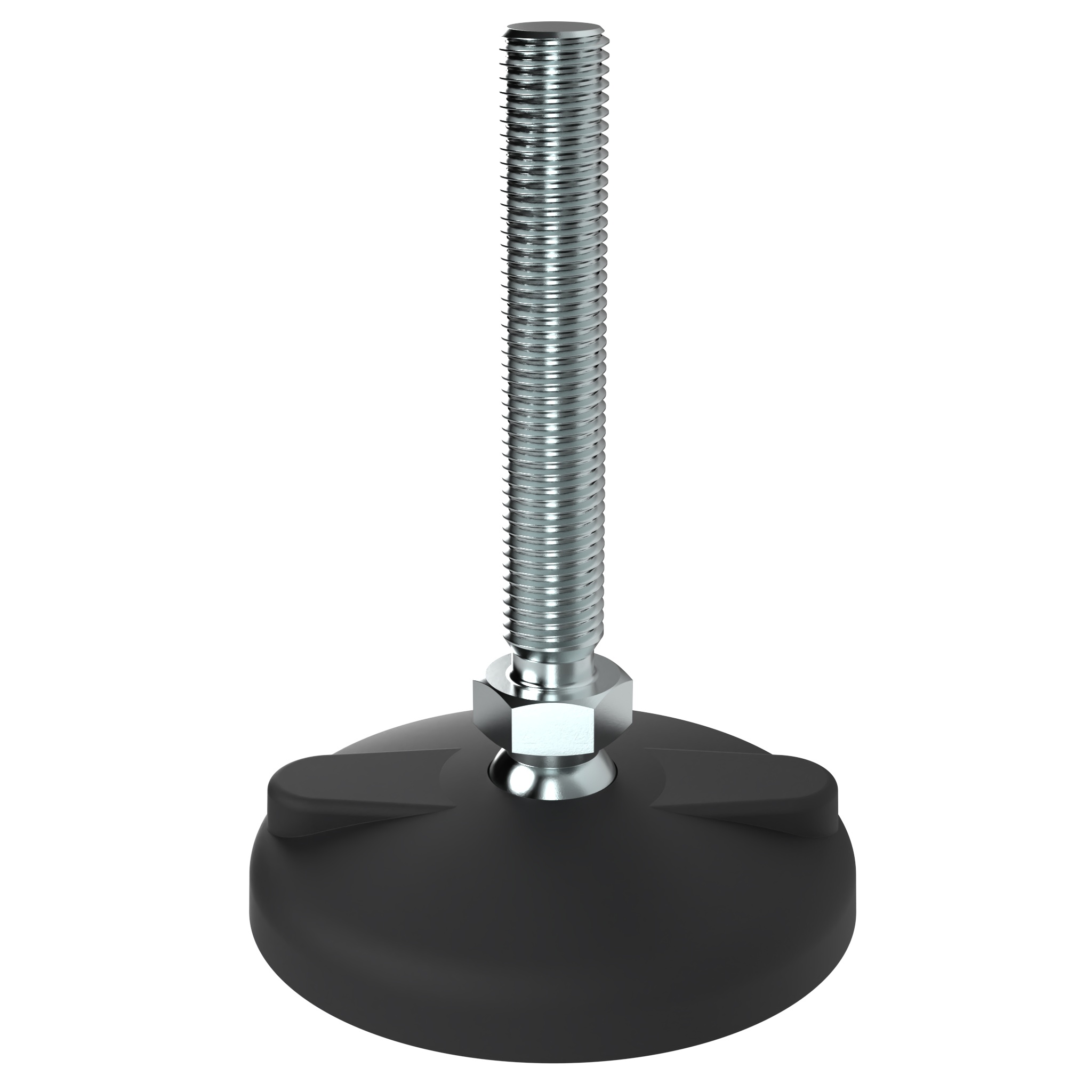

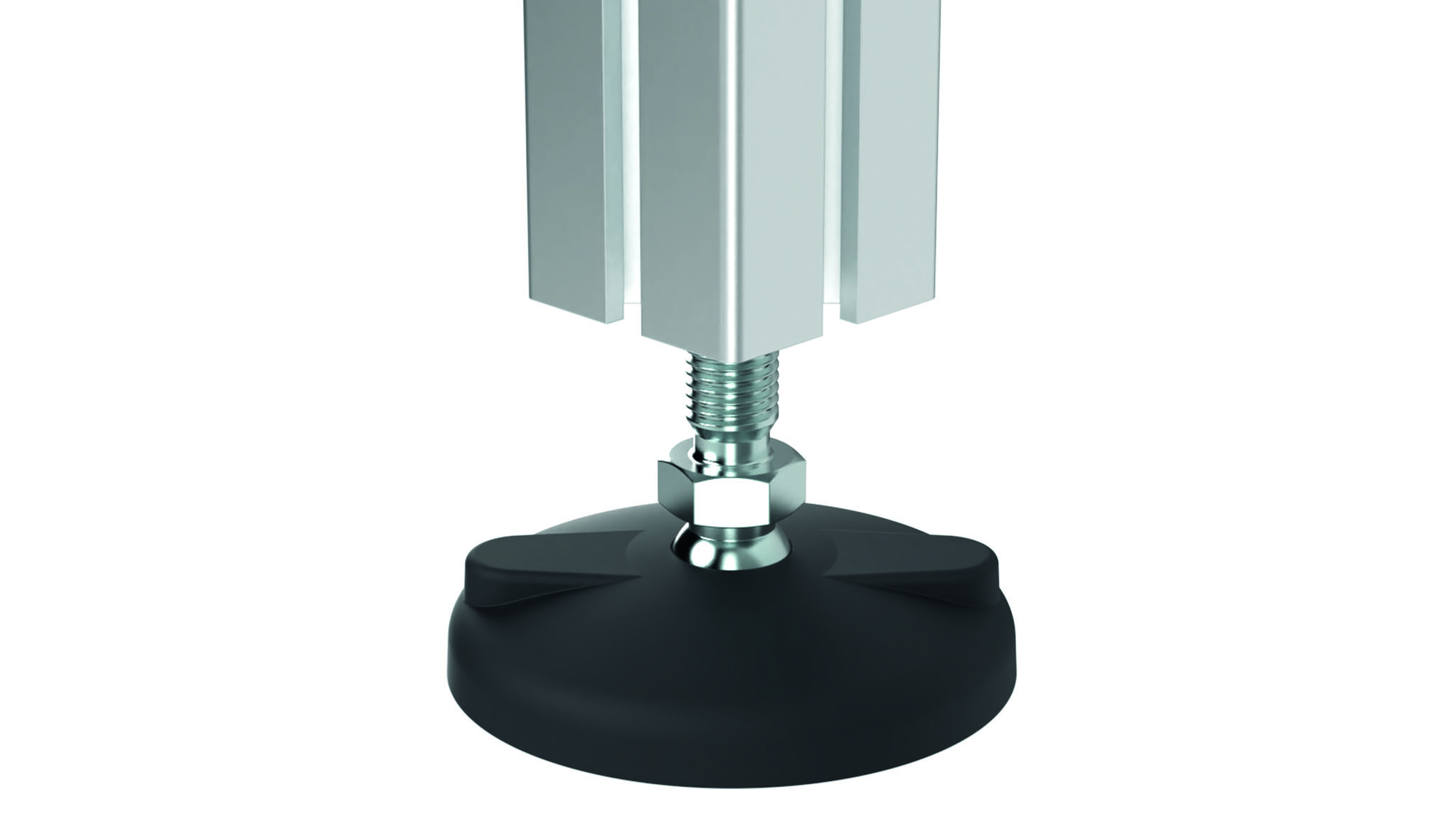

Pata giratoria PA / acier - BDH - rótula 22

Base: *100 D (mm): 99 F (mm): 38.5 Fmax (N): 8800 LK (mm): 74 M x L (mm): M16 x 150 SW (mm): 22 Version: without anti-slip plate

Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.Tip 2:*Bolt-down holes closed

0,00 €

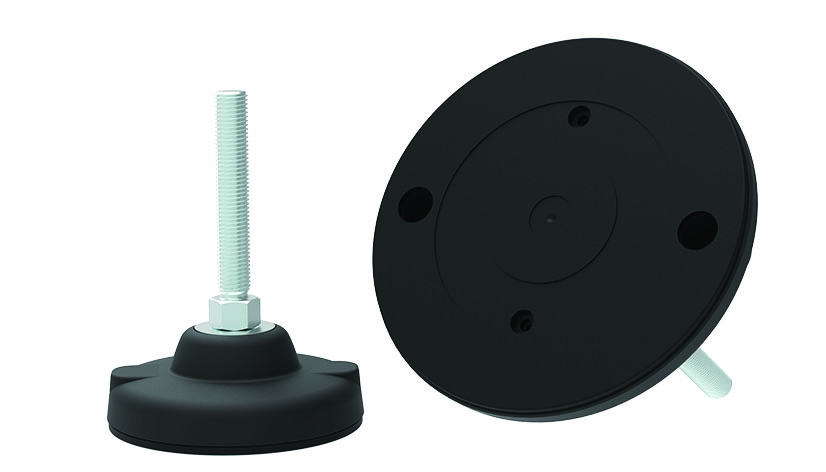

Placa antideslizante para patas giratorias, rótula 22

D (mm): 50 Para Base: 60

Color:NegroPaíses de Entrega:En todo el mundoDescription:Prevents movement of leveling feet on slippery surfaces and absorbs some vibrationMaterial:Thermoplastic elastomer, ≈ 70 Shore AEspeciales:Descarga electrostática ESD bajo pedidoTip:*Also for bases with bolt down holes

0,00 €

Placa antideslizante para patas pivotantes de uso rudo

D (mm): 174 Para Base: 175 d (mm): 17.0

0,00 €

Varilla roscada acier inox para patas giratorias, rótula 22

Fmax (N): 56600 M x L (mm): M30 x 150 Material: Acero inoxidable SW (mm): 24

Países de Entrega:En todo el mundoDescription:Threaded rod for swiveling leveling feet, ball joint 22Material:Acero inoxidable SS304Especiales:Otras longitudes y tamaños bajo pedidoSuperficie:Liso

0,00 €

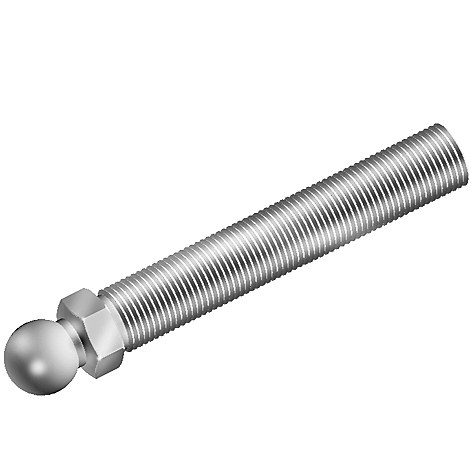

Varilla roscada acier para patas giratorias, rótula 22

Fmax (N): 35400 M x L (mm): M24 x 150 Material: Acero SW (mm): 24

Países de Entrega:En todo el mundoDescription:Threaded rod for swiveling leveling feet, ball joint 22Material:AceroEspeciales:Otras longitudes y tamaños bajo pedidoSuperficie:Galvanizado

0,00 €

Patas giratorias, rótula 22
