Ruedas elevadoras

Lift Casters

Flexibility is one of the important features of modern manufacturing facilities. Setting up and leveling a machine or installation into a relatively permanent position for years to come is not necessarily common practice any longer. It is with this scenario in mind that FATH Components has developed its Lift Caster unit as a “Plug-and-Work” solution which has been conceptualized as a mounting for machinery and facilities with a maximum lifting load of 500 kg per unit.

To Product Portrait

Filtro

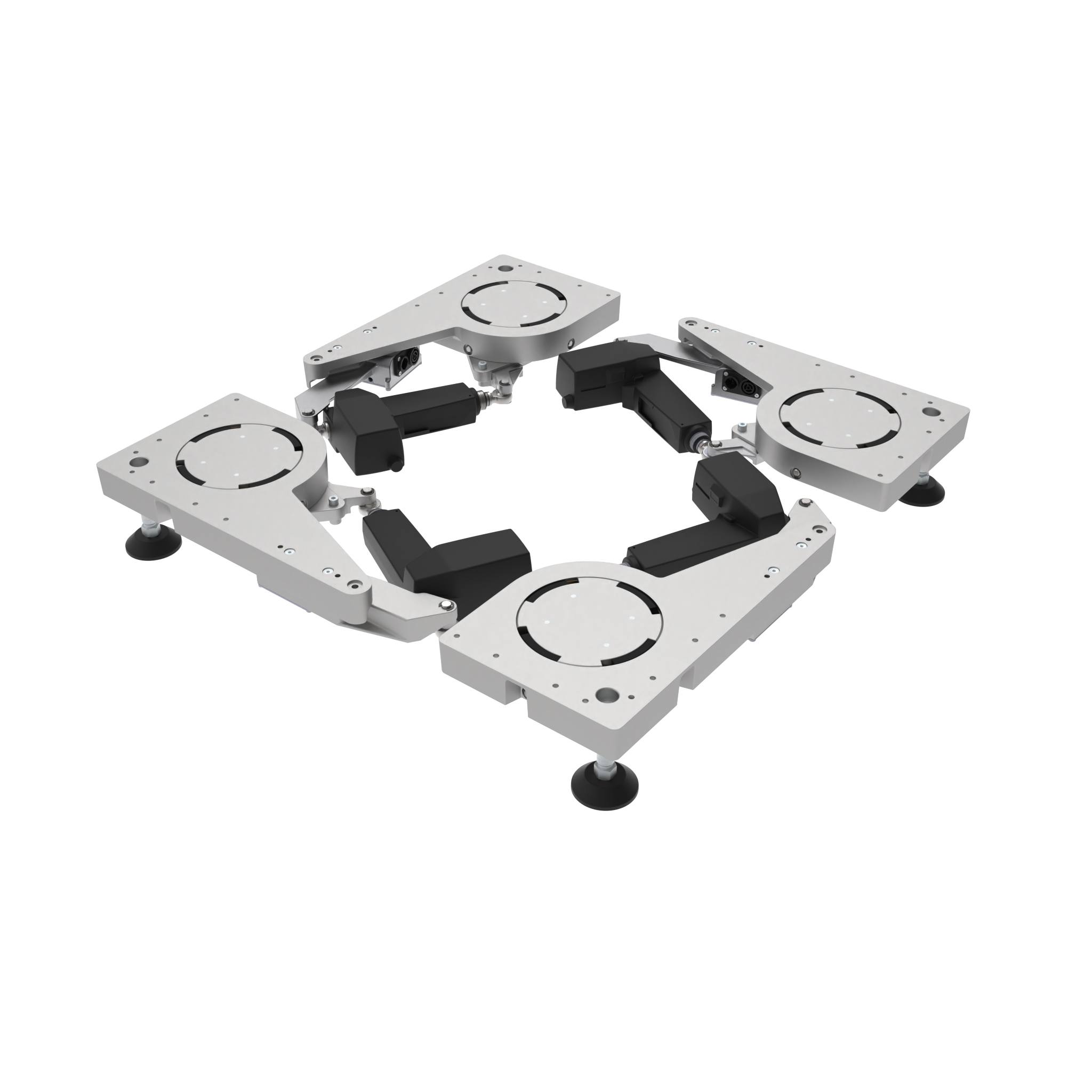

Rueda elevadora eléctrica

Rueda elevadora eléctrica

Carga Máxima por unidad de elevación (kg): - Fmax (N): *4900 Profile: I / B Version: -

Países de Entrega:En todo el mundoDescription:Lift castor system for a fast and flexible placing of plants or assembls tables; with electrical drive - 24 V, electrical connection plug Neutrik NAC3FX W TOP + NAC3MX W TOPMaterial:Housing: Aluminum die-cast with PTFE bearing Roller: Plastic PA with ball bearing Roller housing: Zinc plated steelSet:4 lifting units with electrical drivesConsejo:*Posicionado centrado

0,00 €
Rueda elevadora hidráulica (Juego)

Rueda elevadora hidráulica (Juego)

Carga Máxima por unidad de elevación (kg): 500 Fmax (N): *19600 Profile: I / B

Países de Entrega:En todo el mundoDescription:Lift castor system for a fast and flexible placing of plants or assembling tables; gear transmission ratio: 10:1Material:Housing: Aluminum die-cast with PTFE bearing Roller: Plastic PA with ball bearing Roller housing: Zinc plated steelSet:4 lifting units 1 hydraulic drive unit 4 hydraulic pipes at each 5 m, pre-filledEspeciales:Otros conjuntos bajo pedidoConsejo:*Posicionado centrado

0,00 €
