Cerraduras

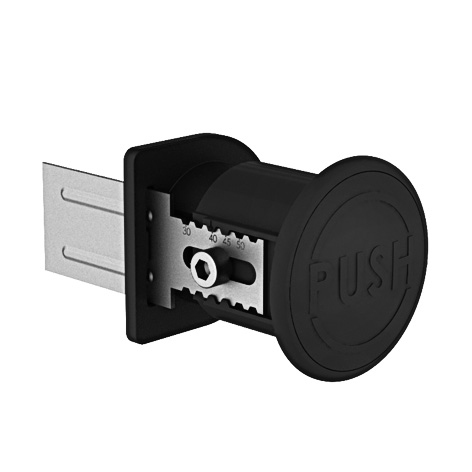

Apertura de emergencia for cerradura de golpe
Color:Base part: Black Push button: Red ≈ RAL 3020Países de Entrega:En todo el mundoDescription:Inside emergency release for slam latches PRO and Compact; with or without safety catchPFA_Fastening:Por delante, con dos tornillos de cabeza cilíndrica DIN EN ISO 4762 (DIN 912) M6 x 20Material:Base part: Plastic PA, glass fiber reinforced Push button: Plastic PA, glass fiber reinforced Unlocking plate: SteelSurface:Unlocking plate: Zinc platedTip:Recommendation for slide door latch Compact 0957415 et sq.: Emergency opener for slam latch with safety catch and an inside mounted handle; Not compatible with slam latch 0957101 et sq.

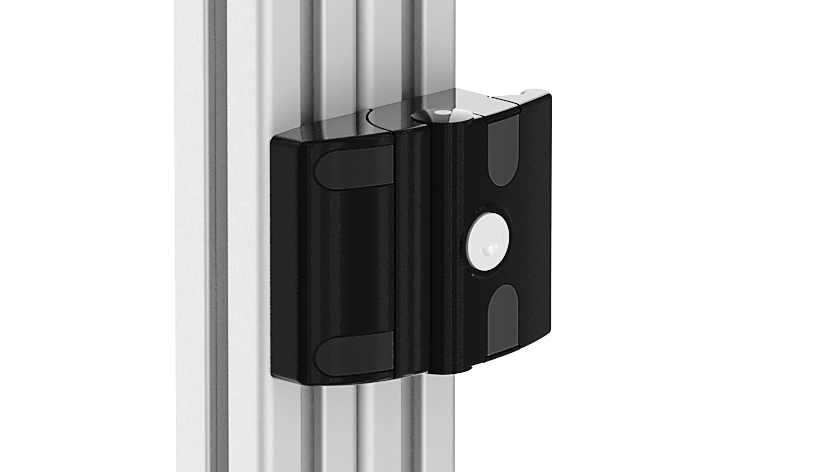

Cerradura de golpe COMPACT
Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; safe against disassembling in the locked positionFastening:From the front, using M6 socket head or pan head screwsMaterial:Aluminio fundido a presiónSuperficie:Polvo cubiertoTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key; **With double-bitted key Compatible Emergency Opener for Slam Latch see 0957409 et sq.Tip 2:Compatible Replacement Cover Cap (Set) see 0957408RS01
Cerradura de golpe doble COMPACT
Color:NegroPaíses de Entrega:En todo el mundoDescription:For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; Safe against disassembling in the locked position; Provides selective access by use of a single post; With separate locating pins for slot 8 and slot 10Fastening:From the front, using M6 socket head or pan head screwsMaterial:Aluminio fundido a presiónSpecials:Other combinations of slam latches on requestSuperficie:Polvo cubiertoTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key Compatible Emergency Opener for Slam Latch see 0957409 et sq.; Compatible Replacement Cover Cap (Set) see 0957420RS01.
Cerradura de golpe PRO
Color:NegroPaíses de Entrega:En todo el mundoDescription:For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; Safe against disassembling in the locked positionFastening:From the front, using M6 socket head or pan head screwsMaterial:Aluminio fundido a presiónSuperficie:Polvo cubiertoTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key Compatible Emergency Opener for Slam Latch see 0957409 et sq.; Compatible Replacement Cover Cap (Set) see 0957404RS01
Cerradura de golpe ZN
Color:NegroPaíses de Entrega:En todo el mundoDescription:For an easy and secure latching and locking of doors and flapsFastening: From the back, using M6 screws Material:Zinc fundido a presiónSuperficie:Polvo cubiertoTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key

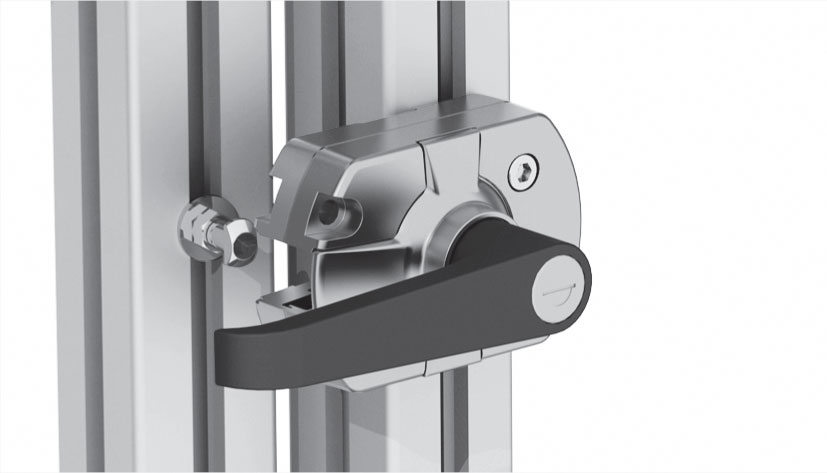

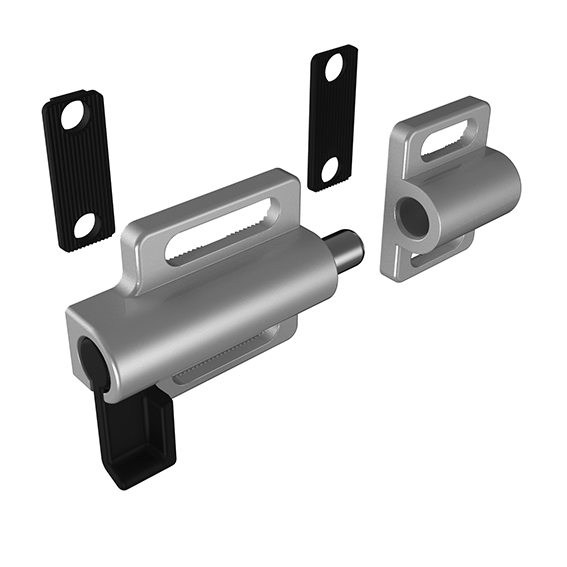

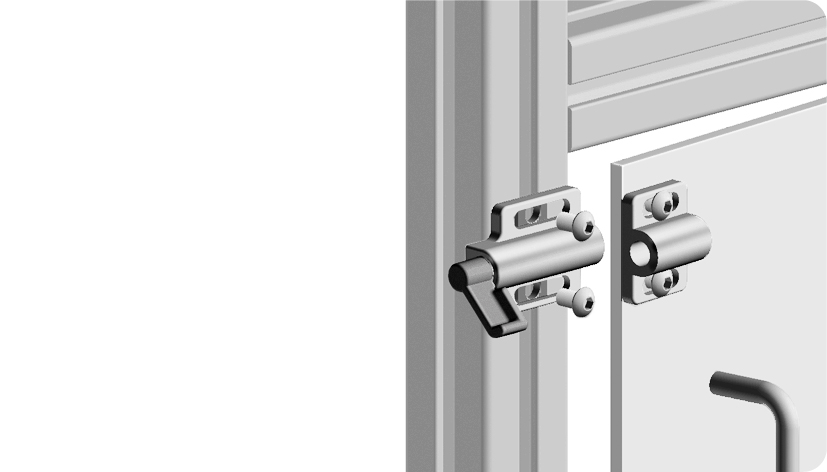

Cerradura de puerta
Color:Housing: Alu color Handle: BlackPaíses de Entrega:En todo el mundoDescription:For easy closing of doors and flaps, with spring-loaded clamp; including separate slot fixation stripsMaterial:Housing: Zinc die-cast Pull handle: Plastic PA, Bolt: Stainless steelSuperficie:Polvo cubierto
Cerradura de puerta (Juego)
Color:Housing: Alu color Cross: Lack Handle: BlackPaíses de Entrega:En todo el mundoDescription:For an easy and secure latching and locking of swing and sliding doors, no mechanical preparation needed for the assemblyMaterial:Housing: Aluminum die-cast Cross: Aluminum die-cast Handle: Zinc die-cast Fastening material: SteelSet:1 door lock, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 washer 6-FSt, 1 anchor - M6, 1 nut DIN EN ISO 4032 (DIN 934) - M6, 1 washer DIN EN ISO 7093 (DIN 9021) - 6.4, 3 hammer nut - slot 8 - M6, 3 hammer nut - slot 10 - M6Surface:Housing: Lacquered Cross: Powder coated Handle: Plastic coated Fastening material: Zinc platedTip:*Universal: One key fits all slam latches Unique: Each door lock has a different key **With double-bitted key

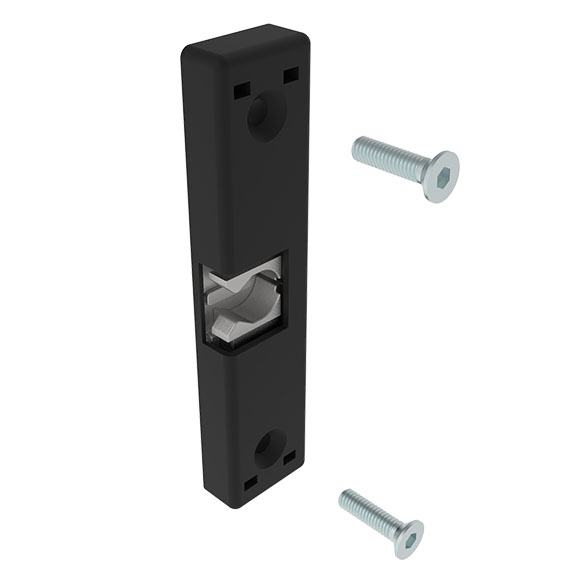

Cerradura de puerta (Juego)
Color:NegroCounter Screw:(not included in delivery) 1 cylinder head screw DIN EN ISO 4762 (DIN 912) - M6 - thread lengh depending on gap distance and slot depth, screw head dives competely into the door latchPaíses de Entrega:En todo el mundoDescription:Quick fastener for swing doors, to be mountend in a min. 12 mm gap between door and postMaterial:Door latch: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced 2 countersunk screws M4: SteelSet:1 door latch, 2 screws DIN EN ISO 10642 (DIN 7991) - M4 x 16Especiales:Otros materiales, otros colores bajo pedidoSurface:Door latch: Plain 2 countersunk screws M4: Zinc plated
Cerradura de puerta corrediza COMPACT
Color:NegroPaíses de Entrega:En todo el mundoDescription:For an easy and secure latching and locking of sliding doors, no mechanical preparation needed for the assembly; safe against disassembling in the locked positionFastening:From the front, using M6 socket head or pan head screwsMaterial:Aluminio fundido a presiónSuperficie:Polvo cubiertoTip:*Universal: One key fits all slam latches Unique: Each slam latch has a different key Compatible Emergency Opener for Slam Latch with Safety Catch see 0957409S02, additional inside mounted handle recommended Compatible Replacement Cover Cap (Set) see 0957408RS01
Cierre de Bola 30
Color:Negro, grisCounter Screw:M8 x 12, zinc plated steel / stainless steel SS 304Países de Entrega:En todo el mundoDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsPFA_Fastening:Usando tornillosMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido

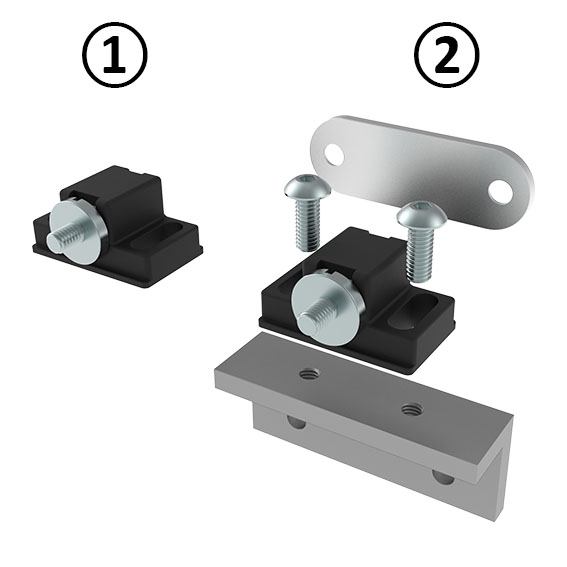

Cierre magnetico 20 (Juego)
Color:Magnetic catch: BlackPaíses de Entrega:En todo el mundoDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsPFA_Fastening:Usando tornillos M4Material:Magnetic catch: Plastic PA, glass fiber reinforced Assembly set: Steel Angle bracket: AluminumSet 1:1 magentic catch 20, 1 pan head screw DIN 921 - M4 x 5Set 2:1 magentic catch 20, 1 counter plate 14 x 41 x 2 mm, 2 screws DIN EN ISO 7380 (DIN 34805) - M4 x 10, 1 angle bracketEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido

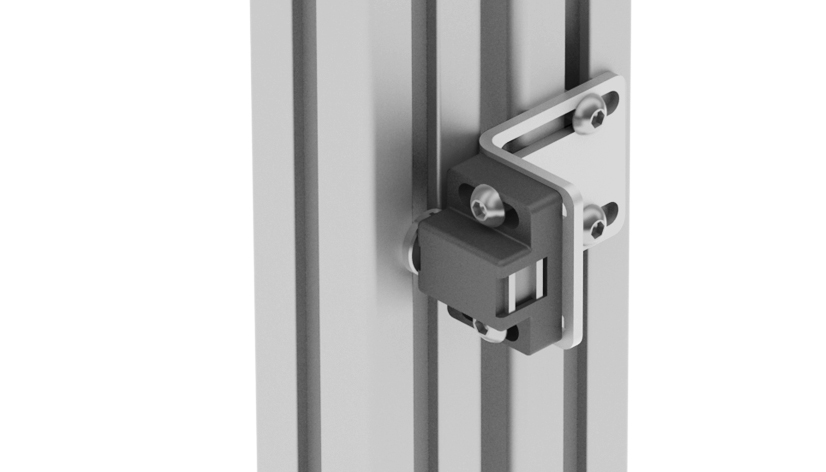

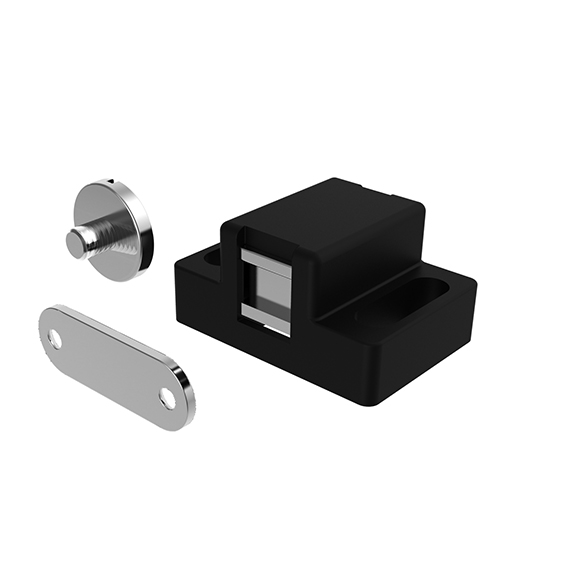

Cierre magnetico 30 (Juego)
Color:Magnetic catch: Black, grayPaíses de Entrega:En todo el mundoDescription:A quick locking device for doors, adaptable to the thickness of the panel unitsFastening:Magnetic catch: using M6 screws Counter plate: using M4 countersunk screwsMaterial:Magnetic catch: Plastic PA, glass fiber reinforced Assembly set: SteelSet 1:1 magnetic catch 30, 1 flat head screw DIN 921 - M5 x 6Set 2:1 magnetic catch 30, 1 flat head screw DIN 921 - M5 x 6, 1 counter plate 14 x 41 x 2 mmEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedidoSuperficie:Conjunto de montaje: Galvanizado

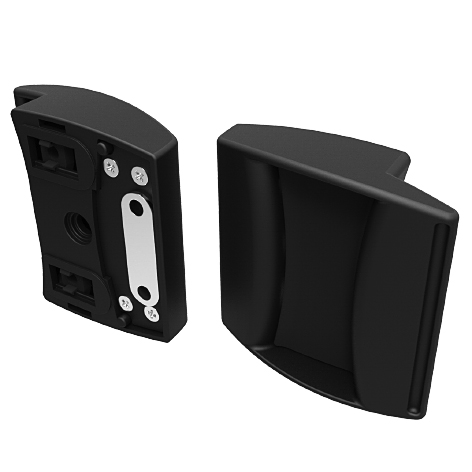

Cierre magnetico manija COMPACT
Color:Catch handle: Black Buffer: BlackPaíses de Entrega:En todo el mundoDescription:Quick fastener for doors; adjustableFastening:Catch handle: From the front with using cylinder or button head screws M6 Counter plate: From the front with countersunk screws M5Material:Catch handle: Plastic PA, glass fiber reinforced Buffer: TPE, ≈ 90 Shore A Magnet: Neodymium Spring: Stainless steel Counter plate: SteelEspeciales:Otros colores bajo pedidoSurface:Spring: Plain Counter plate: Zinc plated

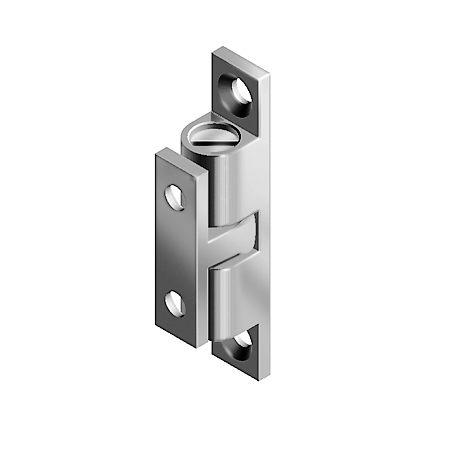

Double Ball Catch MS
Color:CromoPaíses de Entrega:En todo el mundoDescription:Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)PFA_Fastening:Por delante, con tornillos avellanadosMaterial:Body: Brass Threaded pin: Steel Spring: Stainless steel Ball: Stainless steelSuperficie:Cromado chapado

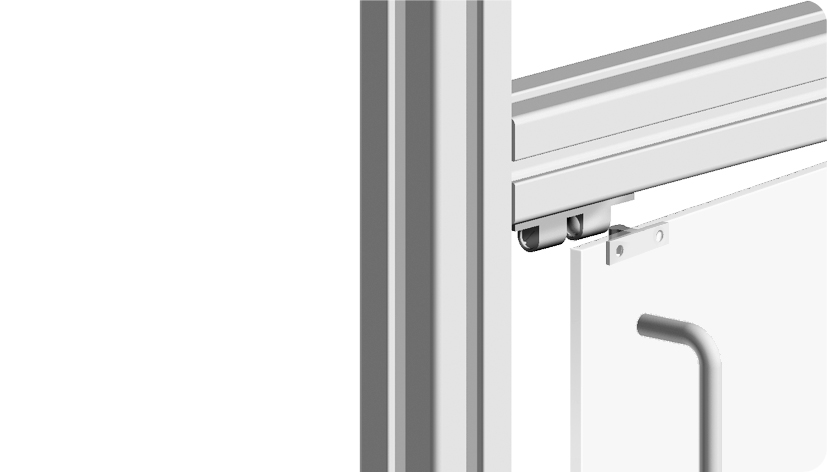

Double cierre de bola PA
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:A quick locking device for doors and flaps with and without framePFA_Fastening:Usando tornillos M5Material:Housing standard version: Plastic PA, glass fiber reinforced Housing ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Ball: Stainless steel Bushing: Steel, zinc platedEspeciales:Otros colores bajo pedido

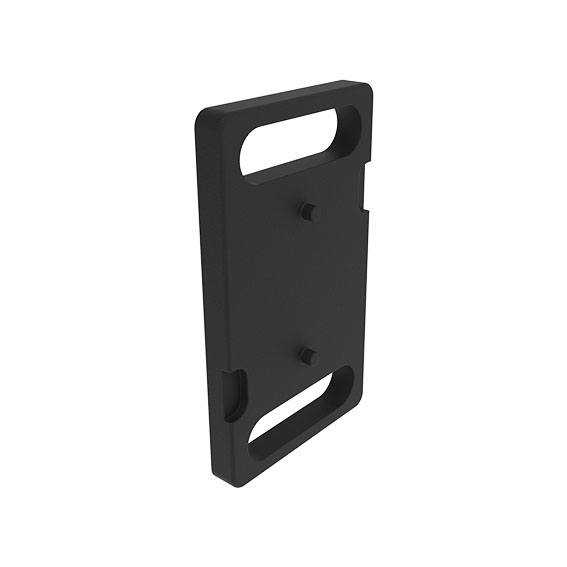

Espaciador para cierre de bola 30
Color:NegroPaíses de Entrega:En todo el mundoDescription:To increase the distance to the aluminum profileMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido

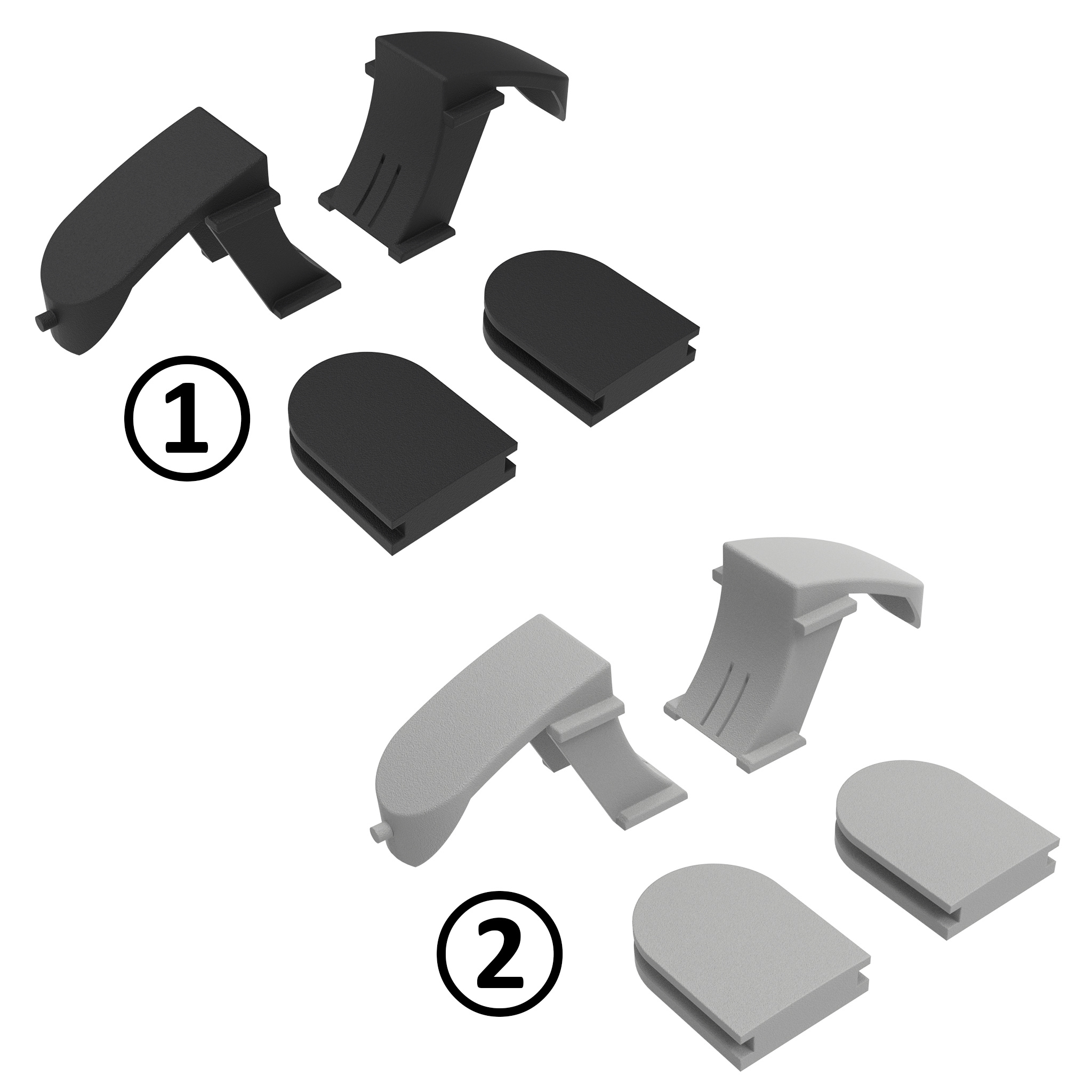

Repuesto de tapa protectora para cerradura de golpe COMPACT y cerradura de puerta corrediza COMPACT
Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:To cover and protect the Slam Latch attachmentMaterial:Plástico PASuperficie:Polvo cubiertoTip:Compatible Slam Latch Compact see 0957408 Compatible Slide Door Latch Compact see 0957415

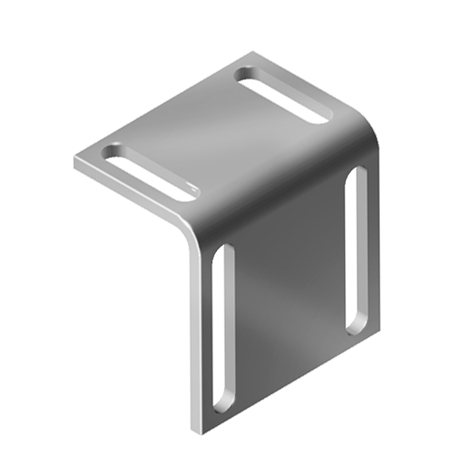

Sporte angular para cierre de bola 30
Países de Entrega:En todo el mundoDescription:To position the ball catchMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

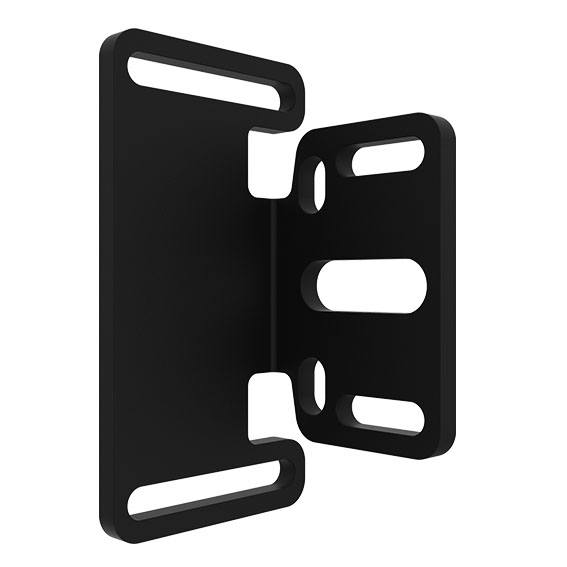

Sporte angular para cierre de bola 30 / Interruptor de seguridad AZ 16
Color:NegroPaíses de Entrega:En todo el mundoDescription:To flexibly position the housing or ball pin of the ball catch 30 or a safety switch Schmersal AZ 16Material:AceroEspeciales:Otros tamaños, otras superficies bajo pedidoSuperficie:Polvo cubiertoTip:Compatible Ball Catch 093043, 093043S02, 093045, 093045S03

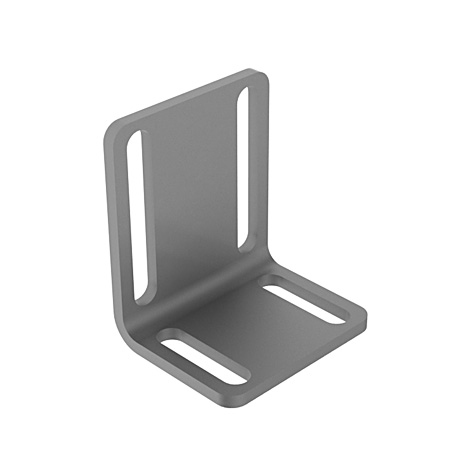

Sporte angular para cierre magnetico 30
Países de Entrega:En todo el mundoDescription:To versatile position the magnetic catch 30 Material:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

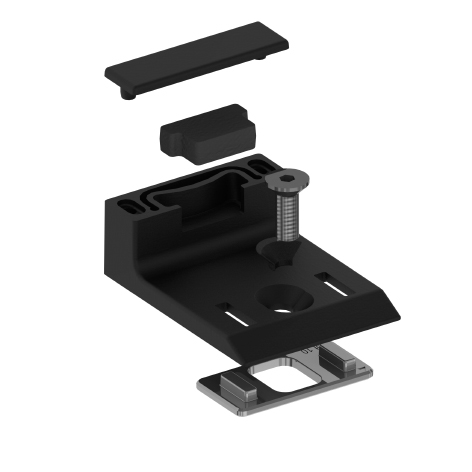

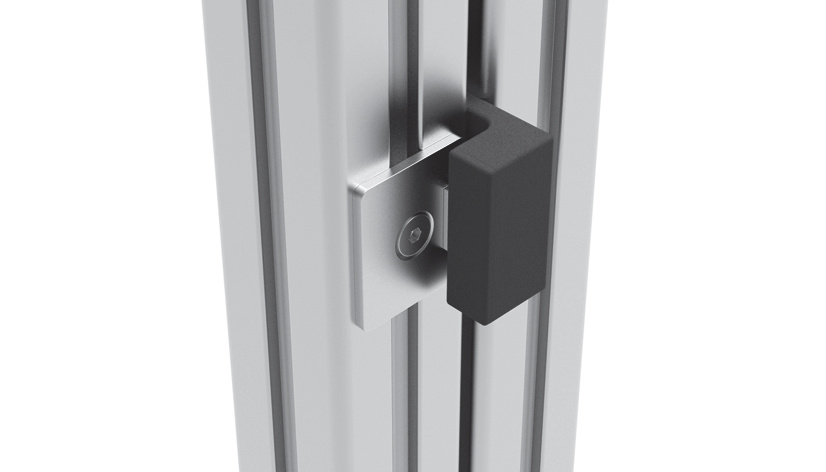

Tope de puerta con amortiguador EPDM (Juego)
Color:Door stop: Black Damper: Black Fixation element: BlackPaíses de Entrega:En todo el mundoDescription:Easy to mount stop for doors and flapsMaterial:Door stop: Plastic PA, glass fiber reinforced Damper: EPDM, ≈ 70 Shore A Locating pin: Zinc die-cast Screw: Steel Fixation element: Plastic PA, glass fiber reinforcedSet:1 Door stop with EPDM Damper 1 Locating pin 1 Screw DIN EN ISO 10642 (DIN 7991) - M5 x 14, 1 Fixation elementEspeciales:Otros colores bajo pedidoSurface:Locating pins: Plain Screw: Zinc plated

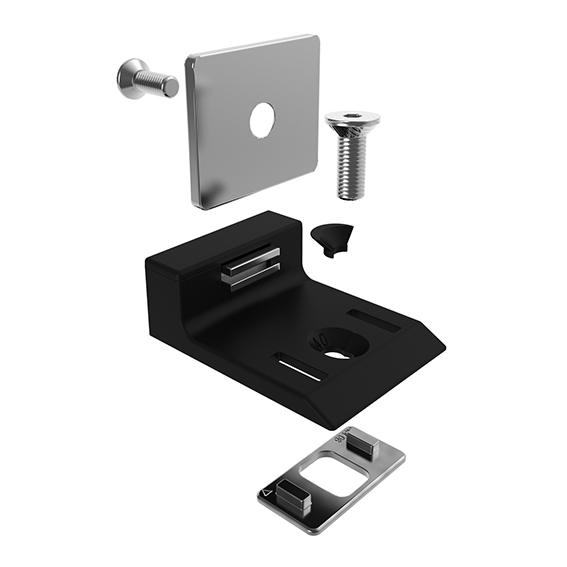

Tope de puerta with cierre magnetico (Juego)
Color:Door stop: Black Fixation element: BlackPaíses de Entrega:En todo el mundoDescription:Easy to mount stop for doors and flapsMaterial:Door stop: Plastic PA, glass fiber reinforced Magnet: Neodym Counter Plate: Steel Locating pin: Zinc die-cast Screws: Steel Fixation element: Plastic PA, glass fiber reinforcedSet:1 Door stop 1 Counter Plate 1 Locating pin 2 Screws DIN EN ISO 10642 (DIN 7991) - M5 x 14, 1 Fixation elementEspeciales:Otros colores bajo pedidoSurface:Magnet: Plain Counter Plate: Zinc plated Locating pins: Plain Screws: Zinc plated
