Connecting Strips

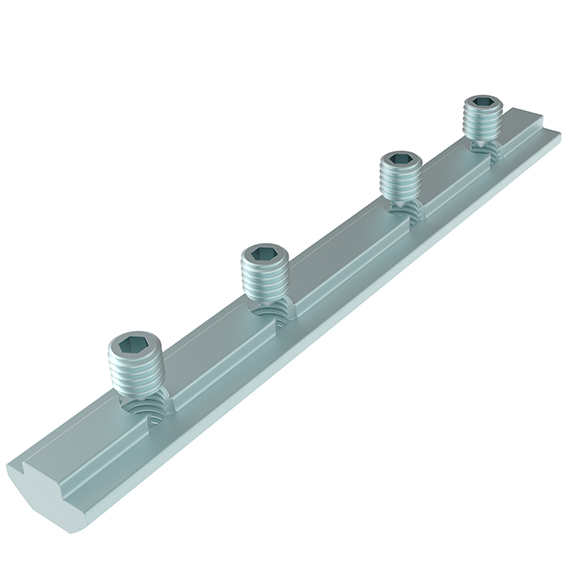

Connecting Strip 140 I, Slot 8 (Set)

L (mm): 140.0 M: M8 Profile: I Ranura N (mm): 8

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet:1 connecting strip 140 - slot 8 4 screws DIN EN ISO 4027 (DIN 914) - M8 x 10Superficie:Galvanizado

0,00 €

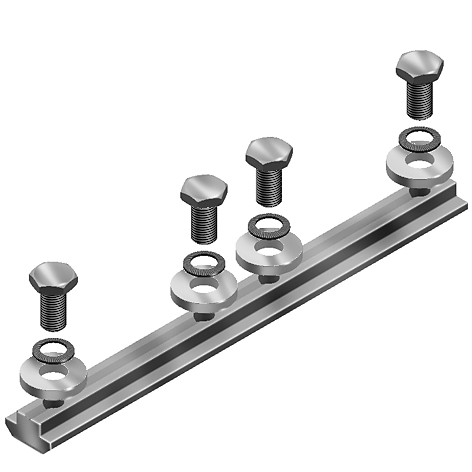

Connecting Strip 180 B, Slot 10 (Set)

A1 (mm): 28.0 A2 (mm): 158.0 L (mm): 180.0 M: M8 Profile: B Ranura N (mm): 10

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet:1 connecting strip 180, slot 10, 4 screws DIN EN ISO 4017 (DIN 933) - M8 x 16, 4 washers 8-FSt, 4 washers DIN 7349 - 8.4Superficie:Galvanizado

0,00 €

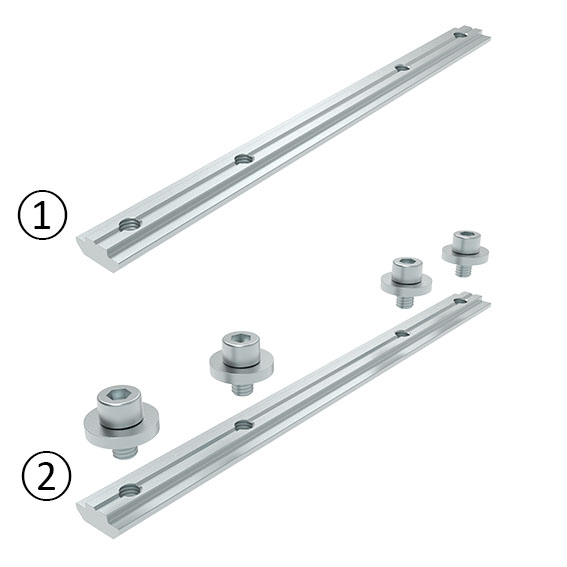

Connecting Strip 180 B, Slot 8

A1 (mm): 80.0 A2 (mm): 160.0 Fig.: ① L (mm): 180.0 M: M6 Profile: B Ranura N (mm): 8 Version: -

Assembly Set:4 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 4 washers DIN 7349 - 6.4Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSuperficie:Galvanizado

0,00 €

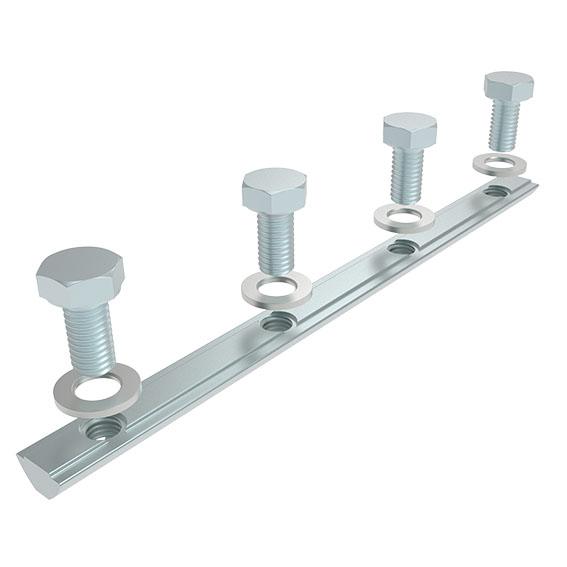

Connecting Strip 180 I, Slot 8

A1 (mm): 50.0 A2 (mm): 150.0 L (mm): 180.0 M: M8 Profile: I Ranura N (mm): 8 Version: -

Assembly Set:4 screws DIN EN ISO 4017 (DIN 933) - M8 x 16 4 washers DIN EN ISO 7089 (DIN 125)Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSuperficie:Galvanizado

0,00 €

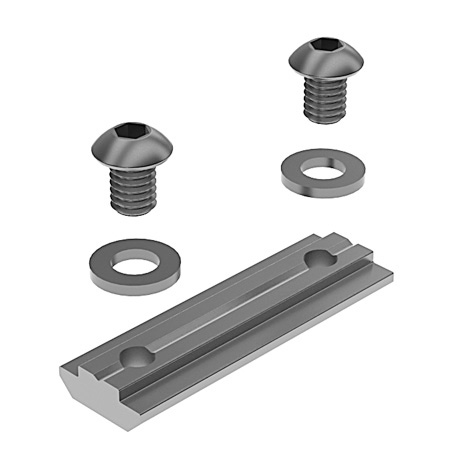

Connecting Strip 50 B, Slot 8

A (mm): 36.0 Juego: Conjunto 2 L (mm): 50.0 M: M6 Profile: B Ranura N (mm): 8

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet 1:1 connecting strip 50, slot 8, 2 screws DIN EN ISO 7380 (34805) - M6 x 8, 2 washers DIN EN ISO 7089 (DIN 125)Set 2:2 connecting strip 50, slot 8, 2 hexagon socket set screws DIN EN ISO 4026 (DIN 913) - M6 x 10Superficie:Galvanizado

0,00 €
