Aluminum Die-cast, Connection Plates
Filtro
–

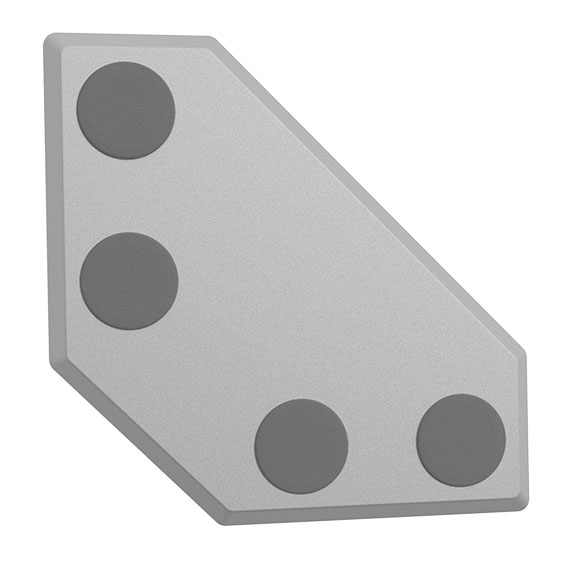

Connection Plate I120 M (Set)
0,00 €*
Profile:
I
|
Ranura N (mm):
8
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angle, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and counter sunk nuts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts 4 cover capsEspeciales:Otras superficies, otros colores bajo pedidoSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169990990

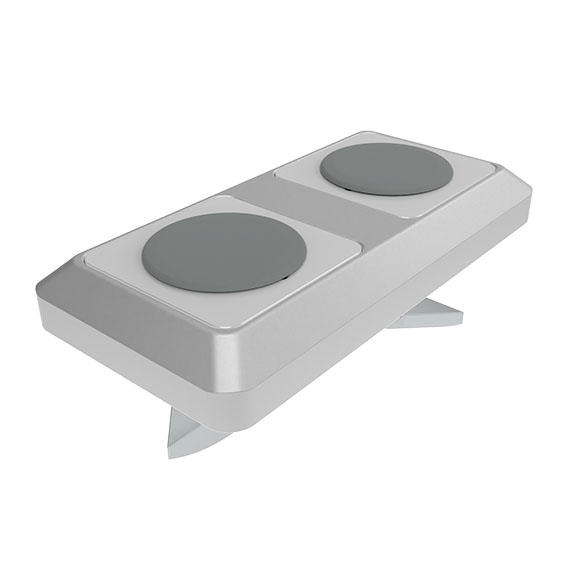

Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)
0,00 €*
Profile:
I
|
Ranura N (mm):
8
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts 2 cover capsEspeciales:Otras superficies, otros colores bajo pedidoSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedZolltarifnummer:76169990990
