Plate Connectors

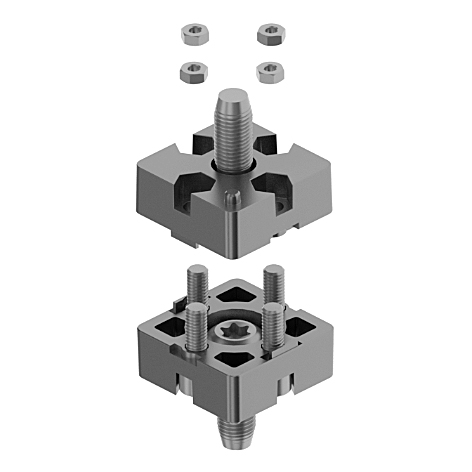

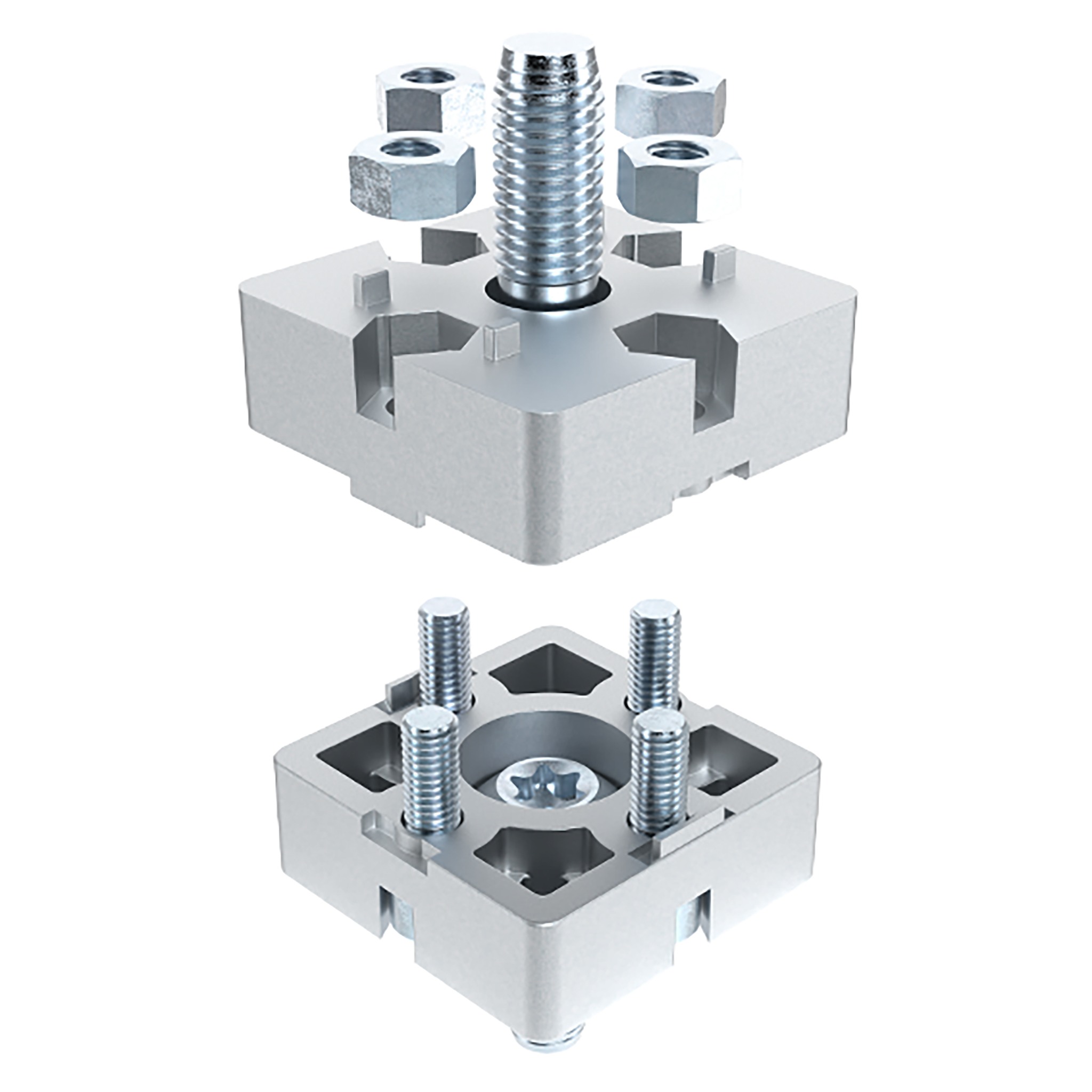

Plate Butt Connector B AL (Set)
Color:Color aluPaíses de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles of the same typeMaterial:Plate connector: Aluminum die-cast Screws / hammer nuts: SteelSet 1:2 plate connectors, 2 screws DIN 7984 - M8 x30, 4 screws DIN 7984 - M5 x 20, 4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M5Set 2:2 plate connectors, 2 self forming screws S12 x 30 - hexalobular socket T50, 4 screws DIN 7984 - M6 x 20, 4 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6Set 3:2 plate connectors, 2 self forming screws S12 x 30 - hexalobular socket T50, 4 screws DIN 7984 - M6 x 20, 4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Plate connector: Plain / powder coated Screws / hammer nuts: Zinc platedTip:Individual Plate Connector, not as part of a set, see 099EA30300808R

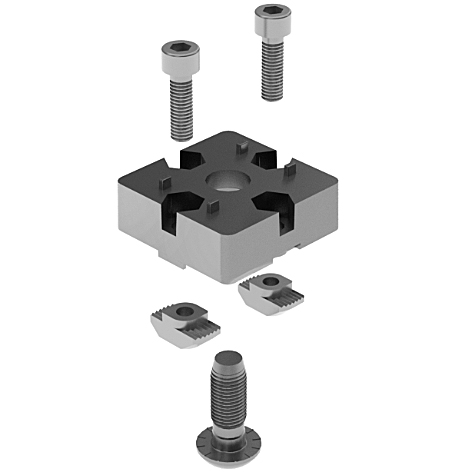

Plate Connector B AL
Assembly Set 1:1 screw DIN 7984 - M8 x 30, 2 screws DIN 7984 - M5 x 16, 2 hammer nuts - slot 8 - M5Assembly Set 2:1 self forming screw S12 x 30 - hexalobular socket T50, 2 screws DIN 7984 - M6 x 20, 2 hammer nuts - slot 10 - M6Color:Color aluPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:Plate connector: Aluminum die-cast Assembly set: SteelEspeciales:Otras superficies bajo pedidoSurface:Plate connector: Plain / powder coated Assembly set: Zinc plated

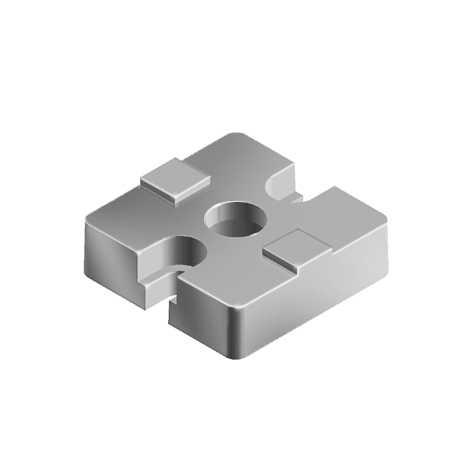

Plate Connector B ZN 45, Slot 10
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesFastening:For screws: 1 x M12 x 30, 2 x M6 x 18 and 2 T-slot nuts or hammer nutsMaterial:Zinc fundido a presiónSuperficie:Liso / Recubierto de polvo

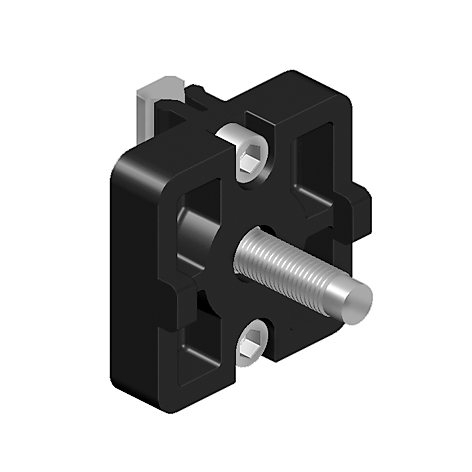

Plate Connector I PA 40, Slot 8 (Set)
Color:NegroPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:Plástico PA, reforzado con fibra de vidrioSet:1 plate connector, 1 wedge, zinc plated steel, 2 cylinder head screws, M4 x 14, zinc plated steel, 1 self tapping screw, SF7 x 22, zinc plated steelEspeciales:Otras superficies, otros colores bajo pedido

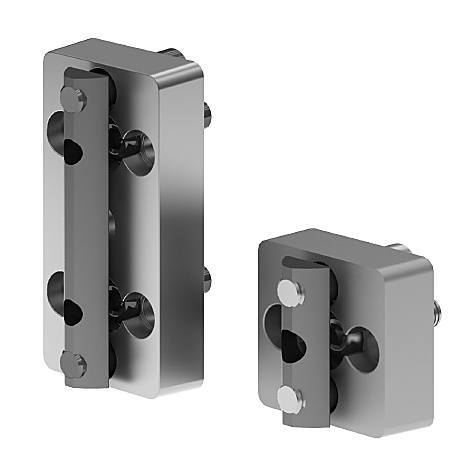

Plate Connector I ZN 40 (Set)
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:Plate Connector: Zinc die-cast Assembly set: SteelSet 1:1 self-tapping screw SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 2:2 self-tapping screws SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 3:2 self-tapping screws SF7 x 22, 2 double T-slot nut - Nut 8 - M8, 4 shaft screws M8Surface:Plate Connector: Plain / powder coated Assembly set: Zinc plated
