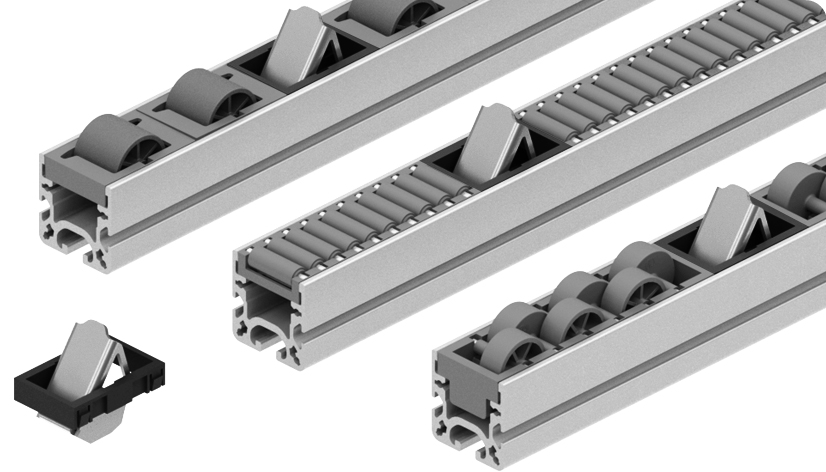

Roller Tracks
Axle for AL Roller Tracks
Países de Entrega:En todo el mundoDescription:To insert roller R28, roller H26, or roller R9 into the suitable cages for roller tracks ALMaterial:AceroEspeciales:Otros materiales, otras superficies bajo pedidoSuperficie:GalvanizadoTip:Compatible Rollers see 062RR2891, 062RH2691, 062RR991; Compatible Cages see 062ACR2891.50, 062ACH2691.50, 062ACR991.50;

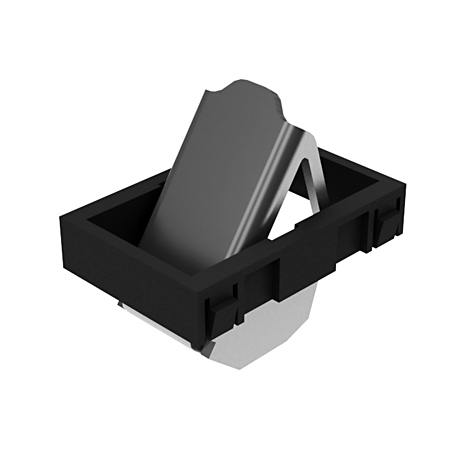

Backstop Unit AL
Color:Jaula: NegroPaíses de Entrega:En todo el mundoDescription:A preassembled backstop unit for roller track profiles AL, prevents goods from moving backwards onthe AL roller track profileMaterial:Backstop: Steel Axle: Steel Cage: Plastic PA, carbon fiber reinforcedEspeciales:Otros materiales, otras superficies, otros colores bajo pedidoSurface:Backstop: Zinc plated Axle: Zinc plated
Ball Insert D24
Países de Entrega:En todo el mundoDescription:Low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locks; for roller tracks AL, can also be used in panels, e.g. on table tops; version with attachement clip prevents rotation of the ball housingMaterial:Ball: Steel, stainless steel Ball housing: Steel Housing Attachment Clip: SteelEspeciales:Otros materiales, otras superficies bajo pedidoSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;
Ball Unit
Color:Jaula: NegroPaíses de Entrega:En todo el mundoDescription:A preassembled ball unit for roller track profiles AL, with low-wear, low friction ball caster for flexible movements in two directions, for example at track switches and material locksMaterial:Ball: Steel, stainless steel Ball chassis: Steel Cage: Plastic PA, carbon fiber reinforcedEspeciales:Otros materiales, otras superficies bajo pedidoSurface:Ball steel: Chrome plated / Ball stainless steel: Plain Ball housing: Chrome plated Housing Attachment Clip: Zinc platedTip:Brush unit consisting of: – Ball insert, see 062AQ; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000

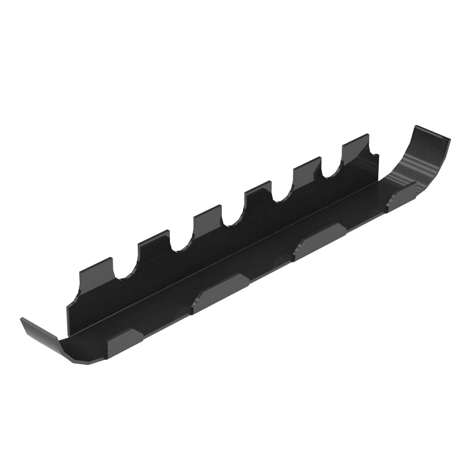

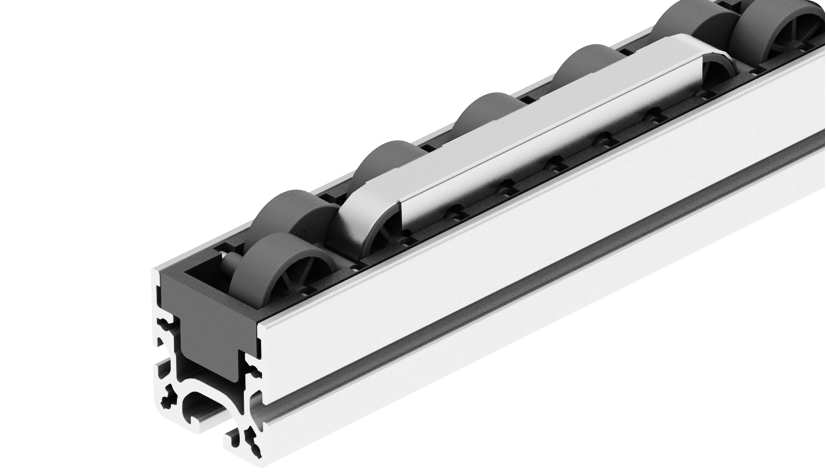

Brake H26
Países de Entrega:En todo el mundoDescription:A clip-on for 4 rollers H26; brakes workpieces and goods, in particular heavier ones, smoothly to give them the correct operating speedMaterial:Acero inoxidableEspeciales:Otros materiales, otras superficies bajo pedidoSuperficie:LisoTip:Compatible Roller Element see 062AER991.50; Compatible Rollers see 062RR991;
Brake R28
Países de Entrega:En todo el mundoDescription:A clip-on for 3 rollers R28; brakes workpieces and goods, in particular heavier ones, smoothly to give them the correct operating speedMaterial:Acero inoxidableEspeciales:Otros materiales, otras superficies bajo pedidoSuperficie:LisoTip:Compatible Roller Element R28 see 062AER2891.50; Compatible Rollers R28 see 062RR2891;

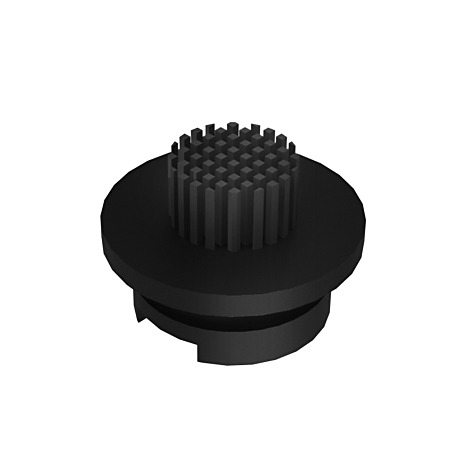

Brush Insert D24
Color:Fibers: Black Brush head: BlackPaíses de Entrega:En todo el mundoDescription:With elastic brush fibers, allowing a gentle, material-protective sliding of scratch sensitive goods in two directions; for roller tracks AL, can also be used in panels, e.g. on table surfacesMaterial:Fibers: Plastic PA, ESD electrostatical discharging Brush head: Plastic PP, ESD electrostatical dischargingSpecials:Other materials, other fiber heights on requestTip:Compatible Cage for Ball / Bush Insert D24 see 062ACD2491ESD.50;

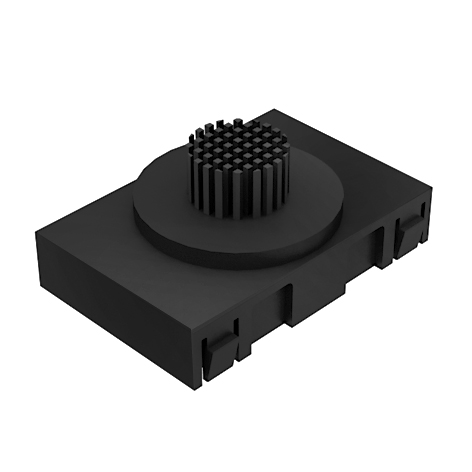

Brush Unit
Color:NegroPaíses de Entrega:En todo el mundoDescription:A preassembled brush unit for roller track profiles AL, with elastic brush fibers, allowing a gentle, material-protective sliding of scratch sensitive goods in two directionsMaterial:Fibers: Plastic PA, ESD electrostatical discharging Brush head: Plastic PP, ESD electrostatical discharging Cage: Plastic PA, carbon fiber reinforcedSpecials:Other materials, other fiber heights on requestTip:Brush unit consisting of: – Ball insert, see 062ABKESD; – Cage for ball insert, see 062ACD2491ESD.50; Compatible Slide Rail AL see 062AS91ESD.2000

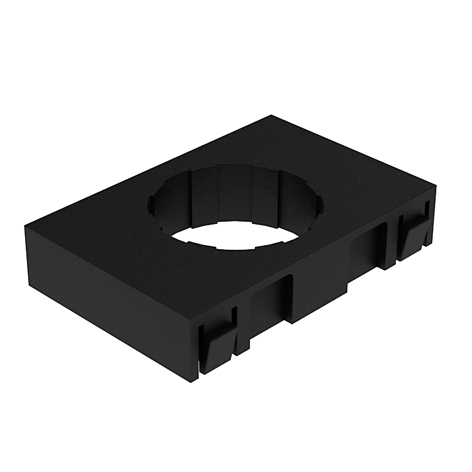

Cage for Ball / Brush Insert D24
Color:NegroPaíses de Entrega:En todo el mundoDescription:A sturdy cage for roller track profiles AL, to support a D24 ball or brush insertMaterial:Plastic PA, carbon fiber reinforcedEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Ball Insert see 062AQ; Compatible Brush Insert see 062ABKESD;

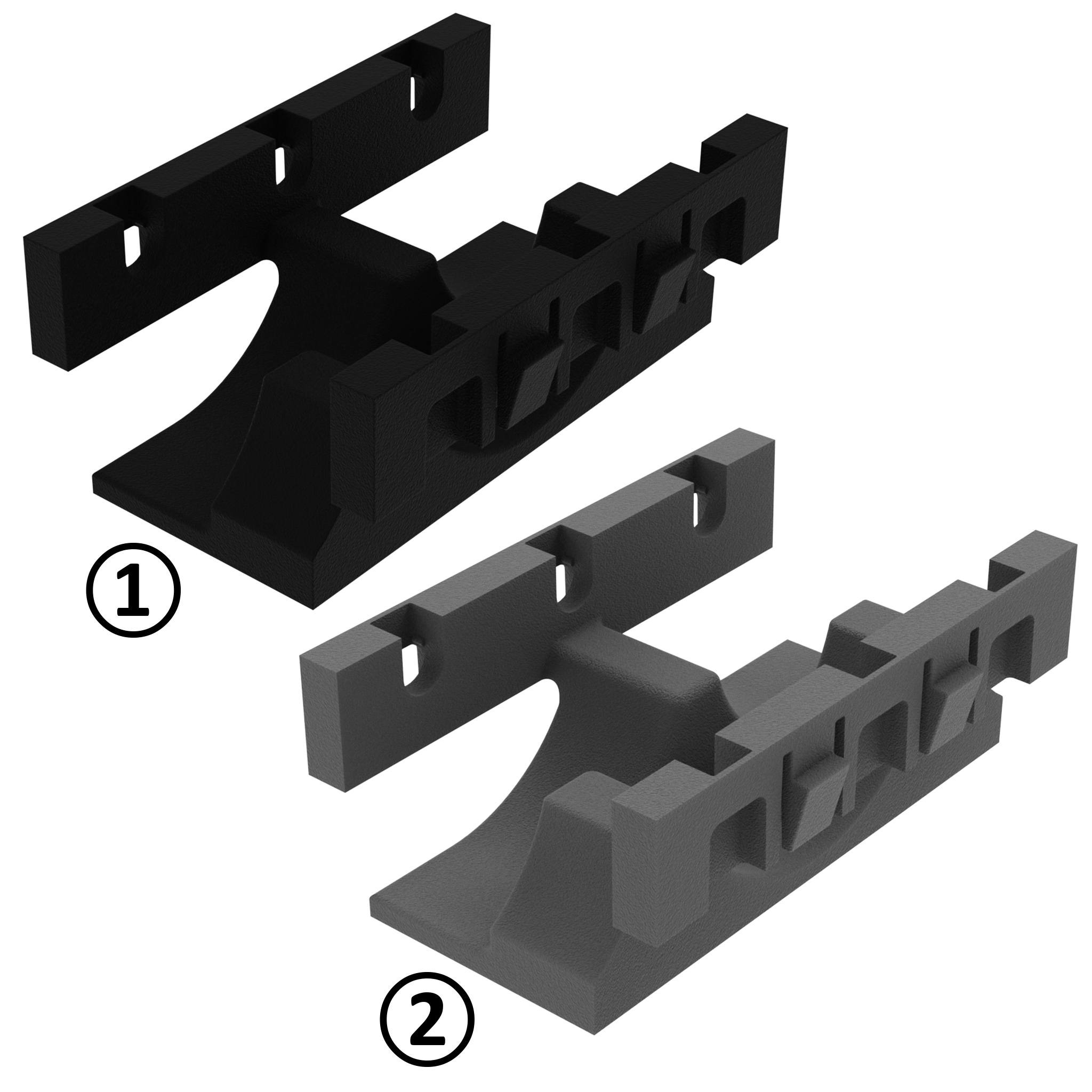

Cage for Rollers H26
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:A sturdy cage for roller track profiles AL, to support 3 rollers H26 by means of axles;Material:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Rollers H26 see 062RH2691; Compatible Axle see 062AXM; Compatible End Piece see 062ACEH2691.10
Cage for Rollers R28
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:A sturdy cage for roller track profiles AL, to support a roller R28 by means of an axle cage L50 also suitable for roller R28 with flangeMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Rollers see 062RR2891; Compatible Axle see 062AXM;

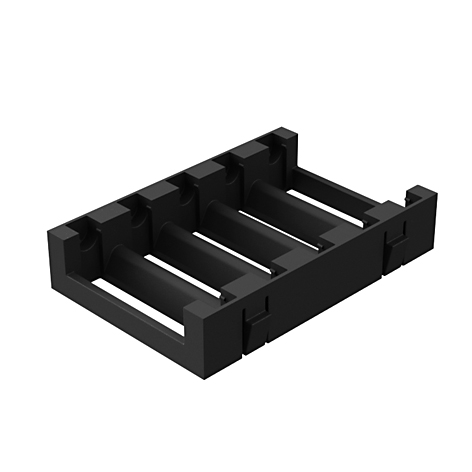

Cage for Rollers R9
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:A sturdy cage for roller track profiles AL, tosupport 5 rollers R9 by means of axlesMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Rollers see 062RR991; Compatible Axle see 062AXM;

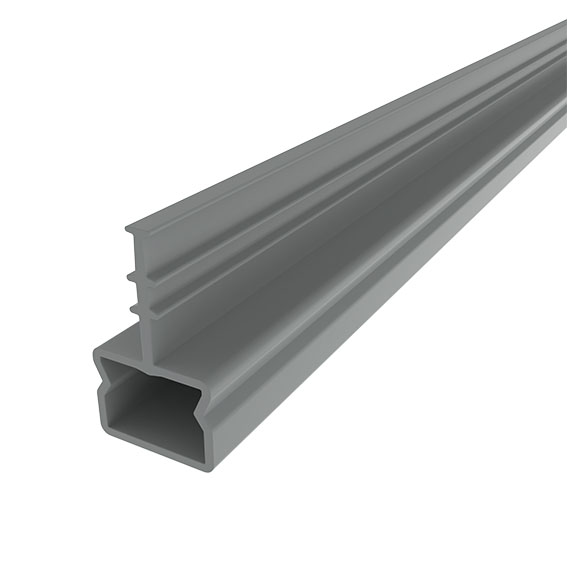

Central Guide XST
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:For a safe guiding and positioning in flexible conveyor facilities, guiding rails provide for an adequate work height for the product supplyMaterial:Versión estándar: Plástico PVC Versión de descarga electrostática ESD: Plástico PVC, reforzado con fibra de carbonoEspeciales:Otros colores bajo pedidoTip:Compatible Brackets for XST Roller Tracks see 062MHD28M, 062MHD30M and 062XHD40M

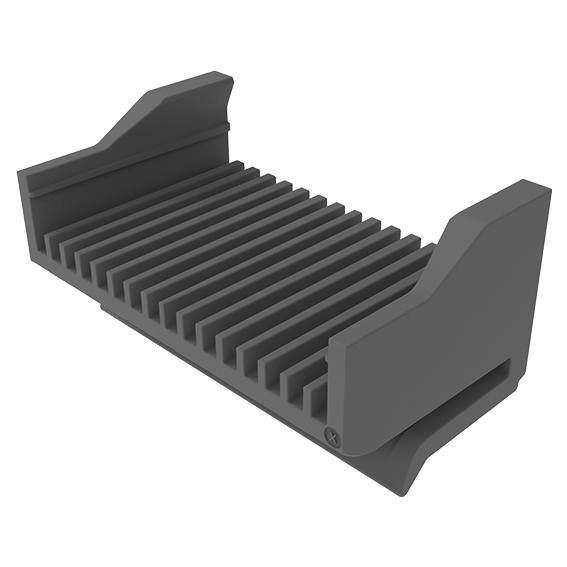

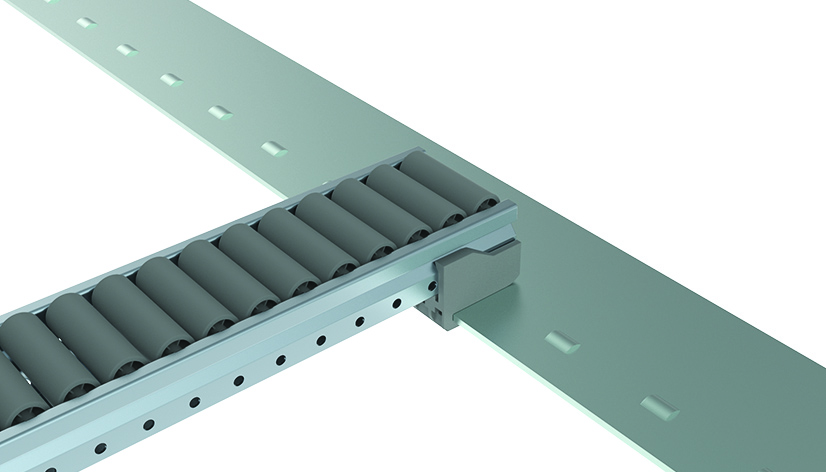

Docking Clip I 60x24
Color:PA, grisPaíses de Entrega:En todo el mundoDescription:For quick plug-in of roller tracks I 60x24 in the lateral connectors of flow beds of live storage shelvings, channel width can be adjusted horizontally in stepsMaterial:Plástico PAEspeciales:Otros colores bajo pedido

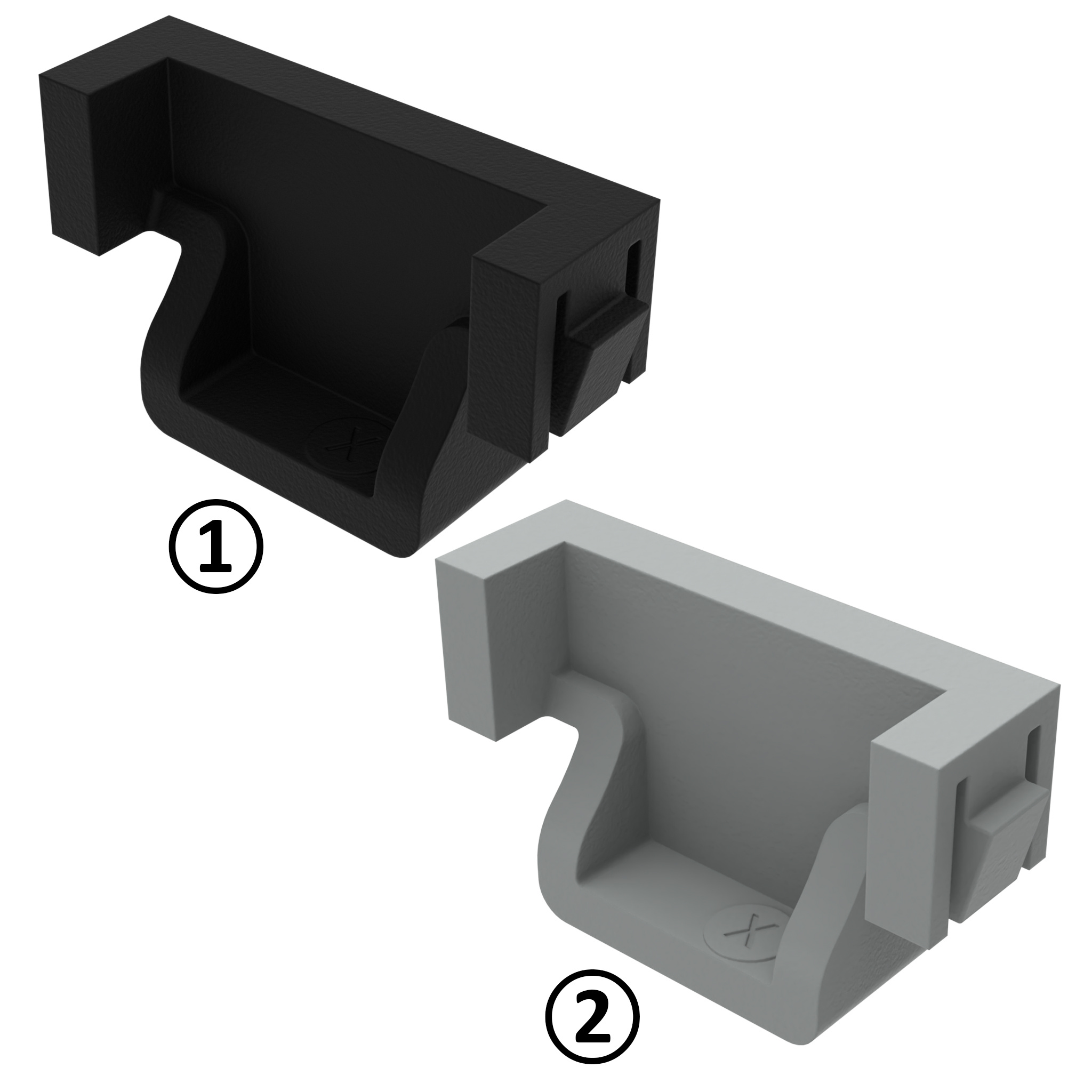

End Piece for Cage-Rollers H26
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:Provides a neat finish at the end of the profileMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Cage for Rollers H26 see 062ACH2691.50 Compatible Roller Unit H26 see 062AEH2691.50

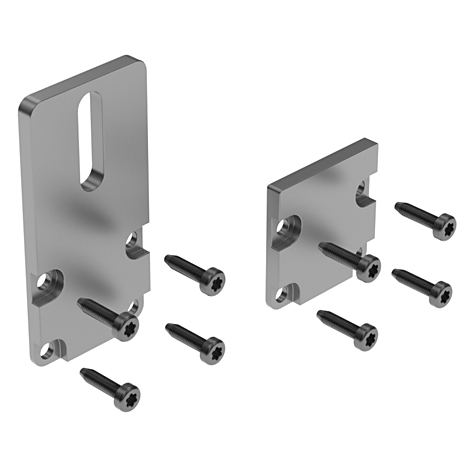

End Plate AL
PFA_AssemblySet:4 tornillos autoperforantes DIN 7504 Forma N - 3,9 x 16Países de Entrega:En todo el mundoDescription:To close the end face of AL roller track profiles, preventig inserts from slipping out, additionally the long version has an end stop (optionally, a buffer stop can be added)Material:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:GalvanizadoTip:Compatible Buffer Stop see 051DC553030FM08;

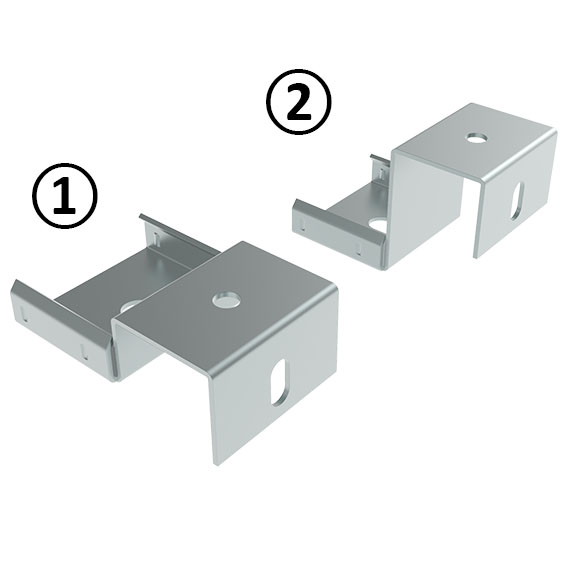

Holding Bracket I 60x24 40
Países de Entrega:En todo el mundoDescription:To mount roller tracks I 60x24 40 to profiles 40 mmMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

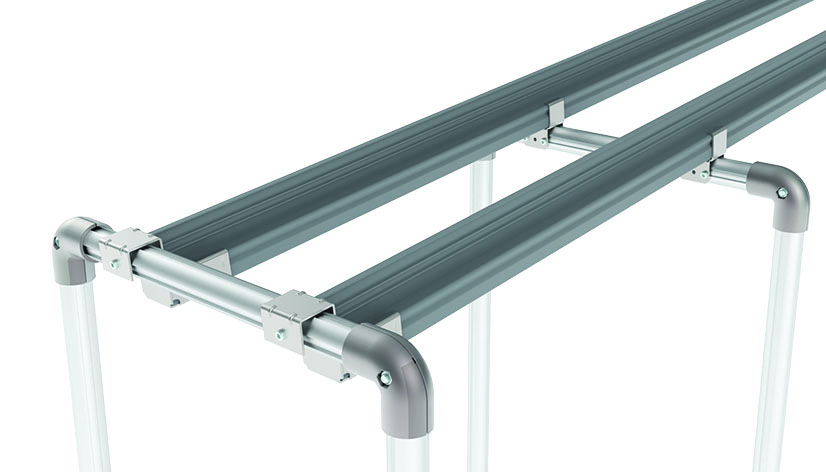

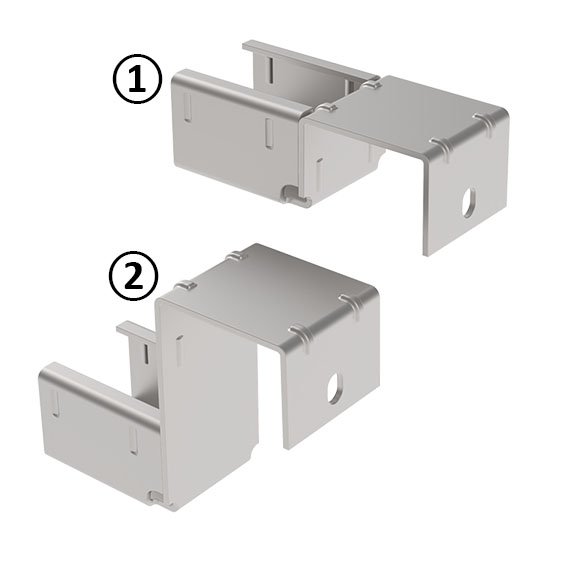

Holding Bracket XST 40
Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to profiles 40 mm, preventing inserts from slipping outMaterial:AceroSuperficie:Galvanizado

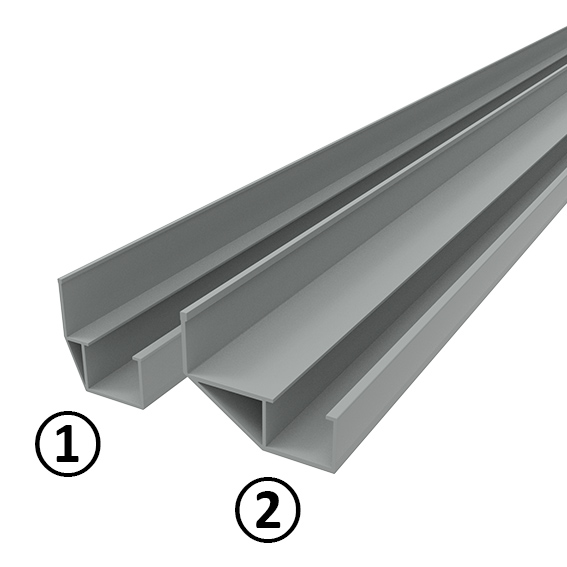

Lateral Guide XST
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:For a safe guiding and positioning in flexible conveyor facilities, guiding rails provide for an adequate work height for the product supplyMaterial:Versión estándar: Plástico PVC Versión de descarga electrostática ESD: Plástico PVC, reforzado con fibra de carbonoEspeciales:Otros colores bajo pedido
Roller H26
Color:Negro, amarillo, rojo, verde, grisPaíses de Entrega:En todo el mundoDescription:A resilient and smooth running half roller for roller tracks AL, short center distancedue to staggered roller layout, quickly replaceableMaterial:Standard version: Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fiber reinforcedEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Axle see 062AXM; Compatible Cage see 062ACH2691.50; Compatible Brake see 062RBH26E;
Roller R28 for Roller Units
Color:Negro, amarillo, rojo, verde, grisPaíses de Entrega:En todo el mundoDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;
Roller R9 for Roller Units
Color:Negro, amarillo, rojo, verde, grisPaíses de Entrega:En todo el mundoDescription:A compact roller for roller tracks AL, very small center distance and maximum number of axles for minimum vibrations and reduced point load on the goods, quickly replaceableMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR991.50;

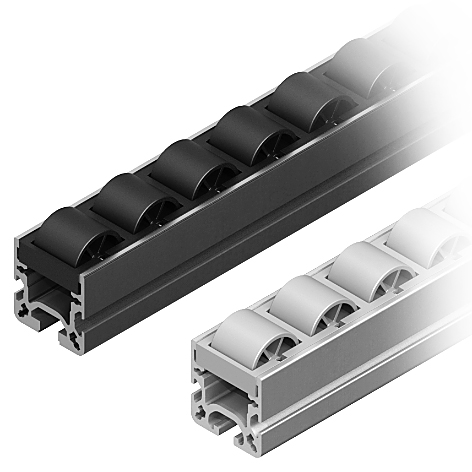

Roller Track AL R28
Color:Standard roller / cage: See table ESD electrostatical discharging roller / cage: See tablePaíses de Entrega:En todo el mundoDescription:Resilent and smooth running roller track AL R28, quickly replaceableMaterial:Roller track profile AL: Aluminum Standard roller: Plastic PA, glass ball reinforced ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Standard cage: Plastic PA, glass fiber reinforced ESD electrostatical discharging cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Other materials, other colors, other lengths on requestSurface:Roller track profile AL, standard version: Anodized Roller track profile AL, ESD electrostatical discharging version: Anodized and processed ESD electrostatical discharging Axle: Zinc plated

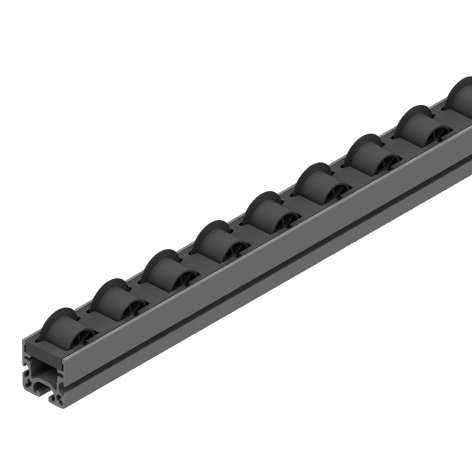

Roller Track AL R28 with Flange
Color:Standard roller / cage: See table ESD electrostatical discharging roller / cage: See tablePaíses de Entrega:En todo el mundoDescription:Resilent and smooth running roller track AL R28, quickly replaceable, with flange as lateral guidingMaterial:Roller track profile AL: Aluminum Standard roller: Plastic PA, glass ball reinforced ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Standard cage: Plastic PA, glass fiber reinforced ESD electrostatical discharging cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Other materials, other colors, other lengths on requestSurface:Roller track profile AL, standard version: Anodized Roller track profile AL, ESD electrostatical discharging version: Anodized and processed ESD electrostatical discharging Axle: Zinc plated
