FATH Bearing Units: Easily design slide units and sliding doors yourself
With FATH Bearing Units for C-rail profiles, you can easily design slide units and sliding doors for an industrial environment. The different versions are equipped with hardened rollers inside in different materials and versions and offer you a high degree of flexibility for the construction of individual applications according to need and customer requirements.
For the construction of guide carriages, the FATH Bearing Unit is combined with a suitable carriage plate. Centric and eccentric bearing units with different bolt geometries are available. As the eccentric bolts can also be adjusted afterward, you can build a guide unit free of play. The ideal result is achieved when two centric and two eccentric bearing units are installed.
In order to permanently ensure lubrication of guide rails and bearing units, FATH has a suitable stripping and lubrication system that protects against premature wear.
HIGHLIGHTS
- Individual design of slide units and sliding doors
- Centric and eccentric versions available
- Can be used offset by 180° for maximum flexibility
- Rugged construction
Countless applications can be implemented
Slide unit or suspension for sliding doors: The application possibilities are virtually unlimited. Since the FATH Bearing Units can also be installed offset by 90°, a 3D printer, for example, can be moved vertically and horizontally by attaching the appropriate slide units.
Sliding doors for a wide range of functions in production and assembly can be precisely constructed – whether simple construction for closing small areas or as part of a complex enclosure with practical access. The sliding doors are guided by mounting the FATH Bearing Units on a C-rail system and D14 shafts. For large structures, the guideway can be supported by rollers on the lower side if required.
Reduce wear and tear
To minimize wear and tear, FATH Bearing Units are equipped with a lubrication device. The cap is equipped with a felt lining, which in addition protects the lubrication unit against leakage. For lubrication, the lubricating oil is simply poured into the opening.
WOULD YOU LIKE TO DISCOVER ALL FATH PRODUCTS RELATING TO SLIDERS AND ROLLERS?
You can find all Sliders, Door Guides, Rollers and Linear Guides directly here.
Versions

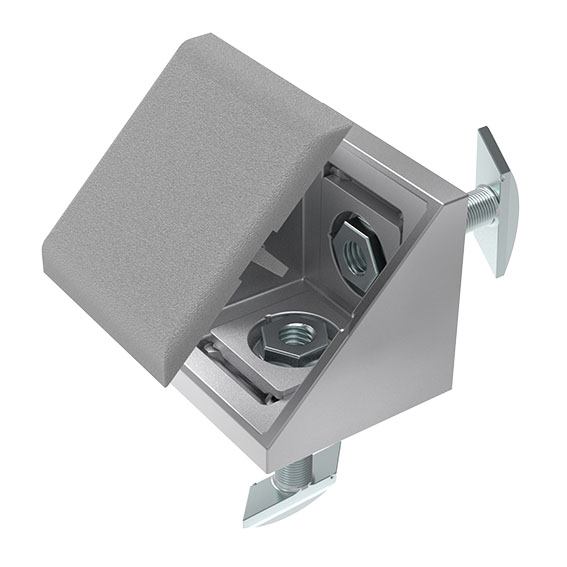

Description:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackSet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capPaíses de Entrega:En todo el mundo
Description:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackSet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capPaíses de Entrega:En todo el mundo
Description:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Color aluTip:Compatible Cover Cap see 093WA809Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Powder coated Screws and T-nuts: Zinc platedColor:Angle: Alu color Cover cap: BlackSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 16 4 square washersEspeciales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Description:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Angle: Alu color Cover cap: Gray≈ RAL 7004 Ring: BlackSet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capPaíses de Entrega:En todo el mundo
Description:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Color aluTip:Compatible Cover Cap see 093WA406Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo

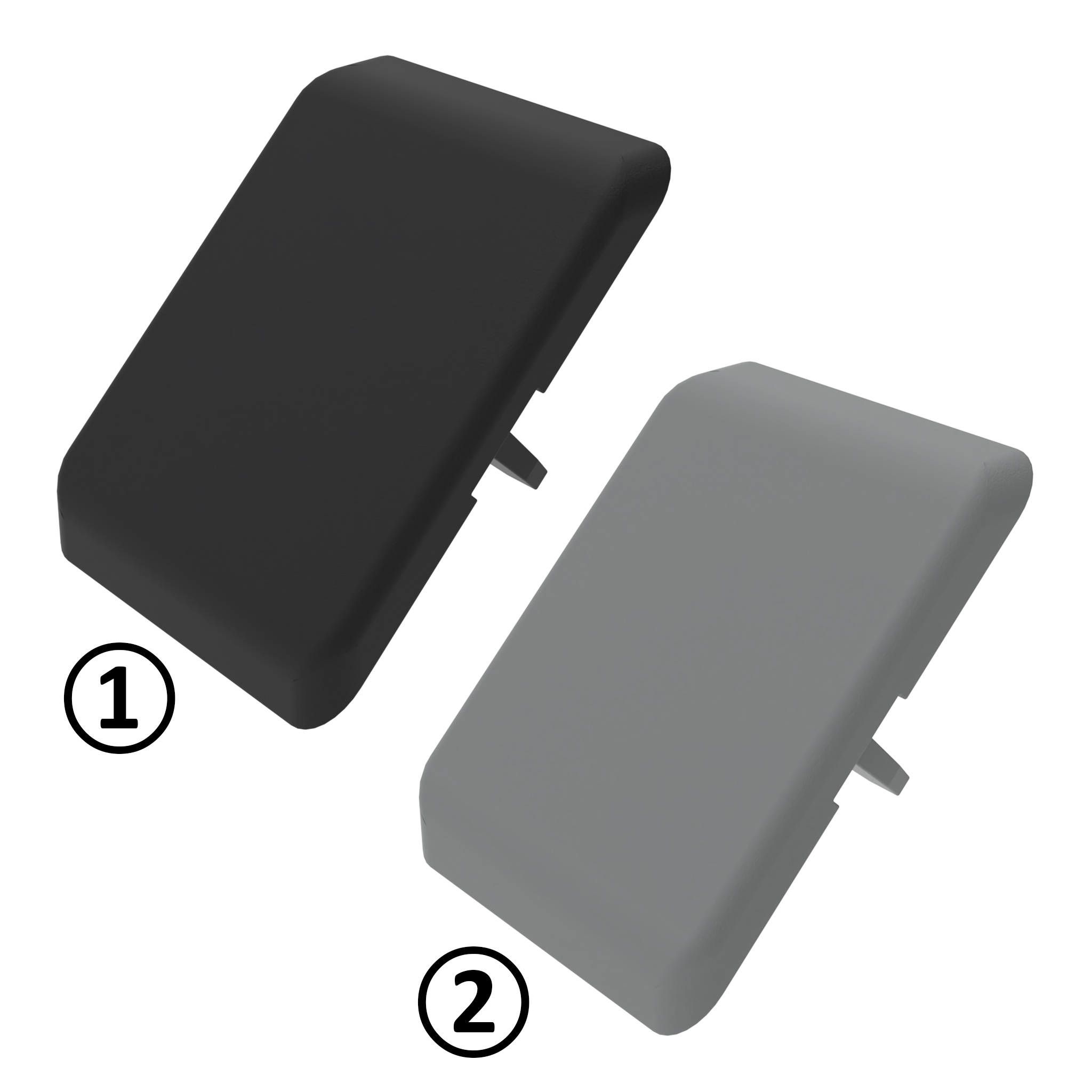

Description:To cover the open side of the connection angleMaterial:Plástico PA, reforzado con fibra de vidrioColor:Negro, grisTip:Compatible Alu Connection Angle I40 M (Set) see 093W406N08S01Especiales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Description:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Color aluTip:Compatible Cover Cap see 093WA809Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Powder coated Screws and T-nuts: Zinc platedColor:Angle: Alu color Cover cap: BlackSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 16 4 square washersEspeciales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Description:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Color aluTip:Compatible Cover Cap see 093WA406Especiales:Otras superficies, otros colores bajo pedidoPaíses de Entrega:En todo el mundo

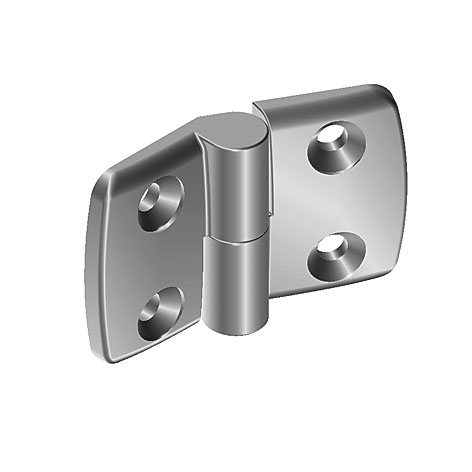

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorPFA_Fastening:Por delante, con tornillos avellanados M6Tip:Compatible Central Bolts see 095AN05Países de Entrega:En todo el mundo

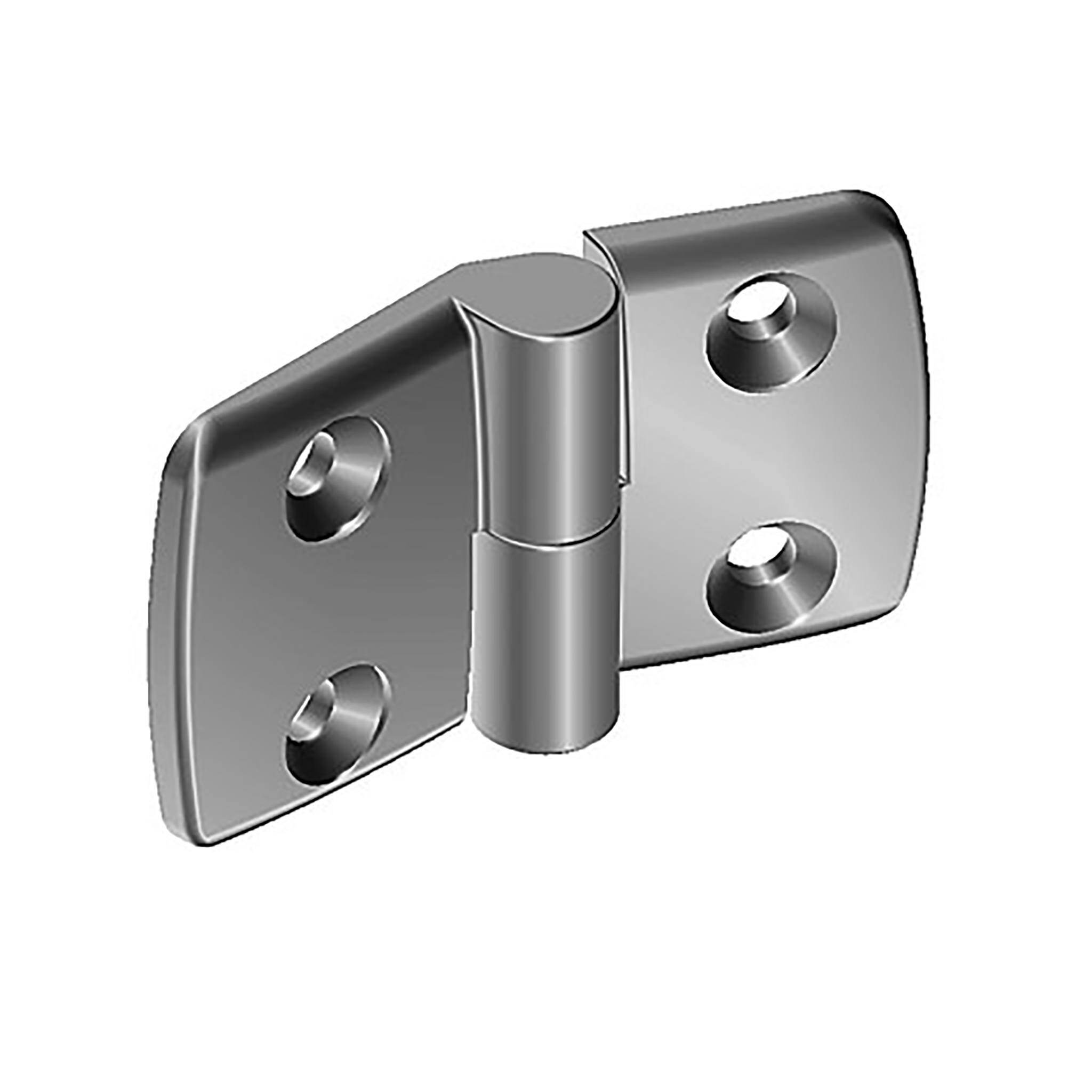

Description:To hinge panels or aluminum profiles, each wing with a hole for centering bolts, with bearing system for pinMaterial:Wings: Die-cast aluminum Pin: Stainless steel Bearings: PTFESurface:Wings: Powder coated Pin: PlainColor:Wing: Alu colorPFA_Fastening:Por delante, con tornillos avellanados M6Tip:Compatible Central Bolts see 095AN05Países de Entrega:En todo el mundo

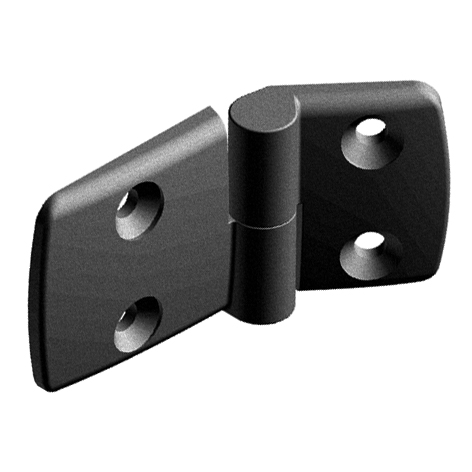

Description:To hinge panels or aluminum profilesMaterial:Wings: Plastic PA, glass fiber reinforced Bolt: Stainless steelColor:NegroPFA_Fastening:Por delante, con tornillos avellanados M6Specials:ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on requestPaíses de Entrega:En todo el mundo
