CONNECTORS FOR ALUMINUM TUBULAR FRAME PROFILES D28 & D30
Flexible, secure, uncomplicated: FATH Connectors for Tubular Frame Profiles D28 and D30
Due to their special geometry (dovetail shape), the aluminum round tube systems D28 and D30 are particularly efficient. With FATH connectors, you can create twist-resistant and stable connections for these round tube systems in a few simple steps. This results in a positive connection that provides long-term strong support. You can cut the tubular frame profiles to length yourself. Particular precision is not necessary, since the FATH connectors compensate to some degree for length tolerances, angular errors and uneven cuts.
Thanks to the wide variety of connectors and functions, you can implement the right structure for almost all requirements. The planning of individual structures for workstations, material trolleys, shelves, material feeds, etc. is easy due to the small number of required parts, and the assembly can be done quickly.
In the industrial production environment, requirements or the workplace can change at any time. FATH connectors for aluminium tubular frame profiles D28 & D30 can be quickly removed and reused, just like the profiles themselves. This offers maximum flexibility for your designs in industrial production – an economical solution that also scores points in terms of sustainability. FATH connectors are delivered ready for use as a completely pre-assembled set and can be installed directly.
HIGHLIGHTS
- 90° connection
- Connection from 40x40 to D28/D30
- Corner connection
- Parallel connection
- Ball connector inside and outside
- X connector
- 45° connection
- Crosspieces
Multifunctional plate fastening for tubular frame profiles
Multifunctional plate fastening from FATH enables surface elements to be fastened to a tubular frame profile with an outside diameter of 30 mm in a variety of ways: bottom front, tubular frame profile flush to a surface element, any position on a surface element bottom or top front. The fixing clamp D30 (set) consists of two components, a basic element and height compensation. You can use the basic element individually or simply screw it together with the height compensation if necessary. The tubular frame profile is then completely enclosed. Individual designs for almost any requirement can be built quickly and easily – from splash guards to cladding.
VERSIONS
Table brackets
A large selection of mounting options for table plates are available:

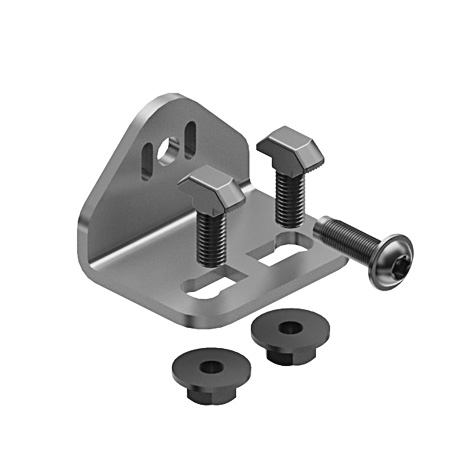

Países de Entrega:En todo el mundoDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; adjustable by slotted holesMaterial:AceroSet:1 mounting bracket, 1 self-tapping screw S8 x 25 - hexalobular Socket T40, 2 hammer head screws - Nut 10 - M8 x 20, 2 flange nuts M8Superficie:Galvanizado

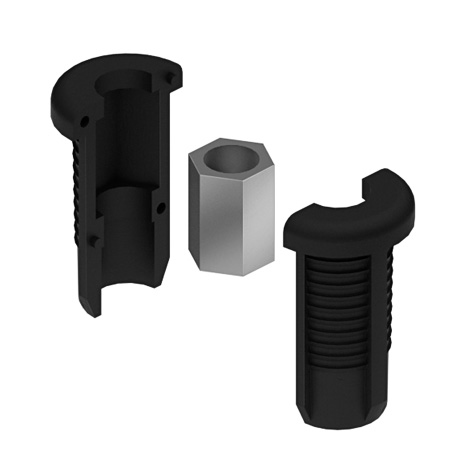

Color:Sleeve: BlackPaíses de Entrega:En todo el mundoDescription:To fix leveling feet or swivel casters to the front of tubular frame profiles D28L with Ø 28 mm outer diameterMaterial:Sleeve: Plastic PA, carbon fiber reinforced Long nut: SteelSet 1:1 sleeve, two-part 1 long nut M8Set 2:1 sleeve, two-part 1 long nut M12Surface:Long nut: Zinc plated
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

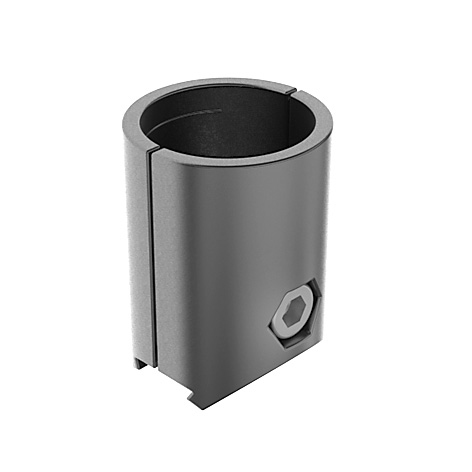

Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
You would like to SEE ALL COMPONENTS for Tubular Frame Profiles D28 & D30 ?
Click here to discover all the possibilities: Adapters, connectors, tool holders and many other accessories
Roller conveyor
Attachment brackets are available in various versions as well as for the two different versions of steel roller conveyor and aluminum rail:
Assembly Set:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Assembly Set:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

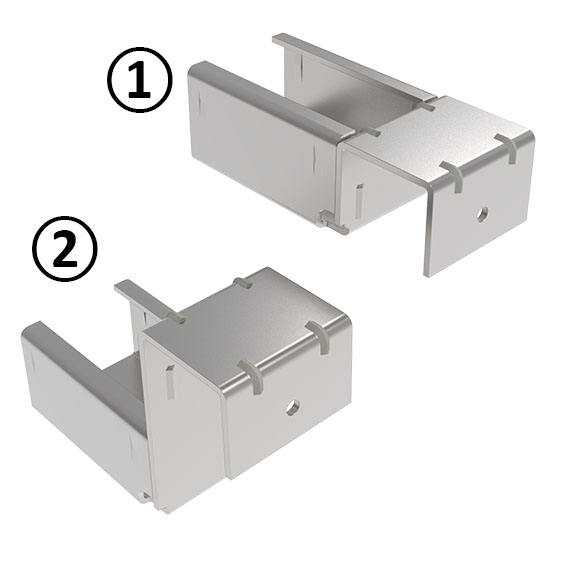

Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Assembly Set:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

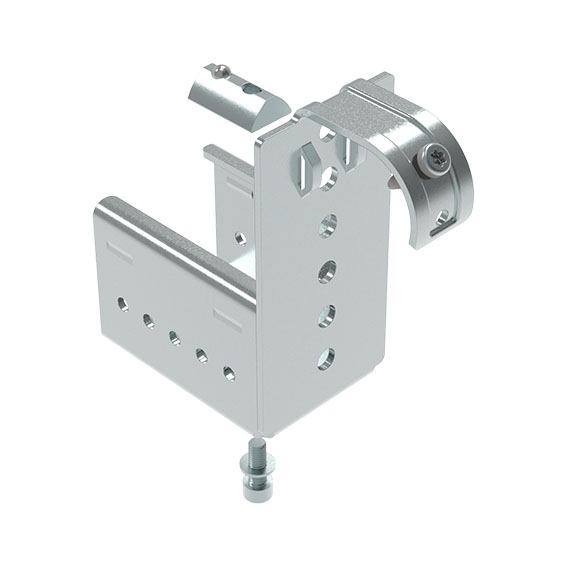

Assembly Set:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:Galvanizado
Assembly Set:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Assembly Set:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Assembly Set:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:Galvanizado

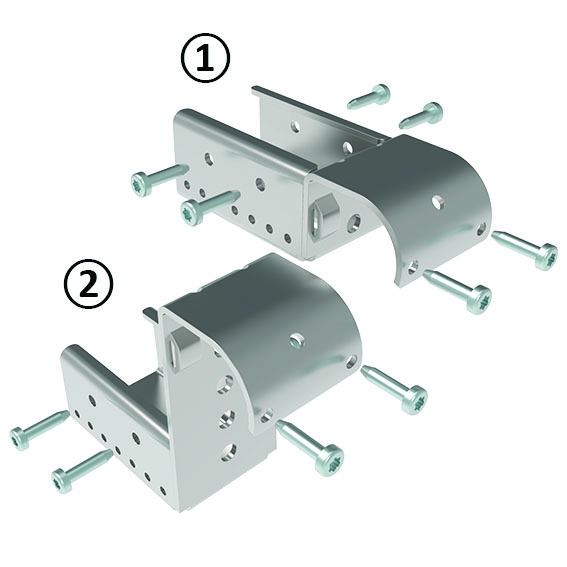

Assembly Set:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Assembly Set:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Assembly Set:6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Assembly Set:5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Assembly Set:1 self-drilling screw DIN EN ISO 15481 (DIN 7504) - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:Galvanizado
Flexible & multifunctional:

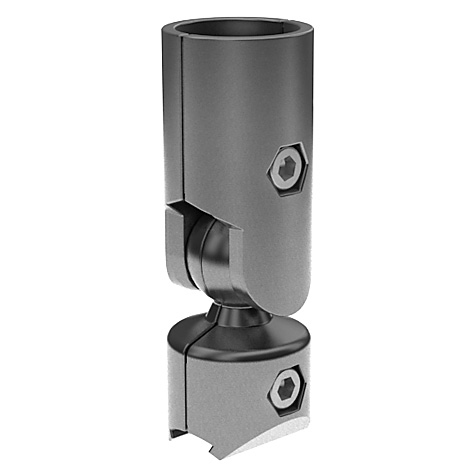

Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 components for outer ball connector D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D28 ,45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6Surface:Connector: Plain Assembly set: Zinc plated

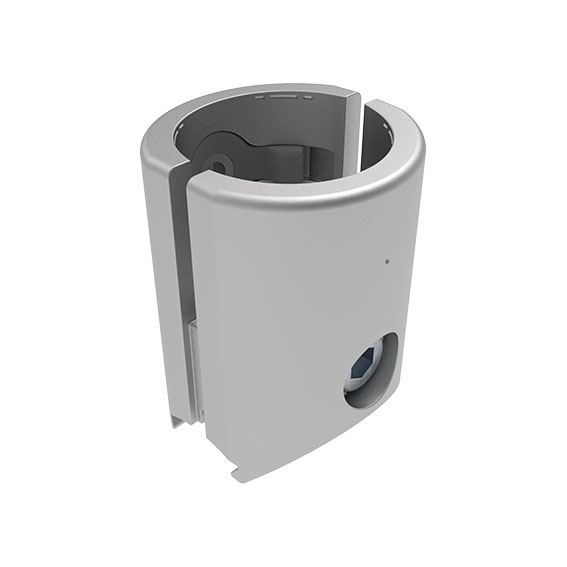

Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right anglesMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for outer T-connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
