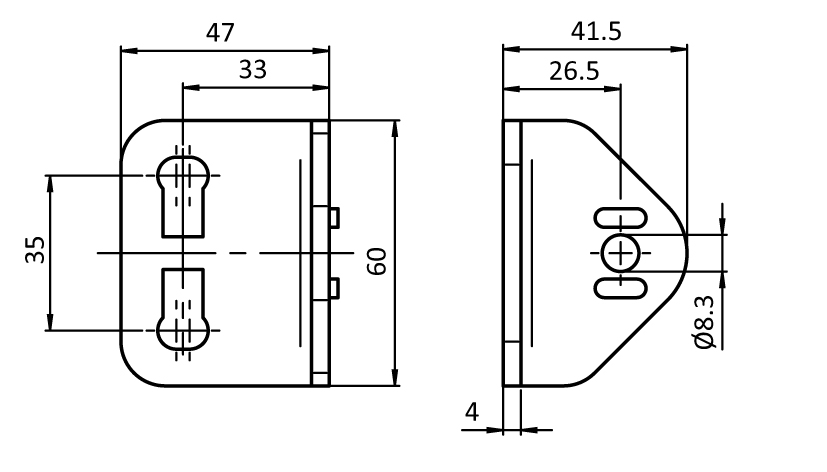

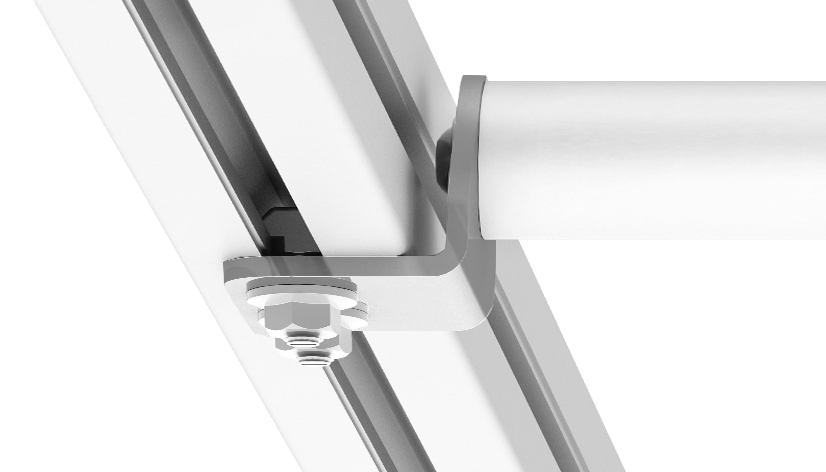

Mounting Bracket 60 x 47, D28 (Set)
Número de producto:
099RV28TWS01
Información sobre el producto "Mounting Bracket 60 x 47, D28 (Set)"
Países de Entrega:
En todo el mundo
Description:

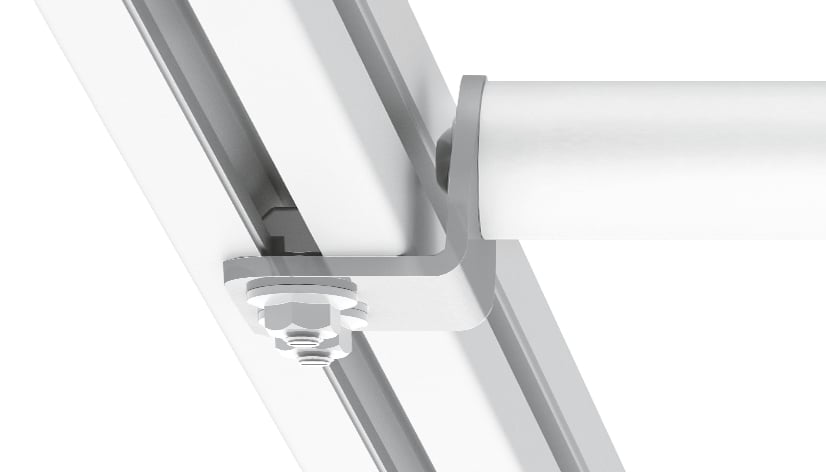

To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; adjustable by slotted holes
Material:
Acero
Set:
1 mounting bracket,
1 self-tapping screw S8 x 25 - hexalobular Socket T40,
2 hammer head screws - Nut 10 - M8 x 20,
2 flange nuts M8
Superficie:
Galvanizado
En todo el mundo
Description:
To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; adjustable by slotted holes
Material:
Acero
Set:
1 mounting bracket,
1 self-tapping screw S8 x 25 - hexalobular Socket T40,
2 hammer head screws - Nut 10 - M8 x 20,
2 flange nuts M8
Superficie:
Galvanizado
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 20 conjuntos |
| Model: | For tubular frame profiles |
| Numero de ERP: | 126847 |
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Peso (g): | 176.0 |
| Zolltarifnummer: | 73269098900 |
