Roll-in Double T-slot Nut for Universal Connector I, Slot 8

Información sobre el producto "Roll-in Double T-slot Nut for Universal Connector I, Slot 8"

Países de Entrega:
En todo el mundo

Description:
Roll-in double T-slot nut

Material:
Double T-slot nut: Steel
Ball: Stainless steel
Spring: Spring steel

Specials:
Different lengths with multiple threads in different sizes available on request

Surface:
Double T-slot nut: Zinc-plated
Ball: Plain
Spring: Plain
Model: Slot 8, steel
Cantidad por Paquete: 100 piezas
Número de Arancel Aduanero de Exportación: 73181900
Peso (g): 36.0
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Numero de ERP: 163573
Old Part #: 096008D76
Zolltarifnummer: 73181900900

Variantes

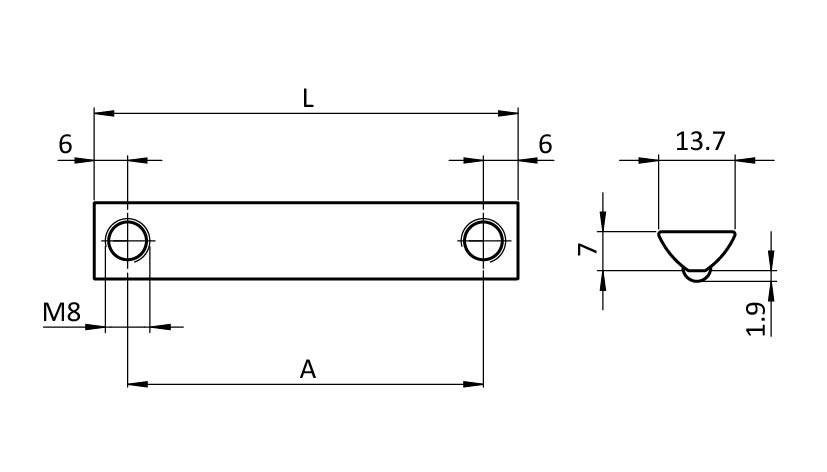

Número de producto A (mm) L (mm) M Profile
096008D36S03 24.0 36.0 M8 I
096008D76S01 64.0 76.0 M8 I
