Screw Connector I, Single Side

Descripción:

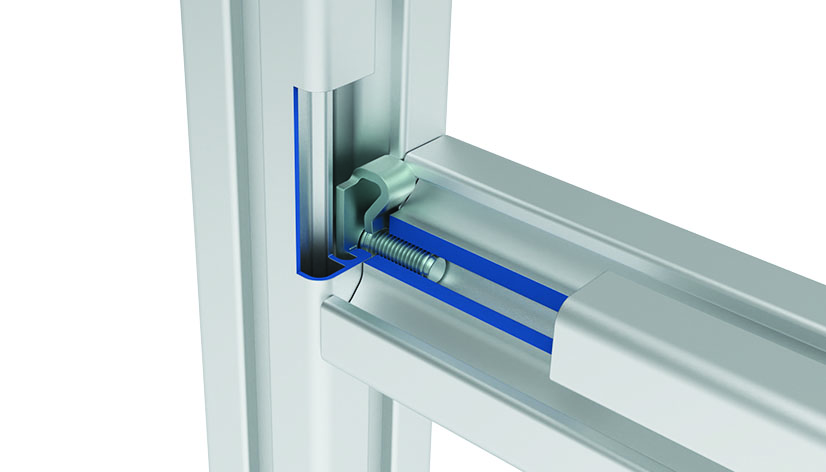

To connect two aluminum profiles; penetrates the andonized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection; free slot for the mounting of panels on one side

Material:
Acero

Superficie:
Galvanizado

Países de Entrega:
En todo el mundo

Cantidad por paquete:	100 piezas
Model:	Slot 8
Peso (g):	8.6
Numero de ERP:	132368

Variantes

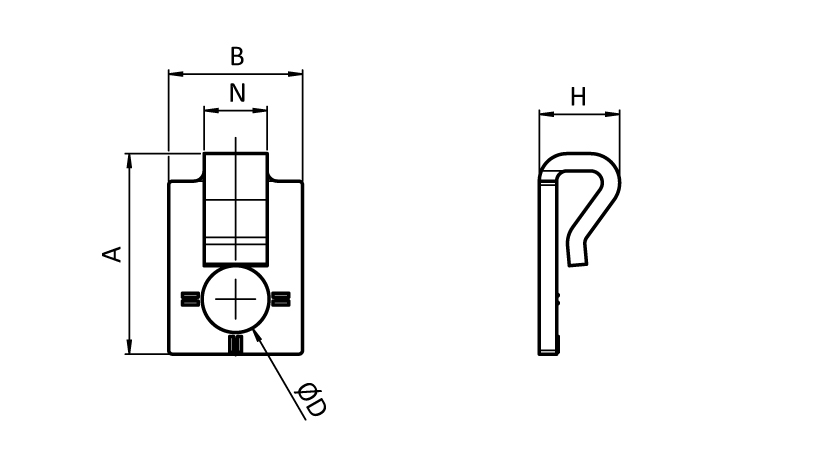

Número de producto	D (mm)	Version	H (mm)	Profile	ESD	Ranura N (mm)	A x B (mm)
092140	8.5	Turn-lock	10.2	-	Descarga electrostática ESD	8	25.5 x 17.0
099F0840SM08	8.5	With pan-head screw M8 x 20	10.2	-	Descarga electrostática ESD	8	25.5 x 17.0
099F0840SS07	8.5	With self-forming screw S7 x 20	10.2	I	Descarga electrostática ESD	8	25.5 x 17.0
