Self Forming Screw

Información sobre el producto "Self Forming Screw"

Países de Entrega:
En todo el mundo

Description:

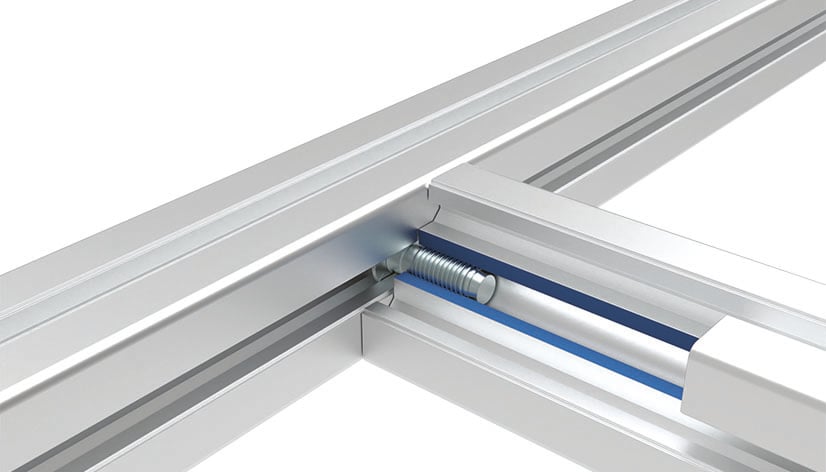

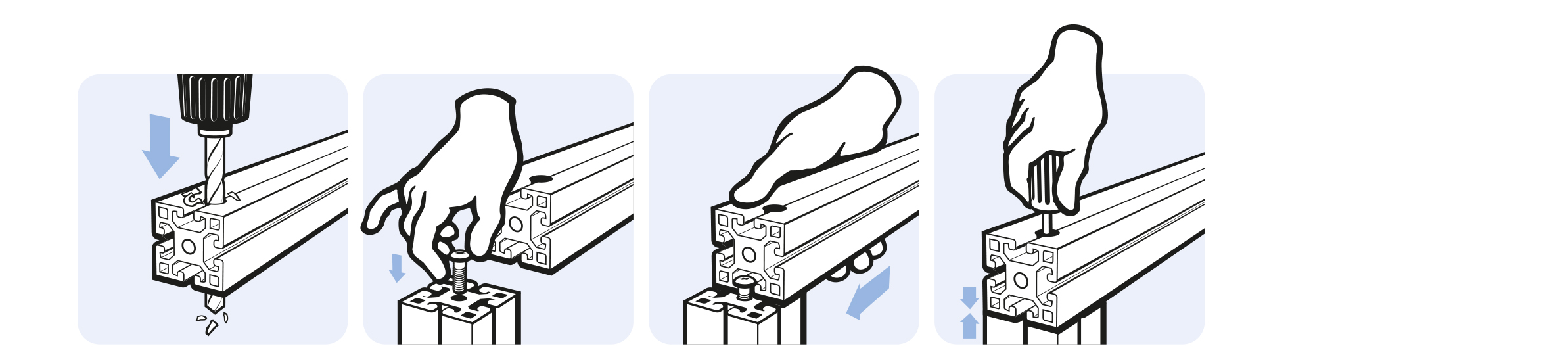

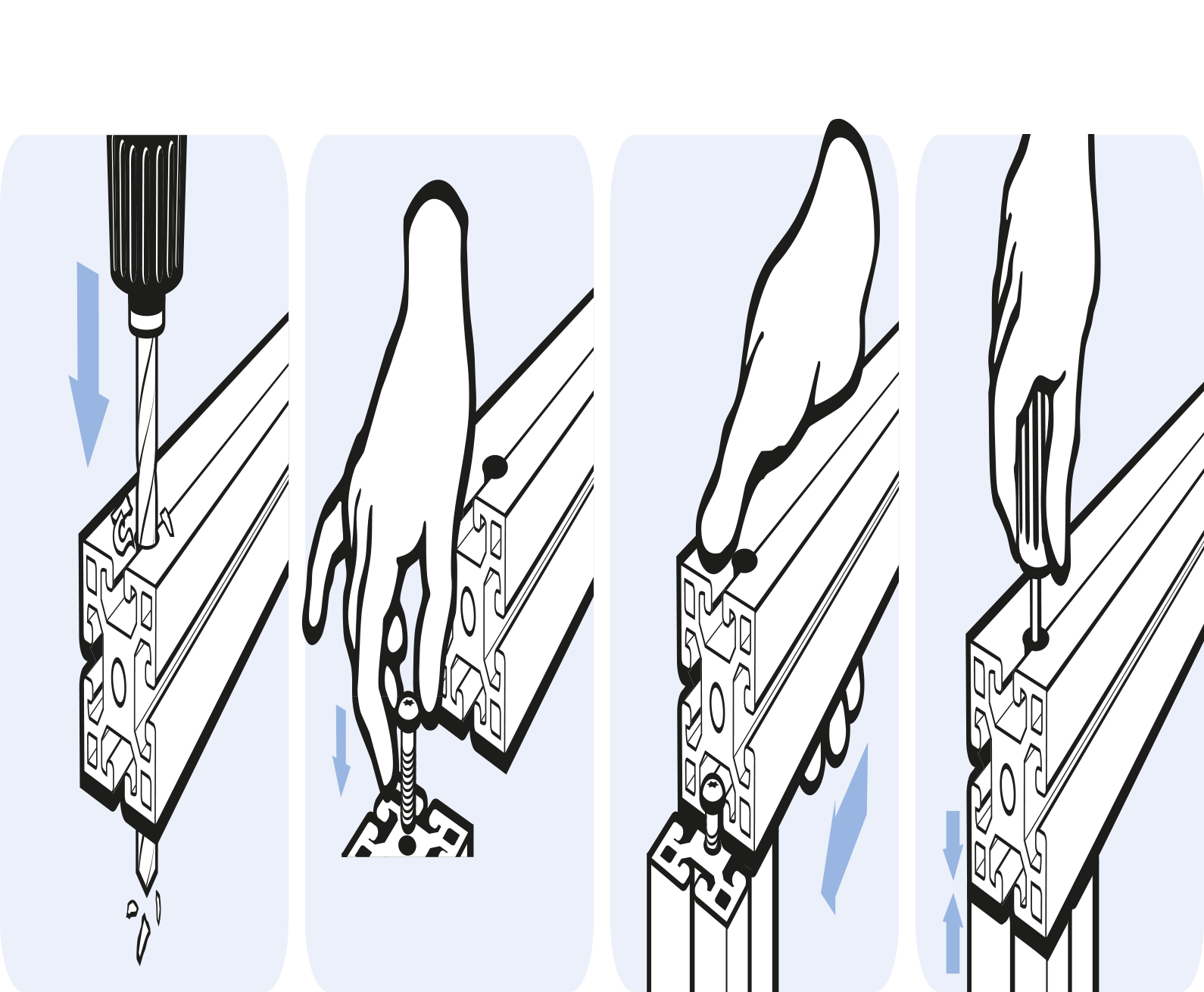

To connect two aluminum profiles; no thread cutter is necessary to fix the screw; because of the special form of the head of the screw and the self-forming thread, a conductive connection of two aluminum profiles is achieved

Material:
Acero

Superficie:
Galvanizado
Model: Con Torx
Cantidad por Paquete: 100 piezas
Número de Arancel Aduanero de Exportación: 73181499
Peso (g): 25.2
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Numero de ERP: 100712

Variantes

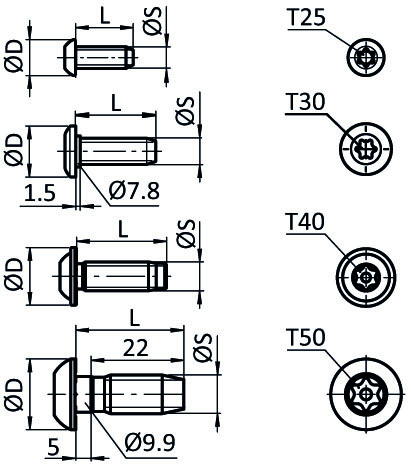

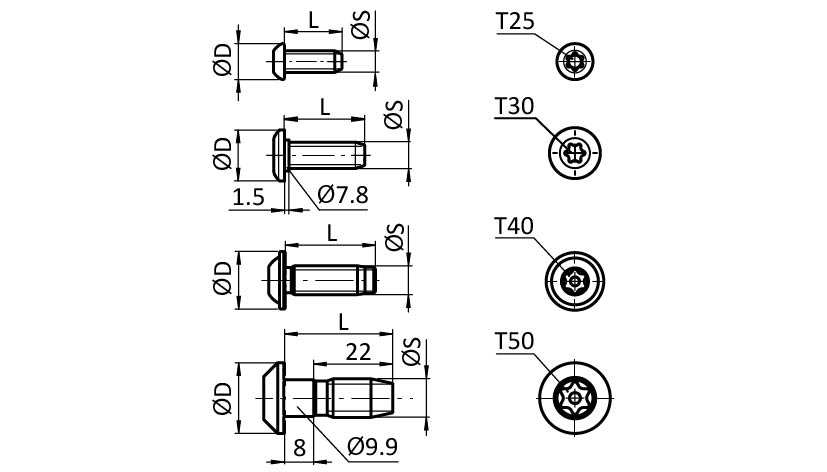

Número de producto Fig. ØD (mm) ESD Size S x L (mm) TX Profile
093S0616T 10.0 ESD S6 x 16 T25 B
093S0722T 14.0 ESD S7 x 22 T30 I
093S0825T 16.0 ESD S8 x 25 T40 B

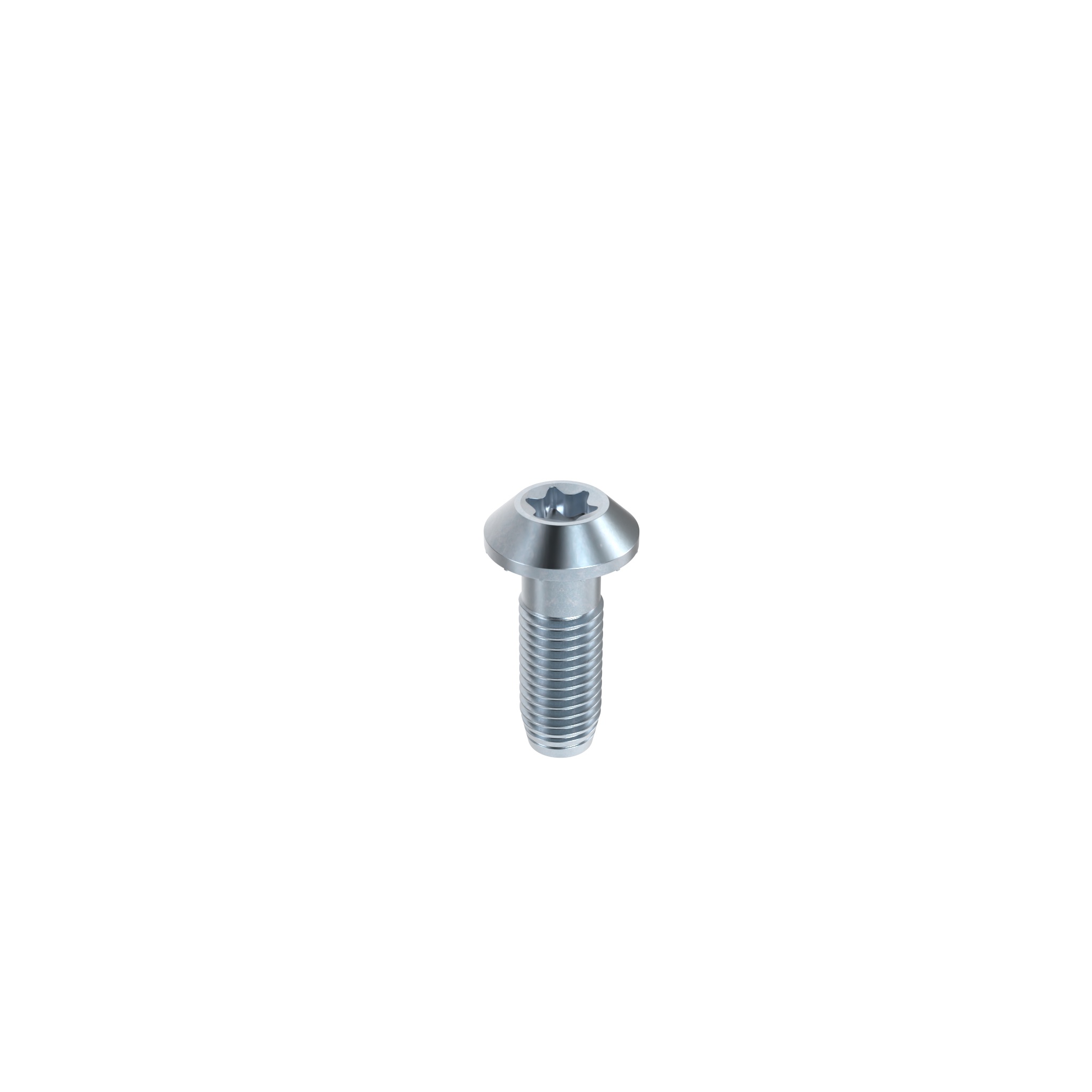

093S1230T 19.0 ESD S12 x 30 T50 B
