Side Protection Profile 40, Slot 8

Información sobre el producto "Side Protection Profile 40, Slot 8"

Color:
Negro, gris

Países de Entrega:
En todo el mundo

Description:

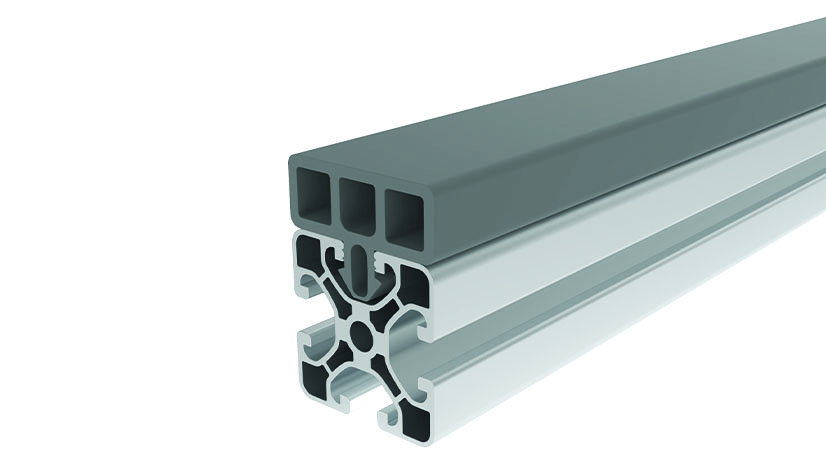

To prevent damages and injuries, impact protection by hollow chamber profile on aluminum profiles

Material:
Plástico TPE, ≈ 70 Shore A

Tip:
Compatible Cover Cap for Side and Corner Protection Profile 40 see 091385S01
Compatible Corner Protection Profile 40, slot 8 see 092325S01

PFA_Tip2:
Observación: ¡Está realizando el pedido en metros!

Zolltarifnummer:
40082900900
(ECLASS 6.0): 23360192
(ECLASS 7.0): 23360192
(ECLASS 8.0): 23360192
(ECLASS 9.0): 23360192
(ECLASS 10.0): 23360192
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Cantidad por Paquete: 40 metros (20 piezas a 2 m)
Model: Plástico TPE
Weight (g/m): 590.5

Variantes

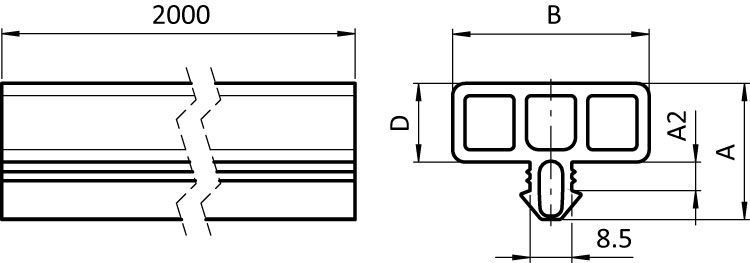

ID de producto B (mm) Profile A (mm) D (mm) Ranura N (mm) A2 (Profile) (mm) Fig. Color
092324 40.0 I 28.0 16.0 8 5.7 (4.5) Gris ≈ RAL 7042
092324S01 40.0 I 28.0 16.0 8 5.7 (4.5) Negro
