Soporte de suspensión CS (Juego)
Precio normal:
0,00 €
Número de producto:
093WL201N10S04
Cantidad por Paquete:
1 juego
Información sobre el producto "Soporte de suspensión CS (Juego)"
Color:
Safety strap: Black,
Anti-loss washer: Natural
Países de Entrega:
En todo el mundo
Description:

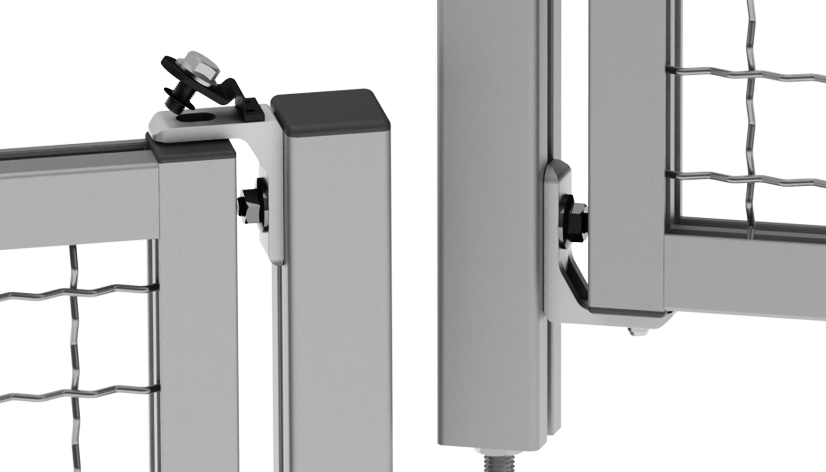

To attach a protective frame panel betweentwo posts, according to Machinery Directive 2006/42/EC
Material:
Suspension Bracket: Zinc die-cast
Assembly set: Steel
Safety strap: Plastic PA
Anti-loss washer: Plastic PA
Set:
2 suspension brackets,
2 suspension brackets cs pre-assembled,
2 knurled pins Ø 8.6, for core hole,
2 locking screws - Verbus Ripp B - M8 x 25,
2 safety straps,
2 anti-loss washers,
4 hammer head screws M8 x 20,
4 flange nuts M8
Surface:
Suspension Bracket: Plain,
Assembly set: Zinc plated
Safety strap: Black,
Anti-loss washer: Natural
Países de Entrega:
En todo el mundo
Description:
To attach a protective frame panel betweentwo posts, according to Machinery Directive 2006/42/EC
Material:
Suspension Bracket: Zinc die-cast
Assembly set: Steel
Safety strap: Plastic PA
Anti-loss washer: Plastic PA
Set:
2 suspension brackets,
2 suspension brackets cs pre-assembled,
2 knurled pins Ø 8.6, for core hole,
2 locking screws - Verbus Ripp B - M8 x 25,
2 safety straps,
2 anti-loss washers,
4 hammer head screws M8 x 20,
4 flange nuts M8
Surface:
Suspension Bracket: Plain,
Assembly set: Zinc plated
| Cantidad por Paquete: | 1 juego |
|---|---|
| Model: | Zinc die-cast, slot 10 |
| Peso (g): | 207.0 |
| ECLASS 6.0: | 23369290 |
| ECLASS 7.0: | 23369290 |
| ECLASS 8.0: | 23369290 |
| ECLASS 9.0: | 23369290 |
| ECLASS 10.0: | 23369290 |
| ECLASS 11.0: | 23360492 |
| ECLASS 12.0: | 23360492 |
| ECLASS 13.0: | 23360492 |
| Zolltarifnummer: | 79070000900 |
| Número de Arancel Aduanero de Exportación: | 79070000 |
| Numero de ERP: | 128704 |
