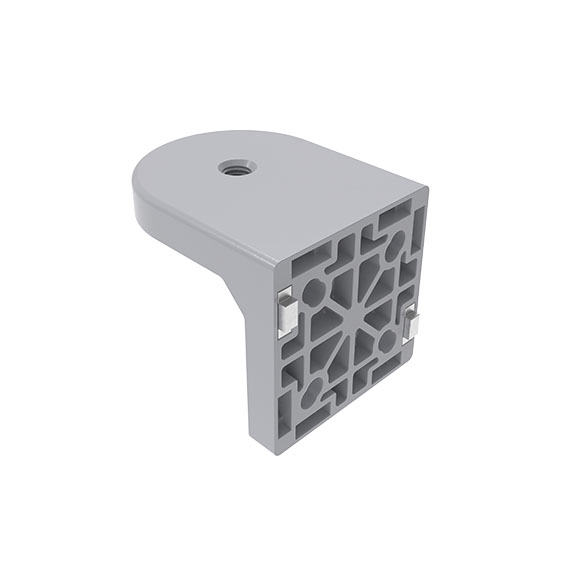

Soporte para pata niveladora 80/90 x 100

Descripción:

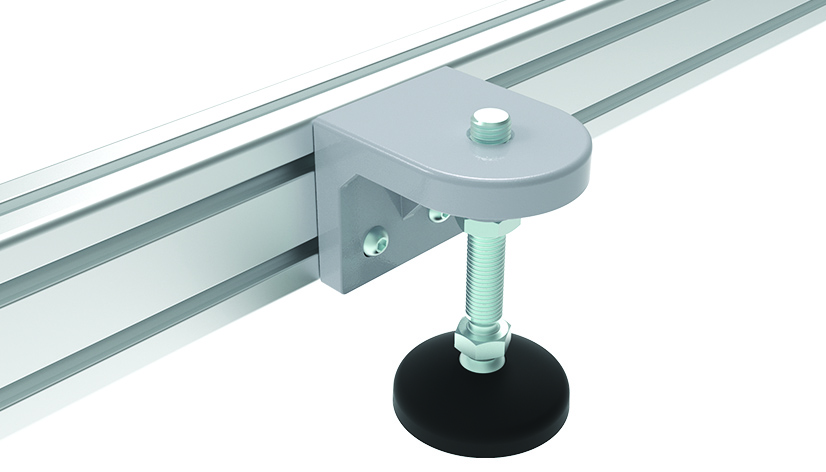

For height-adjustable mounting of leveling feet on the side of the profile frame, for small floor distance and low center of gravity
Material:
Leveling foot bracket: Aluminum die-cast
Centering piece: Zinc die-cast

Surface:
Leveling foot bracket: Powder coated
Centering piece: Plain

Color:
Color alu

Assembly Set:
2 centering pieces - slot 8 to slot 10

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: Aluminio fundido a presión, perfil 80 y hasta
Peso (g): 374.1
Numero de ERP: 148938

Variantes

Número de producto Version M CAD
incl. conjunto de montaje M12
incl. conjunto de montaje M16

Clasificación

ECLASS 6.0
23250190
ECLASS 7.0
23250190
ECLASS 8.0
23250190
ECLASS 9.0
23250190
ECLASS 10.0
23250190
ECLASS 11.0
23250392
ECLASS 12.0
23250392
ECLASS 13.0
23250392
Zolltarifnummer
76169910990
Número de Arancel Aduanero de Exportación
76169910

Certificados

Tags

Profile Type Profile Type B, Profile Type I
Profile Form T-slot Profiles
