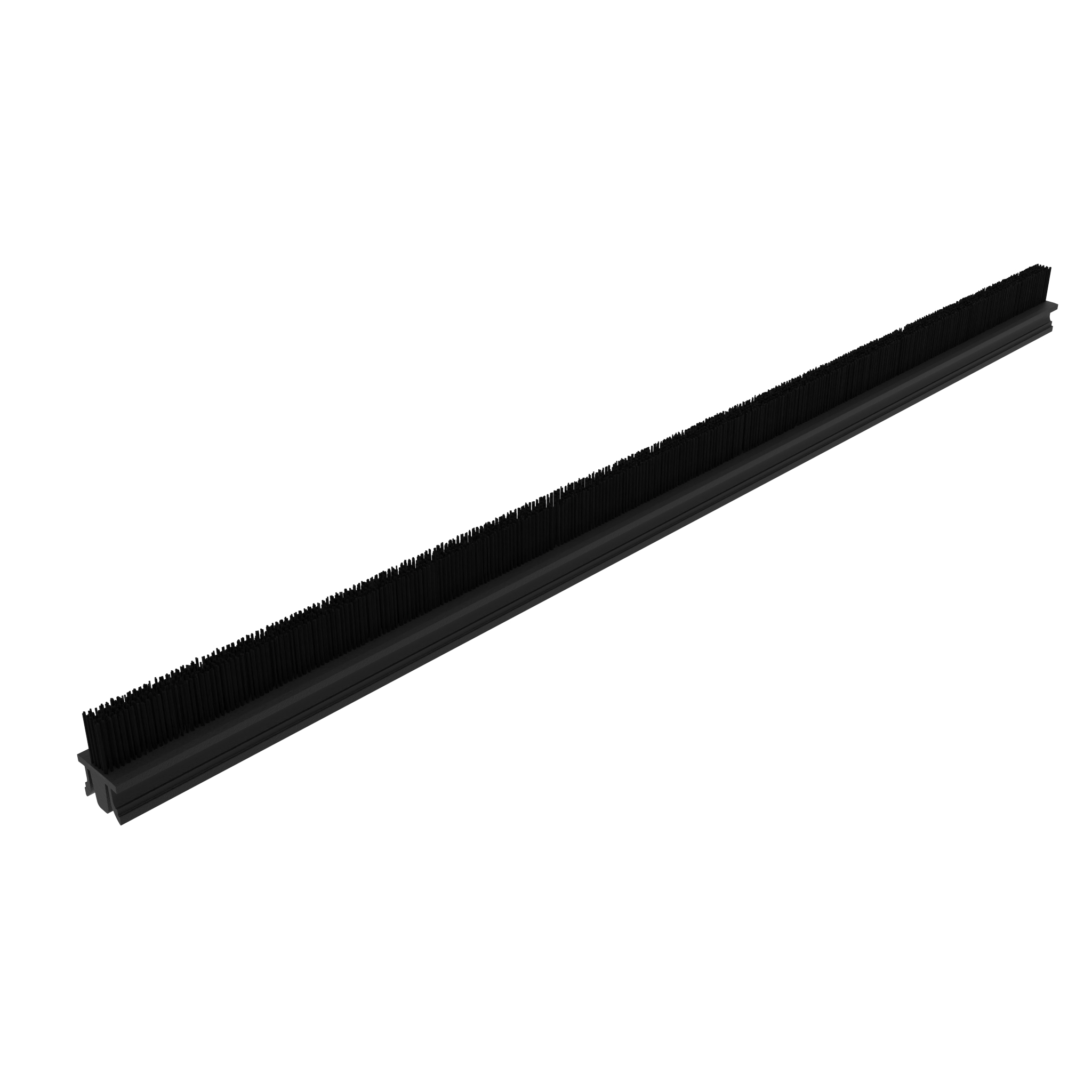

Strip Brush

Información sobre el producto "Strip Brush"

Color:
Body: Black
Bristles: Black

Países de Entrega:
En todo el mundo

Description:
To tighten, carry, clean, guide and fix

Material:
Body: Plastic ABS
Bristles: Plastic PA

Specials:
Other sizes (FH, ØFD), polyester PBT bristles for exterior and humid areas on request

Surface:
Bristle: Smooth

Zolltarifnummer:
96035000000
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Cantidad por Paquete: 20 m (20 piezas en 1 m)

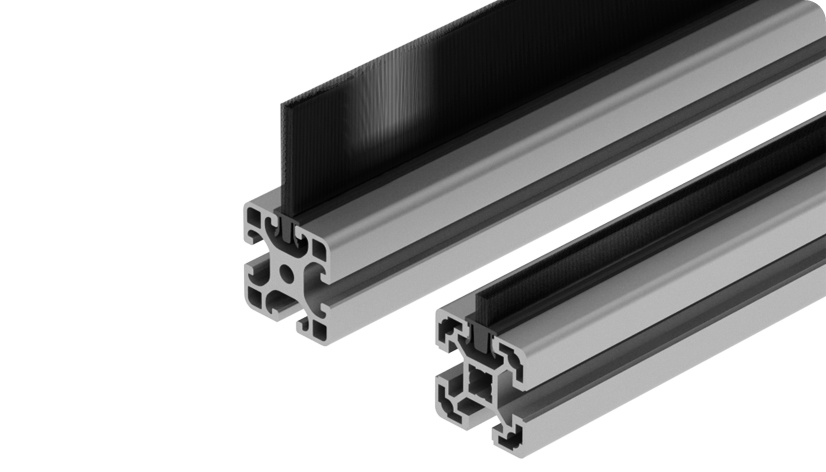

Fastening: Simply inserting into slot
Model: Plastic, slot 8, 10
Peso (g): 94.0

Variantes

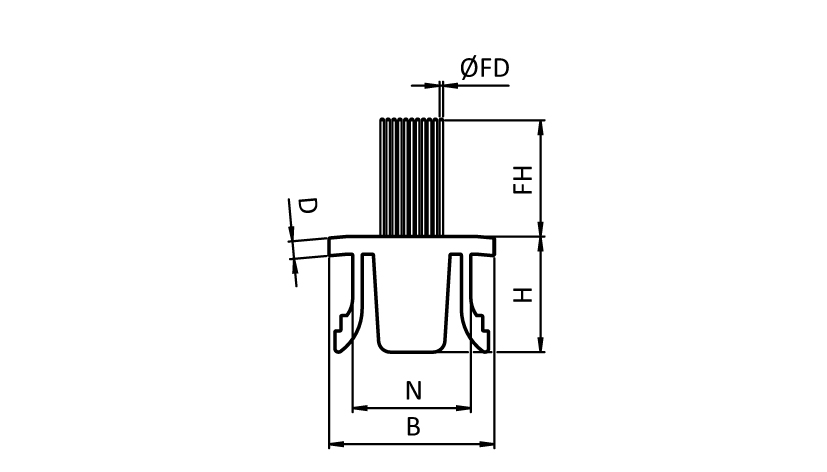

ID de producto H (mm) D (mm) ESD B (mm) FH (mm) ØFD (mm) Fig. Ranura N (mm)
093SB10N08 8.5 1.5 12.0 10.0 0.2 8
093SB10N10 9.8 1.5 14.0 10.0 0.2 10
093SB10N10ESD 9.8 1.5 Descarga electrostática ESD 14.0 10.0 0.2 10
093SB40N08 8.5 1.5 12.0 40.0 0.2 8
093SB40N08ESD 8.5 1.5 Descarga electrostática ESD 12.0 40.0 0.2 8
093SB40N10 9.8 1.5 14.0 40.0 0.2 10
