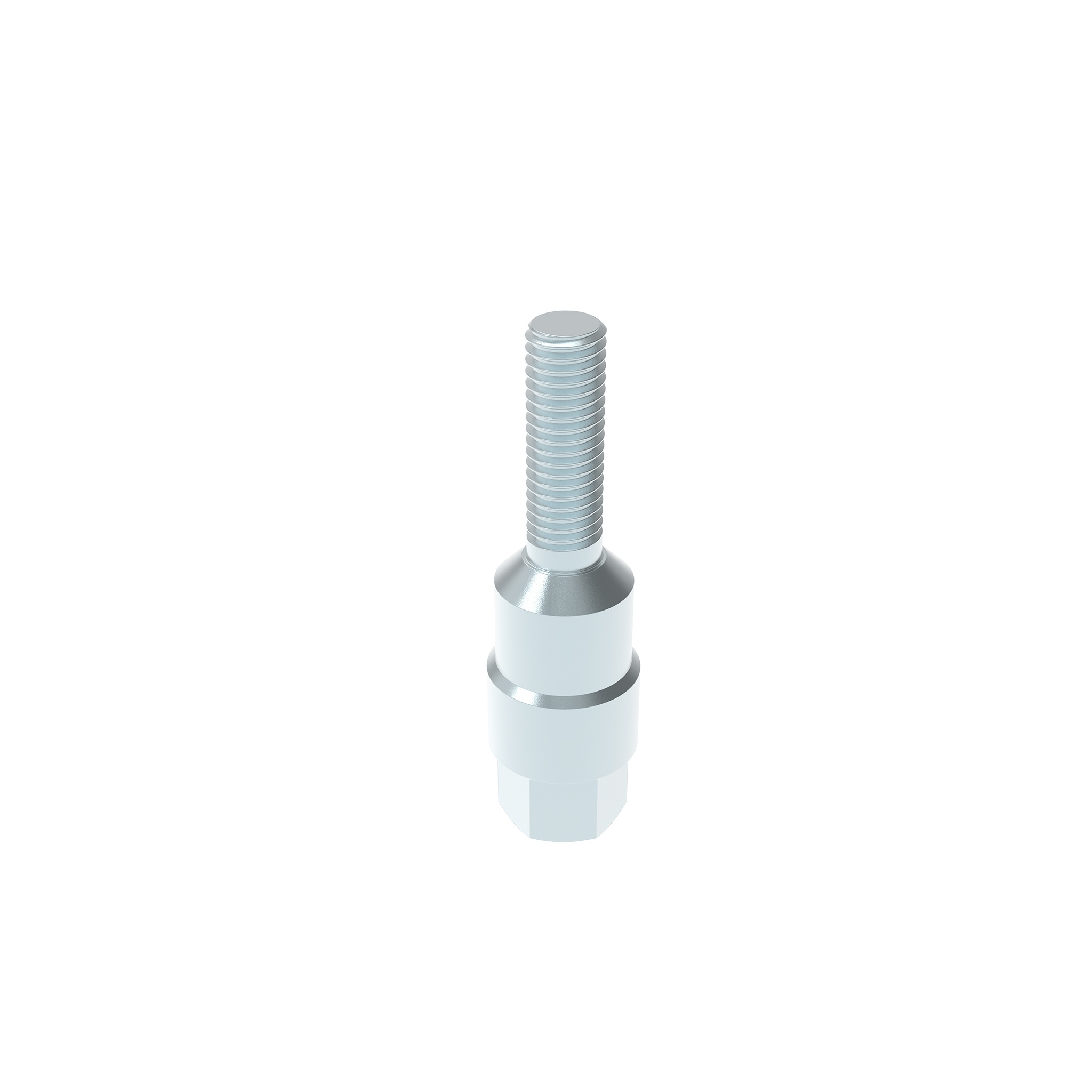

Threaded Connection Stud for Cube Connector
Precio normal:
0,00 €
Número de producto:
093GB60SI10A8SW13
Cantidad por paquete:
1 pieza
Descripción:

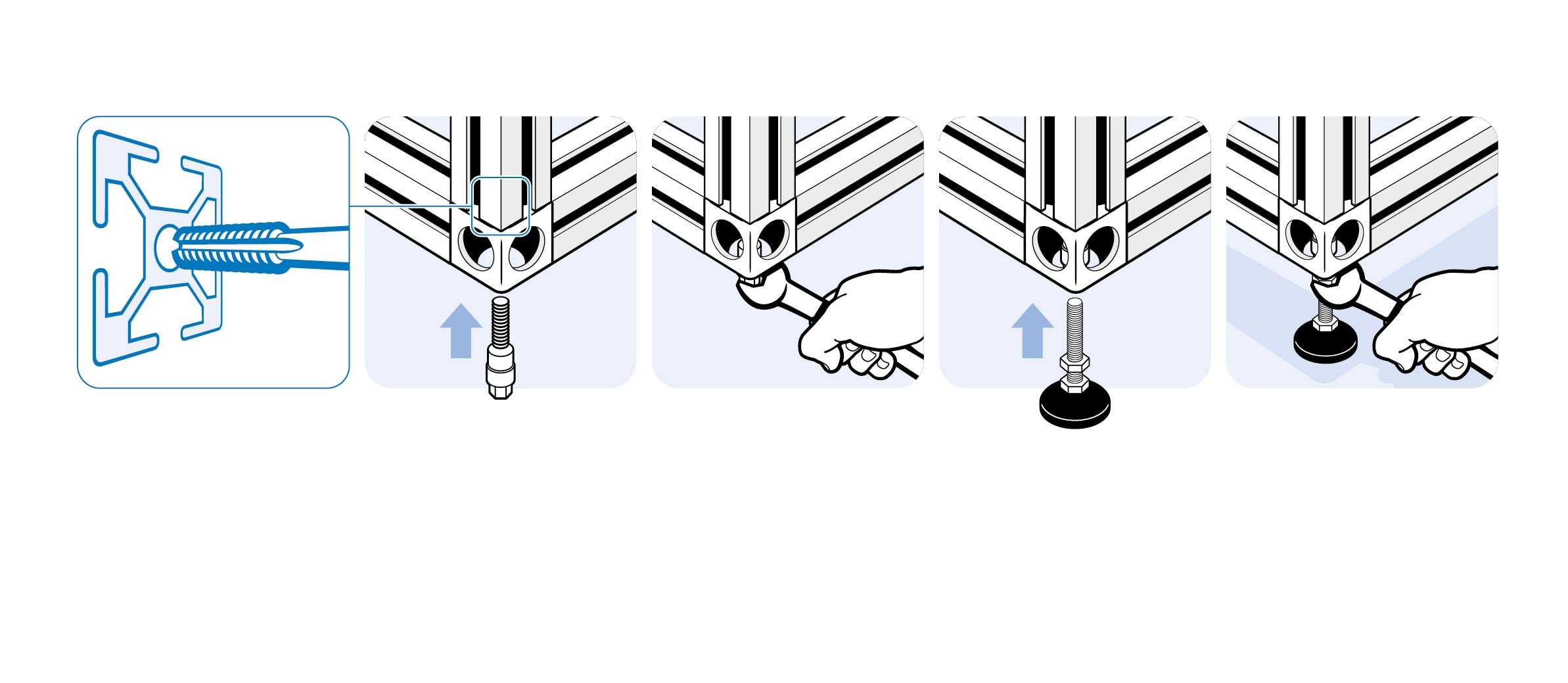

To mount cube connectors 2D or 3D and attach leveling feet or swivel and fixed castors at the same time
To mount cube connectors 2D or 3D and attach leveling feet or swivel and fixed castors at the same time
Material:
Acero
Superficie:
Galvanizado
Países de Entrega:
En todo el mundo
Acero
Superficie:
Galvanizado
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 1 pieza |
|---|---|
| Model: | Acero |
| Peso (g): | 44.0 |
| Numero de ERP: | 161659 |
Variantes

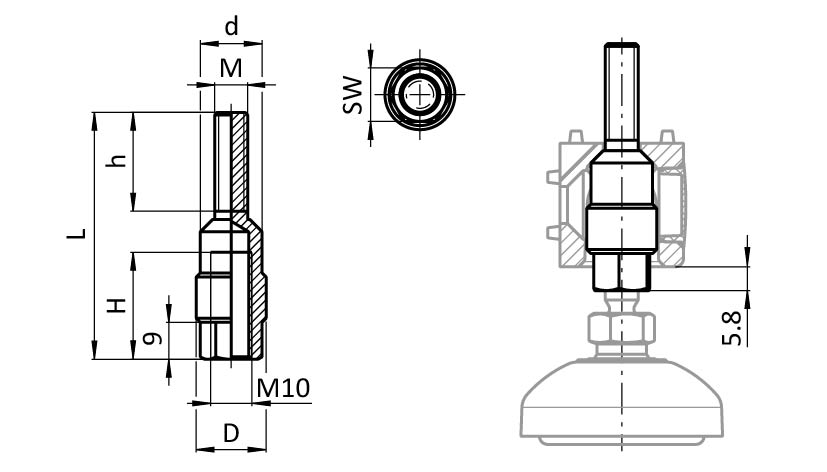

| Número de producto | SW (mm) | Version | H (mm) | Profile | L (mm) | h (mm) | M | Ød (mm) | Ranura N (mm) | ØD (mm) | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 | For cube connector B30 | 26.0 | B | 60.0 | 24.0 | M8 | 15.0 | 8 | 17.0 |
|
|
| 17 | For cube connector I40 | 30.0 | I | 72.0 | 28.0 | M8 | 15.0 | 8 | 23.0 |
|
|
| 19 | For cube connector B40 or B45 | 30.0 | B | 74.0 | 28.0 | M12 | 19.0 | 10 | 23.0 |
|
Clasificación
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360292
- ECLASS 12.0
- 23360292
- ECLASS 13.0
- 23360292
- Zolltarifnummer
- 73181595890
- Número de Arancel Aduanero de Exportación
- 73181595
Tags
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot size 8 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
