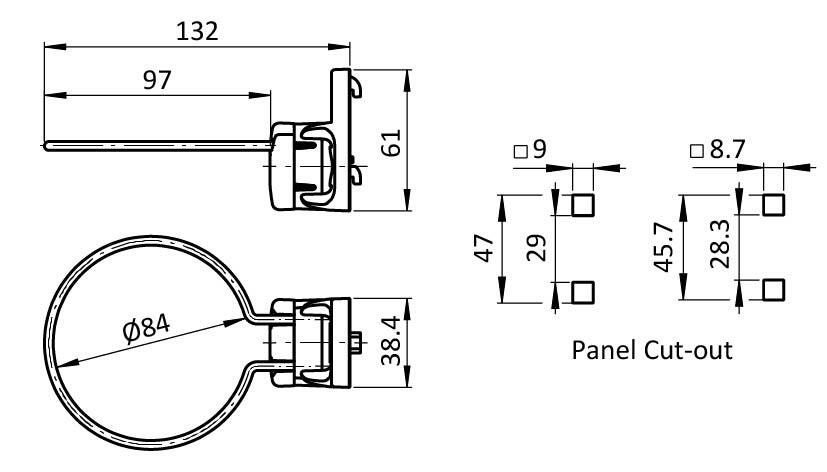

Tool Holder FX D80 for Square Holes 9 x 9 (8.7 x 8.7)
0,00 €

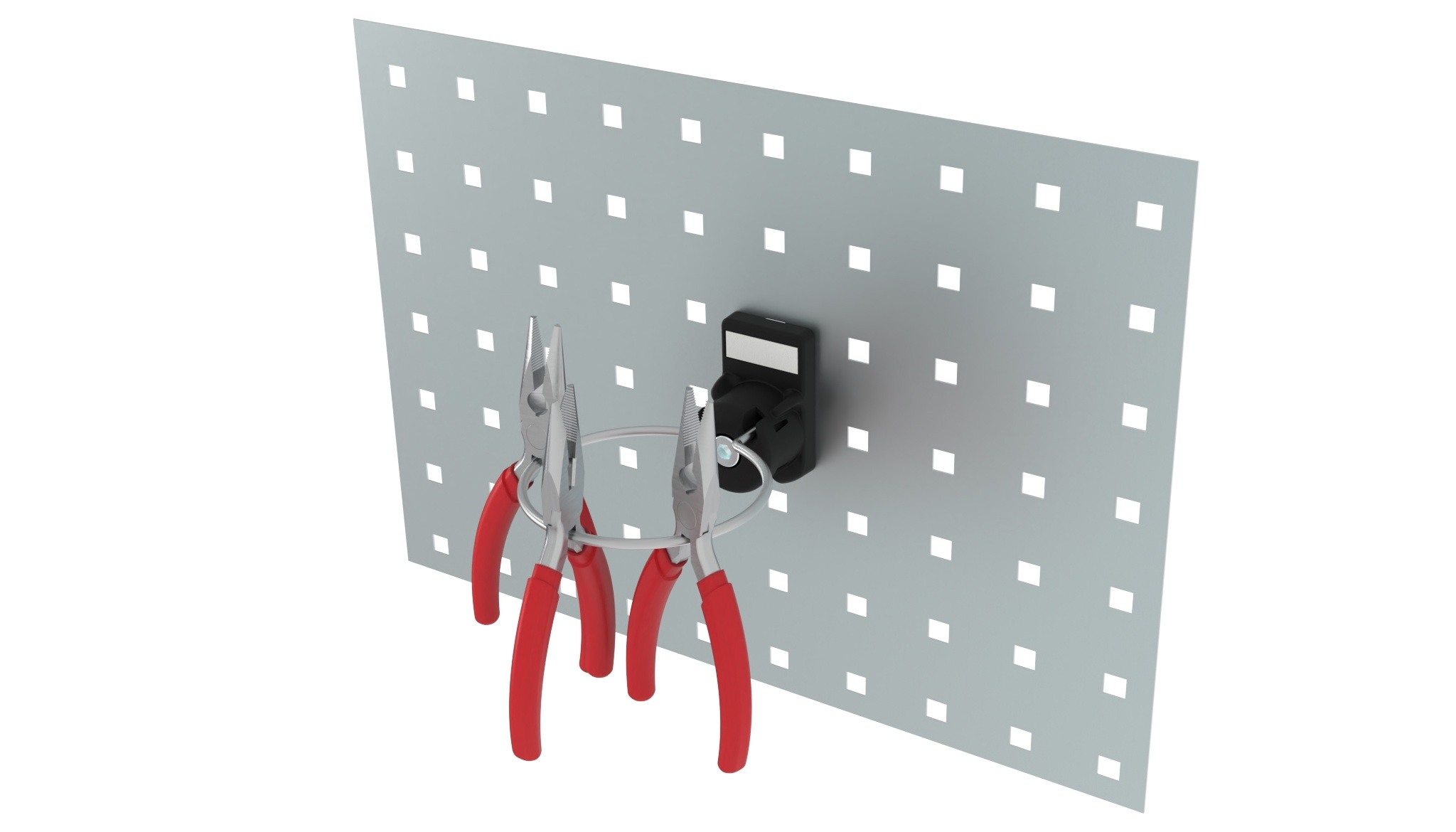

Ready to use tool holder ring with 80 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick;
To organize workstations, with labeling area for standard labels
Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon
Wire: Stainless steel SS304
Spring: Spring steel SS313
Screw: Steel
Nut: Steel
Surface:
Screw: Zinc plated
Nut: Zinc plated
Color:
Rear mounting holder: Black
Front locking holder: Black
Tip:
For profiles 40 / 45, slot 8 / 10 see 6TH240ND80S01
For round tubes D28 / D30 see 6TH2D283D80ESDS01
Specials:
Other colors on request,
For other sheet metal thicknesses on request
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 1 pieza |
|---|---|
| Model: | Pre-ensamblado |
| Peso (g): | 88.7 |
| Numero de ERP: | 160455 |
Retratos de productos
Clasificación
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360192
- ECLASS 12.0
- 23360192
- ECLASS 13.0
- 23360192
- Zolltarifnummer
- 83025000000
- Número de Arancel Aduanero de Exportación
- 83025000
Certificados
Accesorios adecuados
Description:Ready to use tool holder ring with 80 mm diameter, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fiber reinforcedSurface:Screw: Zinc plated Nut: Zinc platedColor:Holder: Black, gray Centering piece: BlackTip:For round tubes D28 / D30 see 6TH2D283D80ESDS01Especiales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Description:Ready to use tool holder ring with 80 mm diameter, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSurface:Screw: Zinc plated Nut: Zinc platedColor:Holder: BlackEspeciales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
