Tray Container 110 x 270 x 40 (Set)
0,00 €

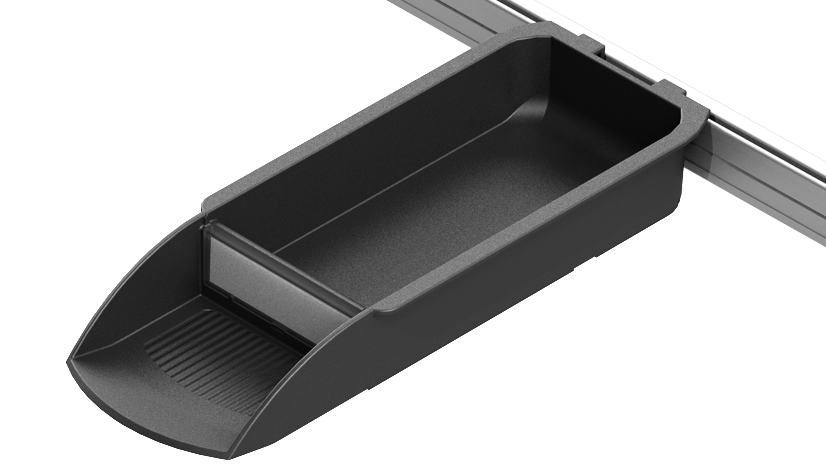

To store and provide small parts, with sorting area; simple assembly by swiveling into the suspension profile, optional adapter allows for horizontally pivoting fixation; the clearly visible label area enables secure parte identification; stackable
Tray container standard version: Plastic PA, glass fiber reinforced
Tray container ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
Label window: Plastic PC
Label: Carton 250 g/m²
Color:
Tray container: Black
Label window: Transparent (colorless)
Set:
1 tray container,
1 label window,
1 label
Tip:
Compatible Swivel Adapter for Profile Slot see 061MA2291NS01
Especiales:
Otros colores bajo pedido
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | For suspension profile |
| Peso (g): | 186.7 |
| Numero de ERP: | 139895 |
Clasificación
- ECLASS 6.0
- 21100421
- ECLASS 7.0
- 21100421
- ECLASS 8.0
- 21100421
- ECLASS 9.0
- 21100421
- ECLASS 10.0
- 21100421
- ECLASS 11.0
- 21102002
- ECLASS 12.0
- 21102002
- ECLASS 13.0
- 21102002
- Zolltarifnummer
- 39269097900
- Número de Arancel Aduanero de Exportación
- 39269097
Certificados
Accesorios adecuados
Description:To fix grab containers and grab trays on profile slots; with separate slot fixing for slot 8 and slot 10; pivotable in two directions up to 45°; with locking screw for enabling or disabling horizontal pivotingMaterial:Housing standard version: Plastic PA, glass fiber reinforced Housing ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Adapter standard version: Plastic PA, glass ball reinforced Adapter ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Centering pieces: Zinc die-cast Mounting material: SteelSurface:Centering pieces: Plain Mounting material: Zinc platedColor:Housing: Black Adapter: BlackTip:Compatible Grab Container see 061MGC2K291H; Compatible Tray Container see 061MGT2K291HEspeciales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
