Tuerca corredera giratoria doble 14.0 x 5.2 mm (Juego)

Información sobre el producto "Tuerca corredera giratoria doble 14.0 x 5.2 mm (Juego)"

Países de Entrega:
En todo el mundo

Description:

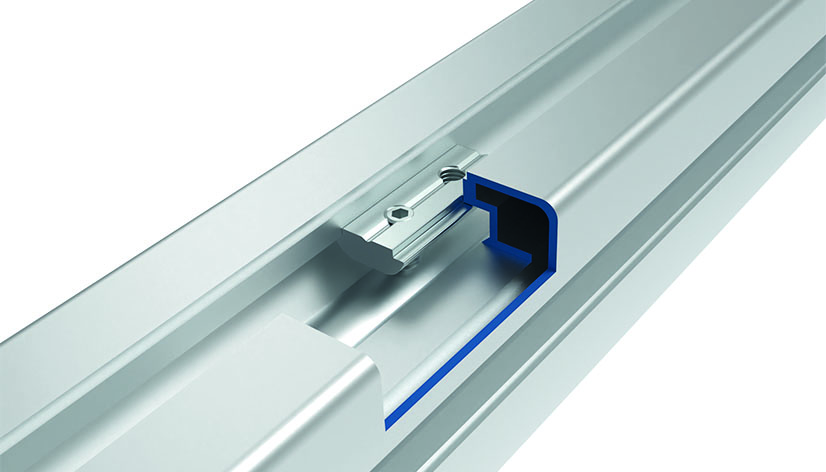

Roll-in double T-slot nut, incl. 1 hexagon socket set screw for shake-proof fixation in all positions

Material:
Double T-slot nut: Steel
Hexagon socket set screw: Steel

Set:
1 roll-in double T-slot nut 14.0 x 5.2 mm
1 hexagon socket set screw DIN EN ISO 4029 (DIN 916) - M5 x 30

Surface:
Double T-slot nut: Zinc-plated
Hexagon socket set screw: Zinc-plated
Model: Slot 10, self-aligning, steel
Número de Arancel Aduanero de Exportación: 73181900
Peso (g): 13.0
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Numero de ERP: 119042
Zolltarifnummer: 73181900900

Variantes

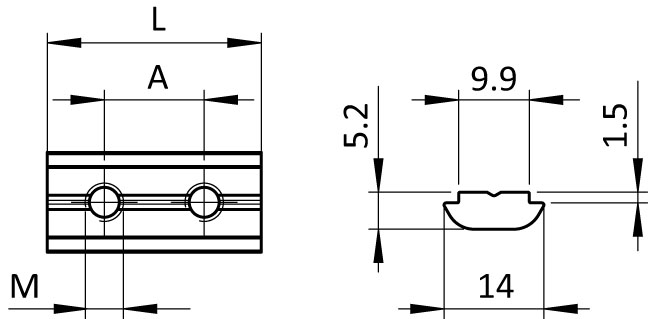

Número de producto A (mm) L (mm) M Profile Cantidad por Paquete
096160S03 14.0 30.0 M5 B 100 piezas
