Uni Block 18 CS, Black

Información sobre el producto "Uni Block 18 CS, Black"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:

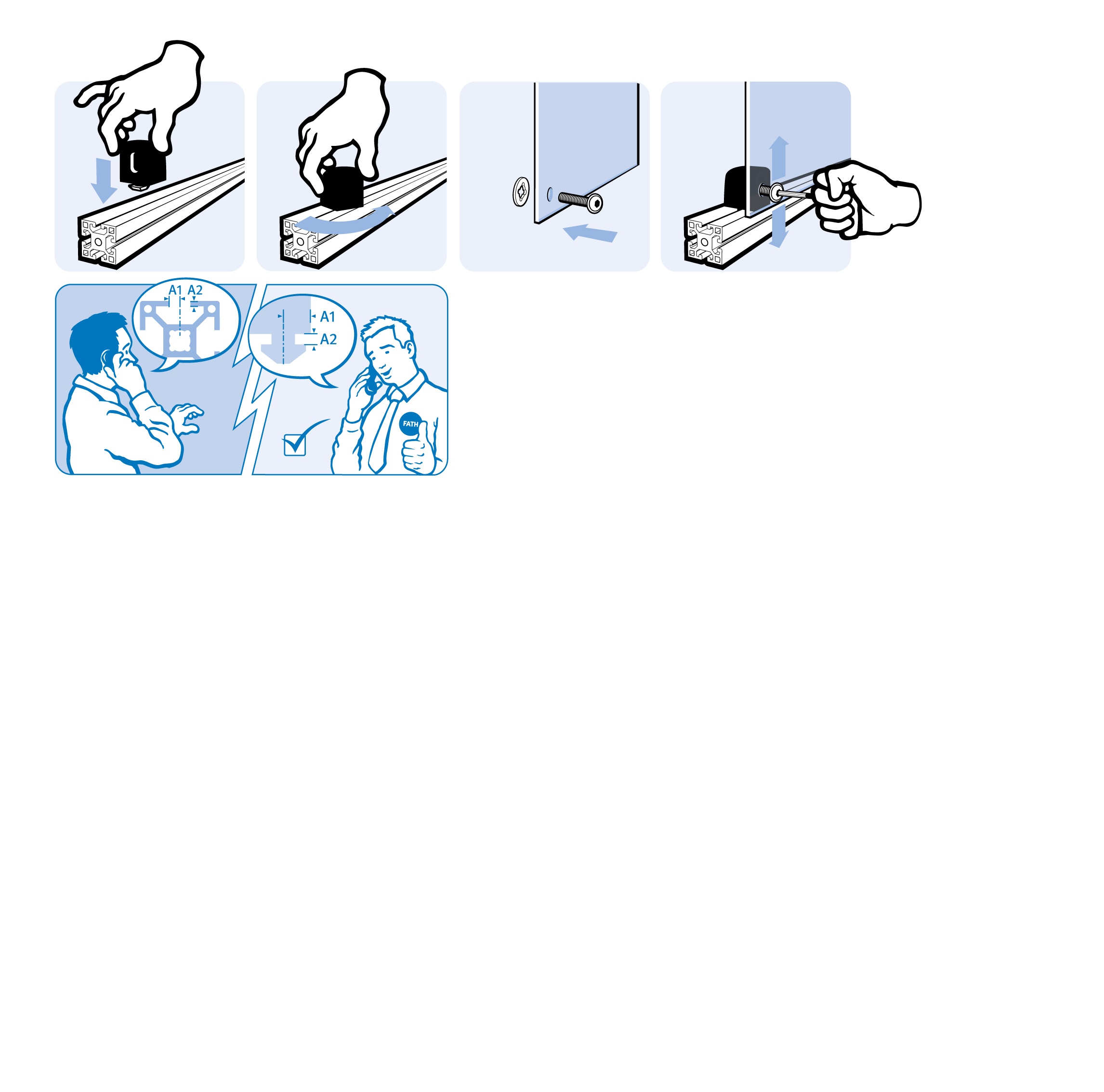

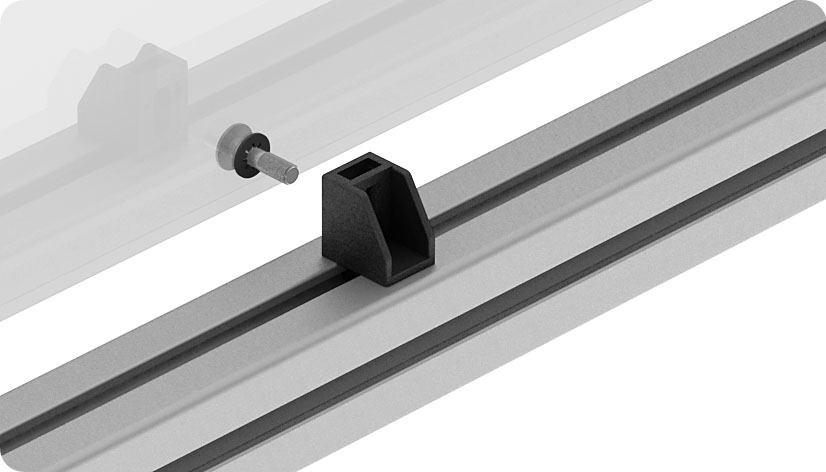

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102CS

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Cantidad por Paquete: 100 piezas
Cantidad por Paquete (1): 25
Model: With screw retainer
Peso (g): 9.0

Variantes

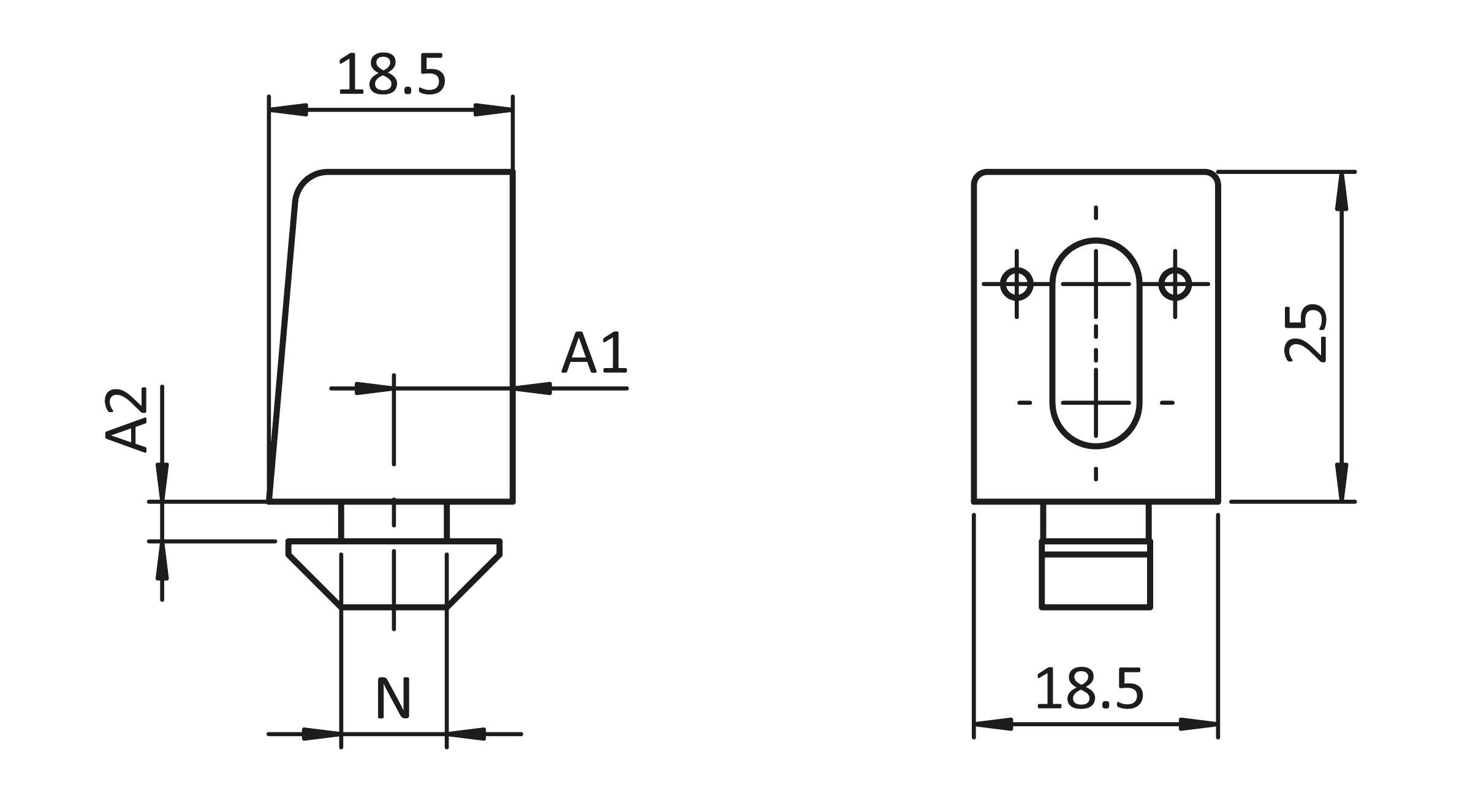

ID de producto Color M D (mm) A1 (mm) Profile Ranura N (mm) A2 (Profile) (mm)
094002CSM6 M6 7.0 B 8 1.9 (2.2)
094100CSM6 M6 7.0 I 6 2.7 (3.0)
094102CS - 1 Negro *2.0
094103CS - 1 Negro 3.0
094105CS - 1 Negro 5.0
