Uni Block 25, Gray
Número de producto:
094080M6S01
Información sobre el producto "Uni Block 25, Gray"
Color:
PA, gris
Países de Entrega:
En todo el mundo
Description:

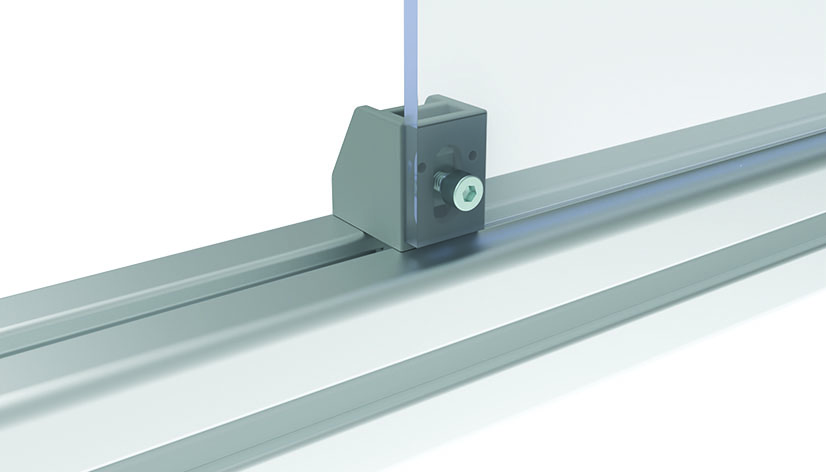

To attach panels easily to aluminum profiles
Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
Specials:
Customized hammer, other colors on request
Tip:
Compatible Spacer see 094102S10
Zolltarifnummer:
39269097900
PA, gris
Países de Entrega:
En todo el mundo
Description:
To attach panels easily to aluminum profiles
Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel
Specials:
Customized hammer, other colors on request
Tip:
Compatible Spacer see 094102S10
Zolltarifnummer:
39269097900
| (ECLASS 6.0): | 23369290 |
|---|---|
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360492 |
| (ECLASS 12.0): | 23360492 |
| (ECLASS 13.0): | 23360492 |
| Cantidad por Paquete: | 100 piezas |
| Model: | Plastic PA, Slot 8, 10 |
| Peso (g): | 9.8 |
Variantes

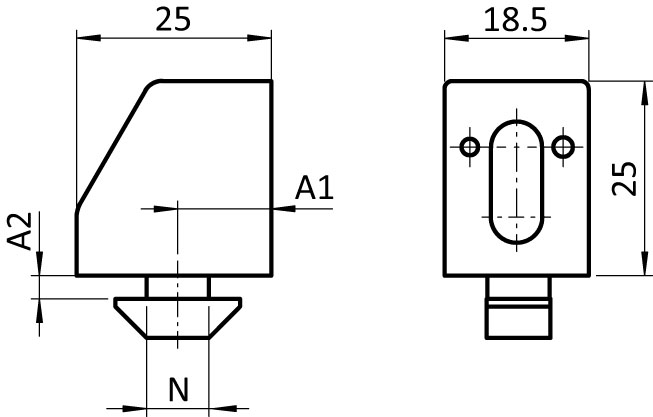

| ID de producto | Profile | Fig. | D (mm) | Ranura N (mm) | Color | M | A2 (Profile) (mm) | A1 (mm) |
|---|---|---|---|---|---|---|---|---|
| 094003M4S01 | I | 8 | Gris ≈ RAL 7042 | M4 | 4.35 (4.5) | 8.0 | ||
| 094003M5S01 | I | 8 | Gris ≈ RAL 7042 | M5 | 4.35 (4.5) | 8.0 | ||
| 094003M6S01 | I | 8 | Gris ≈ RAL 7042 | M6 | 4.35 (4.5) | 8.0 | ||
| 094004M4S01 | B | 10 | Gris ≈ RAL 7004 | M4 | 5.6 (6.0) | 9.5 | ||
| 094004M5S01 | B | 10 | Gris ≈ RAL 7004 | M5 | 5.6 (6.0) | 9.5 | ||
| 094004M6S02 | B | 10 | Gris ≈ RAL 7004 | M6 | 5.6 (6.0) | 9.5 | ||
| 094005M4S01 | B | 10 | Gris ≈ RAL 7004 | M4 | 6.0 (6.0) | 14.0 | ||
| 094005M5S01 | B | 10 | Gris ≈ RAL 7004 | M5 | 6.0 (6.0) | 14.0 | ||
| 094005M6S06 | B | 10 | Gris ≈ RAL 7004 | M6 | 6.0 (6.0) | 14.0 | ||
| 094008M4S01 | B | 10 | Gris ≈ RAL 7004 | M4 | 5.7 (6.0) | 8.5 | ||
| 094008M5S01 | B | 10 | Gris ≈ RAL 7004 | M5 | 5.7 (6.0) | 8.5 | ||
| 094008M6S03 | B | 10 | Gris ≈ RAL 7004 | M6 | 5.7 (6.0) | 8.5 | ||
| 094020M4S01 | I | 8 | Gris ≈ RAL 7042 | M4 | 4.4 (4.5) | 12.0 | ||
| 094020M5S01 | I | 8 | Gris ≈ RAL 7042 | M5 | 4.4 (4.5) | 12.0 | ||
| 094020M6S04 | I | 8 | Gris ≈ RAL 7042 | M6 | 4.4 (4.5) | 12.0 | ||
| 094080M4S01 | I | 8 | Gris ≈ RAL 7042 | M4 | 4.6 (4.5) | 14.0 | ||
| 094080M5S01 | I | 8 | Gris ≈ RAL 7042 | M5 | 4.6 (4.5) | 14.0 | ||
| 094080M6S01 | I | 8 | Gris ≈ RAL 7042 | M6 | 4.6 (4.5) | 14.0 | ||
| 094102S10 - 1 | ② | *2.0 | Gris ≈ RAL 7042 | |||||
| 094102S11 - 1 | ① | *2.0 | Gris ≈ RAL 7004 | |||||
| 094103S11 - 1 | ② | 3.0 | Gris ≈ RAL 7042 | |||||
| 094103S12 - 1 | ① | 3.0 | Gris ≈ RAL 7004 | |||||
| 094105S11 - 1 | ② | 5.0 | Gris ≈ RAL 7042 | |||||
| 094105S12 - 1 | ① | 5.0 | Gris ≈ RAL 7004 |
